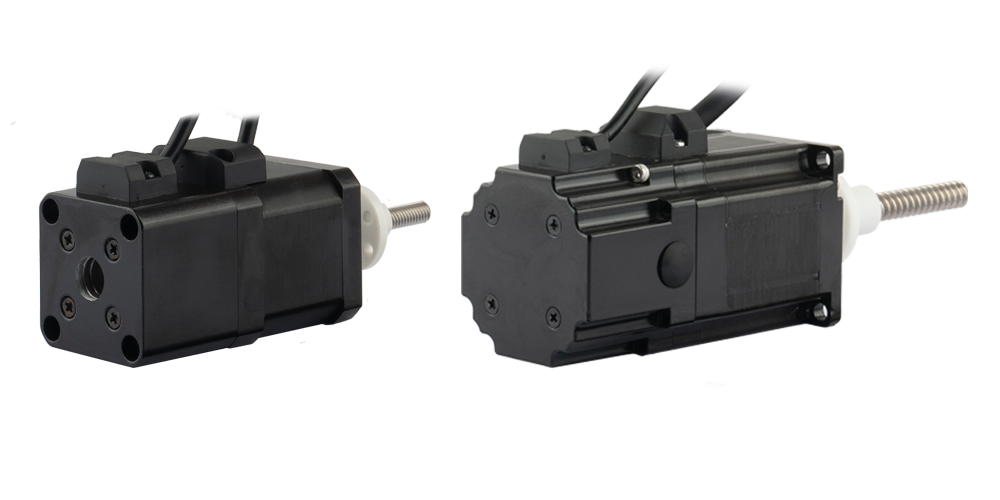

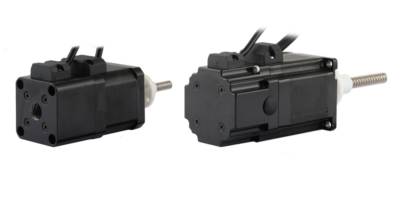

KOCO MOTION’s power-off Brakes provide secure holding and emergency stopping for motors in vertical, safety-critical, or power-loss applications. Compatible with NEMA 8, 11, 14, 17, 23, 24, and 34 motor sizes, these 24VDC magnetic brakes deliver reliable performance with hold torques from 0.06Nm to 5Nm, low noise (<60dB), and up to 500,000 cycles lifetime for dependable motion control and machine safety.
| Parameter | Unit | 0.5Nm for Size 17 Motor | 2.3Nm for Size 23 Motor | 2.3Nm for Size 24 Motor | 5.0Nm for Size 34 Motor |
|---|---|---|---|---|---|
| Rated Voltage | VDC | 24 +/- 5% | 24 +/- 5% | 24 +/- 5% | 24 +/- 5% |
| Gyration Gap | ° | 1 | 1 | 1 | 1 |
| Emergency Brake Cycles | cycles | 200 | 200 | 200 | 200 |
| Lifetime | cycles | 500000 | 500000 | 500000 | 500000 |
| Noise Level | dB | <60 | <60 | <60 | <60 |
| Resistance | Ω | 145 +/- 10% | 141 +/- 10% | 141 +/- 10% | 69 +/- 10% |
| Power Consumption | W | 5 | 5 | 5 | 12 |
| Hold Torque | Nm | >0.5 | >2.3 | >2.3 | >5 |
| Insulation Class | B | B | B | B | |
| Insulation Resistance (@500VDC) | MΩ | >100 | >100 | >100 | >100 |
| Dielectrical Strength (for 1s) | VAC | 1000 | 1000 | 1000 | 1000 |
| Retraction Time | ms | 50 | 50 | 50 | 50 |
| Release Time | ms | 50 | 50 | 30 | 50 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 0.5Nm for Size 17 Motor |
|---|---|---|
| Rated Voltage | VDC | 24 +/- 5% |
| Gyration Gap | ° | 1 |
| Emergency Brake Cycles | cycles | 200 |
| Lifetime | cycles | 500000 |
| Noise Level | dB | <60 |
| Resistance | Ω | 145 +/- 10% |
| Power Consumption | W | 5 |
| Hold Torque | Nm | >0.5 |
| Insulation Class | B | |
| Insulation Resistance (@500VDC) | MΩ | >100 |
| Dielectrical Strength (for 1s) | VAC | 1000 |
| Retraction Time | ms | 50 |
| Release Time | ms | 50 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 2.3Nm for Size 23 Motor |
|---|---|---|
| Rated Voltage | VDC | 24 +/- 5% |
| Gyration Gap | ° | 1 |
| Emergency Brake Cycles | cycles | 200 |
| Lifetime | cycles | 500000 |
| Noise Level | dB | <60 |
| Resistance | Ω | 141 +/- 10% |
| Power Consumption | W | 5 |
| Hold Torque | Nm | >2.3 |
| Insulation Class | B | |
| Insulation Resistance (@500VDC) | MΩ | >100 |
| Dielectrical Strength (for 1s) | VAC | 1000 |
| Retraction Time | ms | 50 |
| Release Time | ms | 50 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 2.3Nm for Size 24 Motor |
|---|---|---|
| Rated Voltage | VDC | 24 +/- 5% |
| Gyration Gap | ° | 1 |
| Emergency Brake Cycles | cycles | 200 |
| Lifetime | cycles | 500000 |
| Noise Level | dB | <60 |
| Resistance | Ω | 141 +/- 10% |
| Power Consumption | W | 5 |
| Hold Torque | Nm | >2.3 |
| Insulation Class | B | |
| Insulation Resistance (@500VDC) | MΩ | >100 |
| Dielectrical Strength (for 1s) | VAC | 1000 |
| Retraction Time | ms | 50 |
| Release Time | ms | 30 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 5.0Nm for Size 34 Motor |
|---|---|---|
| Rated Voltage | VDC | 24 +/- 5% |
| Gyration Gap | ° | 1 |
| Emergency Brake Cycles | cycles | 200 |
| Lifetime | cycles | 500000 |
| Noise Level | dB | <60 |
| Resistance | Ω | 69 +/- 10% |
| Power Consumption | W | 12 |
| Hold Torque | Nm | >5 |
| Insulation Class | B | |
| Insulation Resistance (@500VDC) | MΩ | >100 |
| Dielectrical Strength (for 1s) | VAC | 1000 |
| Retraction Time | ms | 50 |
| Release Time | ms | 50 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
