Name: Integrated Stepper Electronics 1 - KOCO MOTION
SKU: Integrated Stepper Electronics 1

Specifications

Parameter	Unit	DS-OL42-IPD/IRS4	DS-OL42-ICAO	DS-CL28-SA	DS-CL42-SA
Adapted Motor		Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A	Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A	Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A	Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A
Power Supply	V	DC 24~36	DC 24~36	DC 24~36	DC 24~36
Output Current	A	0.5 – 3.0	0.5 – 3.0	0.5 – 3.0	0.5 – 3.0
Drive Method		Full-bridge bipolar PWM	Full-bridge bipolar PWM	Full-bridge bipolar PWM	Full-bridge bipolar PWM
Initialization Time		2s	2s	2s	2s
Input Signal		Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA	Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA	Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA	Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA
Input Signal		Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA	Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA	Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA	Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA
Output Signals		Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA	Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA	Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA	Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA

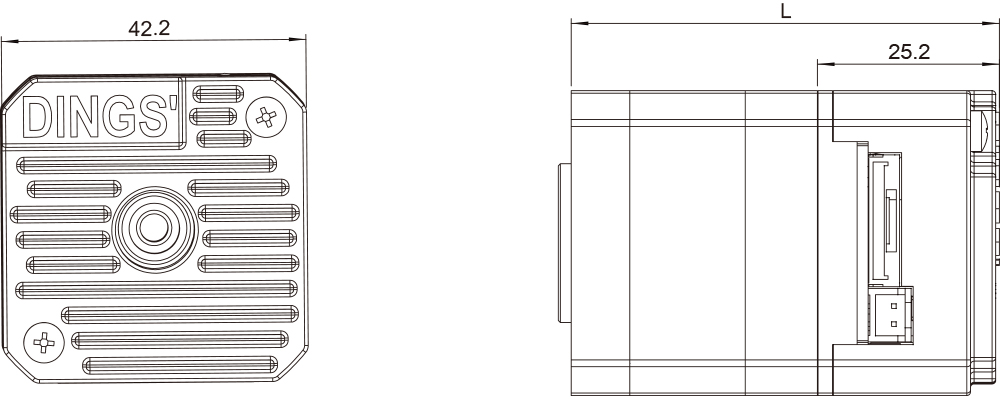

Size	mm	42.2 x 42.2 x 25.2	42.2 x 42.2 x 25.2	42.2 x 42.2 x 25.2	42.2 x 42.2 x 25.2
Weight	g	About 60	About 60	About 60	About 60
Operating temperature/Pulse Signal		Avoid dust, oil mist and corrosive gas	Avoid dust, oil mist and corrosive gas	Avoid dust, oil mist and corrosive gas	Avoid dust, oil mist and corrosive gas
Humidity		<85% RH, no condensation	<85% RH, no condensation	<85% RH, no condensation	<85% RH, no condensation
Temperature	°C	0 ~ 40	0 ~ 40	0 ~ 40	0 ~ 40
Heat Dissipation		Install in a ventilated environment	Install in a ventilated environment	Install in a ventilated environment	Install in a ventilated environment

Features

DS-OL42-IPD/IRS4

Input power：DC 24-36V Output rated current (peak value) ：0.5~3.0A/Phase Pulse, RS485 control, support MODBUS RTU communication protocol Through hole type of Integrated Driver compatible DINGS’ NEMA Size 17 step motor is diameter less than 11mm. Input & Output 2 high speed input 2 general input 1 general output

DS-OL42-ICAO

Input power：DC 24-36V Output rated current (peak value): 0.5~3.0A/phase Support CANopen communication protocol，Support control mode PP,PV, HM Through hole type of Integrated Driver compatible DINGS’ NEMA Size 17 step motor is diameter less than 11mm. Input and Output is 4 general input and 1 universal output

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

Get in touch with us

info@kocomotion.de

Product

Quantity

Company(Required)

Phone

Name

E-Mail(Required)

Adress

Message

CAPTCHA

Phone

This field is for validation purposes and should be left unchanged.

Specifications

Parameter	Unit	DS-OL42-IPD/IRS4
Adapted Motor		Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A
Power Supply	V	DC 24~36
Output Current	A	0.5 – 3.0
Drive Method		Full-bridge bipolar PWM
Initialization Time		2s
Input Signal		Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA
Input Signal		Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 5 – 8 mA
Output Signals		Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA
Size	mm	42.2 x 42.2 x 25.2
Weight	g	About 60
Operating temperature/Pulse Signal		Avoid dust, oil mist and corrosive gas
Humidity		<85% RH, no condensation
Temperature	°C	0 ~ 40
Heat Dissipation		Install in a ventilated environment

Features

DS-OL42-IPD/IRS4

Input power：DC 24-36V Output rated current (peak value) ：0.5~3.0A/Phase Pulse, RS485 control, support MODBUS RTU communication protocol Through hole type of Integrated Driver compatible DINGS’ NEMA Size 17 step motor is diameter less than 11mm. Input & Output 2 high speed input 2 general input 1 general output

DS-OL42-ICAO

Input power：DC 24-36V Output rated current (peak value): 0.5~3.0A/phase Support CANopen communication protocol，Support control mode PP,PV, HM Through hole type of Integrated Driver compatible DINGS’ NEMA Size 17 step motor is diameter less than 11mm. Input and Output is 4 general input and 1 universal output

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

DS-OL42-IPD/IRS4
