Description
Integrated Open Loop – CANOpen

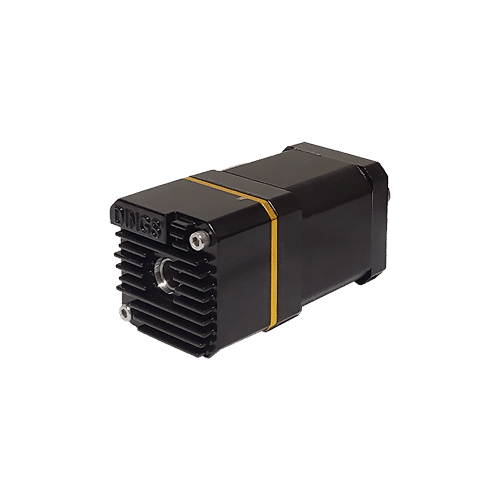

DS-OL42-ICAO
incl. 19% VAT
https://www.dingsmotion.com/downloads/downloads.php?idx=61
| Specification | DS-OL42-ICAO |
|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A |
| Power Supply | DC 24~36 V |
| Output Current | 0.5 – 3.0 A |
| Drive Method | Full-bridge bipolar PWM |
| Initialization Time | 2s |
| Input Signal | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 6 – 15 mA |
| Input Signal | – |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA |

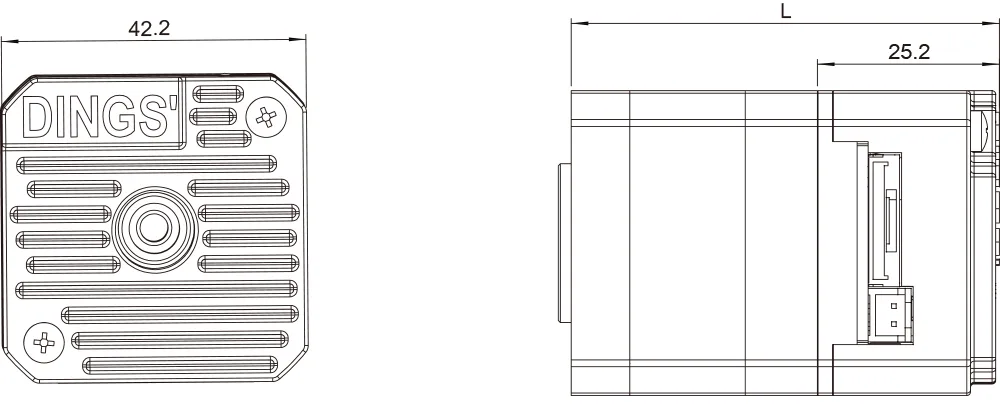

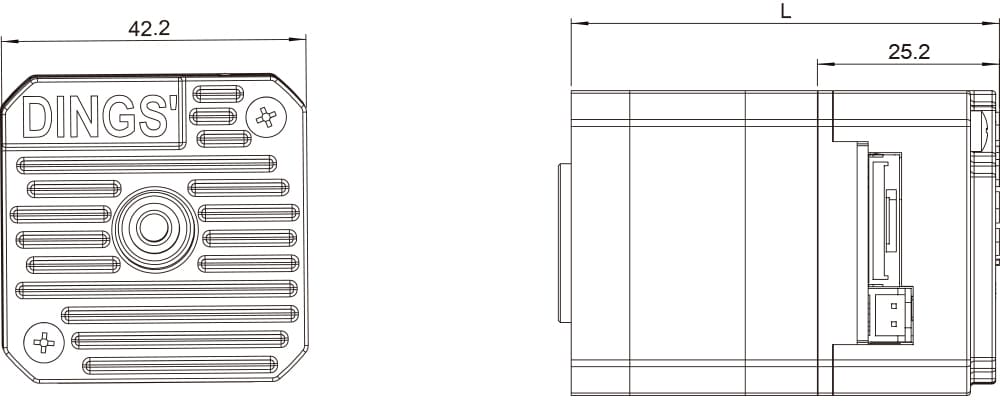

| Size | 42.2 x 42.2 x 25.2 mm |
| Weight | About 60 g |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas |
| Humidity | <85% RH, no condensation |
| Temperature | 0 ~ 40 °C |
| Heat Dissipation | Install in a ventilated environment |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
