Motor Characteristics
| Parameter | Unit | 8N2105 | 8N2205 |
|---|---|---|---|
| Rated voltage | V | 2.5 | 4.4 |
| Current | A | 0.5 | 0.5 |
| Winding resistance | Ω | 5.1 | 8.8 |
| Inductance | mH | 1.5 | 2.7 |
| Lead Wire No. | 4 | 4 | |
| Motor length | mm | 27.2 | 38.1 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Lead Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 20 mm | 27.2 mm | 8N2105 | 6 mm | AB | 1 mm | 25 N | 13 N |
| 20 mm | 27.2 mm | 8N2105 | 6 mm | G | 2 mm | 21 N | 11 N |
| 20 mm | 27.2 mm | 8N2105 | 6 mm | M | 4 mm | 11 N | 6 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | AB | 1 mm | 50 N | 25 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | G | 2 mm | 36 N | 18 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | M | 4 mm | 32 N | 16 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

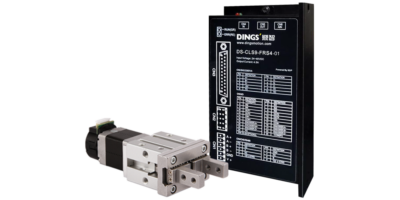

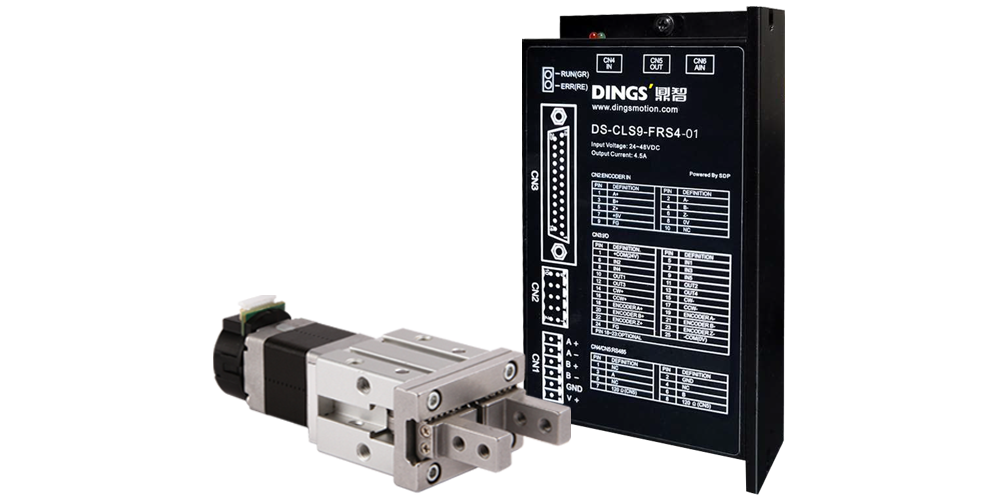

Gripper – Size 20mm
PDF Downloads
| Parameter | Unit | 8N2105 |
|---|---|---|
| Rated voltage | V | 2.5 |
| Current | A | 0.5 |
| Winding resistance | Ω | 5.1 |
| Inductance | mH | 1.5 |
| Lead Wire No. | 4 | |
| Motor length | mm | 27.2 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Lead Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 20 mm | 27.2 mm | 8N2105 | 6 mm | AB | 1 mm | 25 N | 13 N |
| 20 mm | 27.2 mm | 8N2105 | 6 mm | G | 2 mm | 21 N | 11 N |
| 20 mm | 27.2 mm | 8N2105 | 6 mm | M | 4 mm | 11 N | 6 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | AB | 1 mm | 50 N | 25 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | G | 2 mm | 36 N | 18 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | M | 4 mm | 32 N | 16 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | 8N2205 |
|---|---|---|
| Rated voltage | V | 4.4 |
| Current | A | 0.5 |
| Winding resistance | Ω | 8.8 |
| Inductance | mH | 2.7 |
| Lead Wire No. | 4 | |
| Motor length | mm | 38.1 |
Gripping Force
| Motor Size | Body Length | Part Code | Stroke | Lead Code | Lead | Max. Gripping Force | Rec. Gripping Force |
|---|---|---|---|---|---|---|---|
| 20 mm | 27.2 mm | 8N2105 | 6 mm | AB | 1 mm | 25 N | 13 N |
| 20 mm | 27.2 mm | 8N2105 | 6 mm | G | 2 mm | 21 N | 11 N |
| 20 mm | 27.2 mm | 8N2105 | 6 mm | M | 4 mm | 11 N | 6 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | AB | 1 mm | 50 N | 25 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | G | 2 mm | 36 N | 18 N |
| 20 mm | 38.1 mm | 8N2205 | 6 mm | M | 4 mm | 32 N | 16 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
