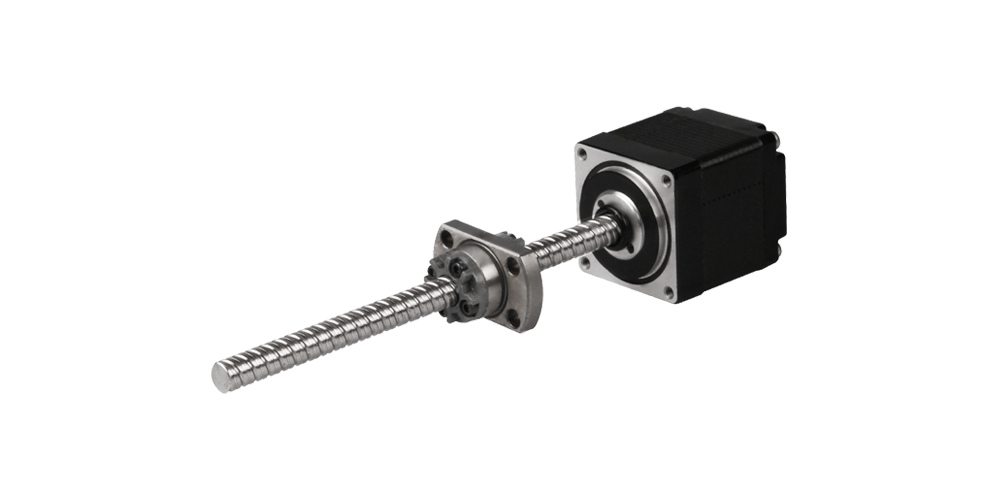

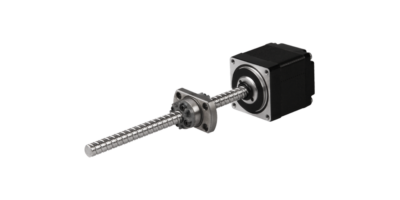

The SBSLA Size 11 (28mm) External Stepper Ball Screw Linear Actuator combines compact form with high-precision motion. Featuring C7-grade ball screws (0601/0602/0606/0610/0504), robust SCM415H construction, and options for encoder feedback, power-off brake, and various screw end machinations, this actuator is ideal for demanding positioning applications in automation, lab equipment, and miniature machinery.
| Parameter | Unit | 11E2110 | 11E2209 |
|---|---|---|---|
| Size | Nema | 11 | 11 |
| Flange size | mm | 28 | 28 |
| Voltage | V | 2.1 | 3.9 |
| Current | A | 1 | 0.95 |
| Resistance | Ω | 2.1 | 4.1 |
| Inductance | mH | 1.5 | 4 |
| Motor Length | mm | 33.35 | 45 |
| Lead Wire No. | 4 | 4 |
| Ball screw type | 0601 | 0602 | 0606 | 0610 | 0504 |
|---|---|---|---|---|---|
| Ball size | Ø0.8 | Ø0.8 | Ø0.8 | Ø1.2 | Ø0.8 |
| Number of threads | 1 | 1 | 2 | 2 | 1 |
| Thread direction | Right | Right | Right | Right | Right |
| Shaft root dia. | Ø5.3 | Ø5.1 | Ø5.2 | Ø5.0 | Ø4.3 |
| Number of circuits | 3.7×1 | 2.7×1 | 1.6×2 | 1.2×2 | 2.7×1 |
| Shaft nut material | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H |
| Surface hardness | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 |
| Anti-rust treatment | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil |
| Grade | C7 | C7 | C7 | C7 | C7 |
| Nut size | A | B | C | D | H | W | X | E | Axial play | Dynamic load [N] | Static load [N] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS0601 | 24 | 3.5 | 15 | 12 | 16 | 18 | 3.4 | ≤0.02 | 680 | 1200 | |
| BS0602 | 29 | 4 | 17 | 15 | 19 | 22 | 3.4 | ≤0.02 | 880 | 1500 | |
| BS0606 | 27 | 4 | 17.2 | 14 | 16 | 21 | 3.4 | 5.2 | ≤0.02 | 870 | 1450 |
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Number of threads |
|---|---|---|---|---|
| 0601 | 1 | 6 | 5 | 1 |
| 0602 | 2 | 6 | 10 | 1 |
| 0606 | 6 | 6 | 30 | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 11E2110 |
|---|---|---|
| Size | Nema | 11 |
| Flange size | mm | 28 |
| Voltage | V | 2.1 |
| Current | A | 1 |
| Resistance | Ω | 2.1 |
| Inductance | mH | 1.5 |
| Motor Length | mm | 33.35 |
| Lead Wire No. | 4 |
| Ball screw type | 0601 | 0602 | 0606 | 0610 | 0504 |
|---|---|---|---|---|---|
| Ball size | Ø0.8 | Ø0.8 | Ø0.8 | Ø1.2 | Ø0.8 |
| Number of threads | 1 | 1 | 2 | 2 | 1 |
| Thread direction | Right | Right | Right | Right | Right |
| Shaft root dia. | Ø5.3 | Ø5.1 | Ø5.2 | Ø5.0 | Ø4.3 |
| Number of circuits | 3.7×1 | 2.7×1 | 1.6×2 | 1.2×2 | 2.7×1 |
| Shaft nut material | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H |
| Surface hardness | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 |
| Anti-rust treatment | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil |
| Grade | C7 | C7 | C7 | C7 | C7 |
| Nut size | A | B | C | D | H | W | X | E | Axial play | Dynamic load [N] | Static load [N] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS0601 | 24 | 3.5 | 15 | 12 | 16 | 18 | 3.4 | ≤0.02 | 680 | 1200 | |
| BS0602 | 29 | 4 | 17 | 15 | 19 | 22 | 3.4 | ≤0.02 | 880 | 1500 | |
| BS0606 | 27 | 4 | 17.2 | 14 | 16 | 21 | 3.4 | 5.2 | ≤0.02 | 870 | 1450 |
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Number of threads |
|---|---|---|---|---|
| 0601 | 1 | 6 | 5 | 1 |
| 0602 | 2 | 6 | 10 | 1 |
| 0606 | 6 | 6 | 30 | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 11E2209 |
|---|---|---|
| Size | Nema | 11 |
| Flange size | mm | 28 |
| Voltage | V | 3.9 |
| Current | A | 0.95 |
| Resistance | Ω | 4.1 |
| Inductance | mH | 4 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 45 |
| Ball screw type | 0601 | 0602 | 0606 | 0610 | 0504 |
|---|---|---|---|---|---|
| Ball size | Ø0.8 | Ø0.8 | Ø0.8 | Ø1.2 | Ø0.8 |
| Number of threads | 1 | 1 | 2 | 2 | 1 |
| Thread direction | Right | Right | Right | Right | Right |
| Shaft root dia. | Ø5.3 | Ø5.1 | Ø5.2 | Ø5.0 | Ø4.3 |
| Number of circuits | 3.7×1 | 2.7×1 | 1.6×2 | 1.2×2 | 2.7×1 |
| Shaft nut material | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H |
| Surface hardness | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 |
| Anti-rust treatment | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil |
| Grade | C7 | C7 | C7 | C7 | C7 |
| Nut size | A | B | C | D | H | W | X | E | Axial play | Dynamic load [N] | Static load [N] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS0601 | 24 | 3.5 | 15 | 12 | 16 | 18 | 3.4 | ≤0.02 | 680 | 1200 | |
| BS0602 | 29 | 4 | 17 | 15 | 19 | 22 | 3.4 | ≤0.02 | 880 | 1500 | |
| BS0606 | 27 | 4 | 17.2 | 14 | 16 | 21 | 3.4 | 5.2 | ≤0.02 | 870 | 1450 |
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Number of threads |
|---|---|---|---|---|
| 0601 | 1 | 6 | 5 | 1 |
| 0602 | 2 | 6 | 10 | 1 |
| 0606 | 6 | 6 | 30 | 2 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
