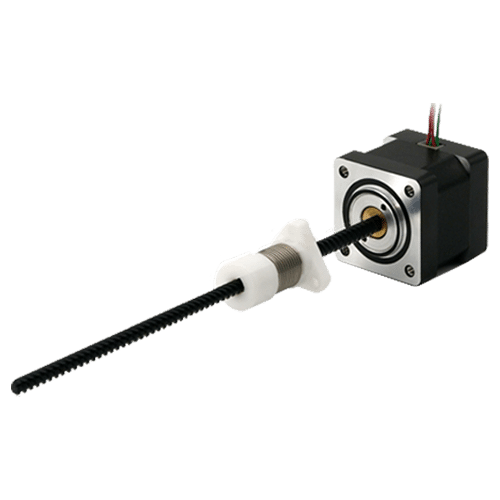

![SLSLA - Size 6 [14mm]](https://www.kocomotion.de/wp-content/uploads/2025/02/teflon-coating-detail.png)
SLSLA – Size 6 [14mm]
Size 6 [14mm] Stepper Lead Screw Linear Actuator covers a mounting footprint of 14mm square but provides 19N of maximum thrust force.
Motor Characteristics
| Parameter | Unit | 6-2103 |
|---|---|---|
| Voltage | V | 6.6 |
| Current | A | 0.3 |
| Resistance | Ohm | 22 |
| Inductance | mH | 4.5 |
| Weight | g | 60 |
| Lead Wire No. | 4 | |
| Motor Length | mm | 32 |
| Size | Nema | 6 |
| Flange size | mm | 14 |
Screw Codes & Pitch
| Lead Code | Lead Pitch [mm] | Screw Diameter [mm] | Travel per 1.8° Step [µm] | Left-hand thread available | External | Captive (Electrical Cylinder) | Kaptive | Non-captive |
|---|---|---|---|---|---|---|---|---|
| AA | 0.6096 | 3.5 | 3 | yes | yes | yes | yes | |
| B | 1.2192 | 3.5 | 6.1 | yes | yes | yes | yes | |
| AF | 0.3 | 3.5 | 1.5 | yes | yes | yes | yes | |
| AB | 1 | 3.5 | 5 | yes | yes | yes | yes | yes |
| G | 2 | 3.5 | 10 | yes | yes | yes | yes | |
| M | 4 | 3.5 | 20 | yes | yes | yes | yes | |
| T | 8 | 3.5 | 40 | yes | yes | yes | yes | |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
