Motor charactistics
| Parameter | Unit | iSV2-RS8075V48G | iSV2-RS8075V48H | iSV2-RS6040V48G | iSV2-RS6040V48H | iSV2-RS6020V48G | iSV2-RS6020V48H | iSV2-RS6020V24G | iSV2-RS6020V24H | iSV2-RS5740V48H | iSV2-RS8675V48H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame size | mm | 80 | 80 | 60 | 60 | 60 | 60 | 60 | 60 | 57 | 86 |
| Rated power | W | 750 | 750 | 400 | 400 | 200 | 200 | 200 | 200 | 400 | 750 |
| Rated voltage | VDC | 48 | 48 | 48 | 48 | 48 | 48 | 24 | 24 | 48 | 48 |
| Rated torque | Nm | 2.39 | 2.39 | 1.27 | 1.27 | 0.64 | 0.64 | 0.64 | 0.64 | 1.27 | 2.39 |
| Rated current | Arms | 19 | 19 | 10 | 10 | 6.5 | 6.5 | 11 | 11 | 10 | 19 |
| Rated speed | r/min | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Encoder | bit | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 |
| Communication | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | Modbus RTU/ Pulse+Direction | |
| Brake | Yes | No | Yes | No | Yes | No | Yes | No | No | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS8075V48G
iSV2-RS8075V48H
iSV2-RS6040V48G
iSV2-RS6040V48H
iSV2-RS6020V48G
iSV2-RS6020V48H
iSV2-RS6020V24G
iSV2-RS6020V24H
iSV2-RS5740V48H
iSV2-RS8675V48H
iSV2-RS8075V48G
iSV2-RS8075V48H
iSV2-RS6040V48G
iSV2-RS6040V48H
iSV2-RS6020V48G
iSV2-RS6020V48H
iSV2-RS6020V24G
iSV2-RS6020V24H
Integrated Servo Motors Modbus RTU
software
iSV2-RS8075V48G
datasheet
iSV2-RS8075V48H
datasheet
iSV2-RS6040V48G
datasheet
iSV2-RS6040V48H
datasheet
iSV2-RS6020V48G
datasheet
iSV2-RS6020V48H
datasheet
iSV2-RS6020V24G
datasheet
iSV2-RS6020V24H
datasheet
iSV2-RS5740V48H
datasheet

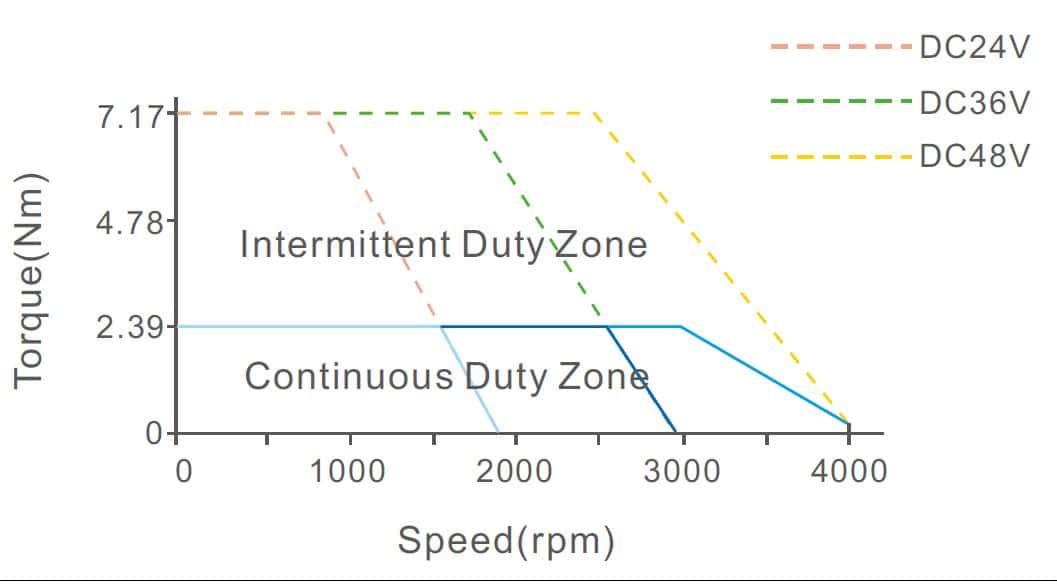

| Parameter | Unit | iSV2-RS8075V48G |
|---|---|---|
| Frame size | mm | 80 |
| Rated power | W | 750 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 2.39 |
| Rated current | Arms | 19 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | Yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS8075V48G
iSV2-RS8075V48G
datasheet
| Parameter | Unit | iSV2-RS8075V48H |
|---|---|---|
| Frame size | mm | 80 |
| Rated power | W | 750 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 2.39 |
| Rated current | Arms | 19 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS8075V48H
iSV2-RS8075V48H
iSV2-RS8075V48H
datasheet
| Parameter | Unit | iSV2-RS6040V48G |
|---|---|---|
| Frame size | mm | 60 |
| Rated power | W | 400 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 1.27 |
| Rated current | Arms | 10 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | Yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS6040V48G
iSV2-RS6040V48G
iSV2-RS6040V48G
datasheet

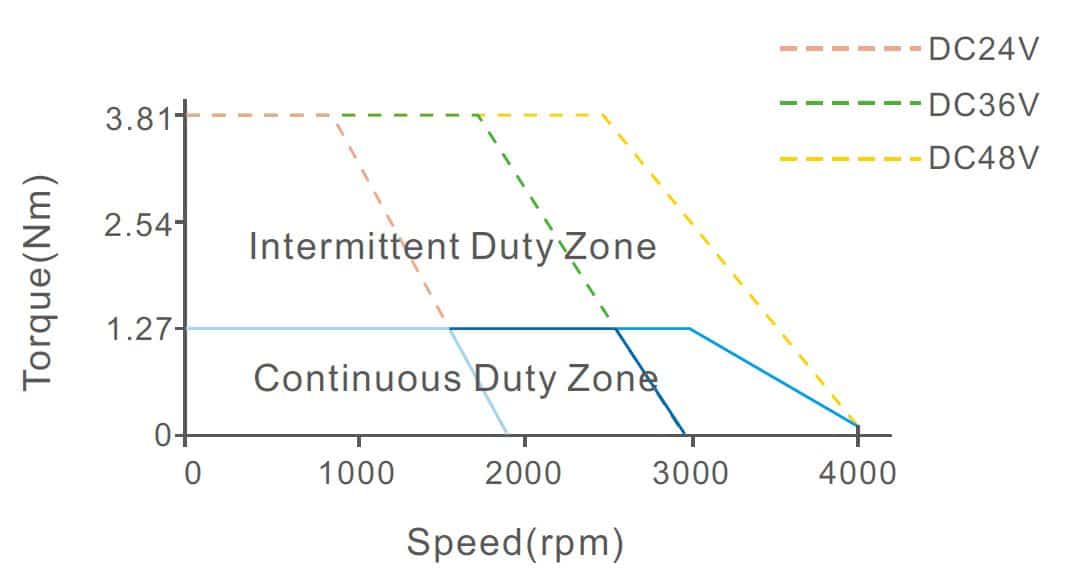

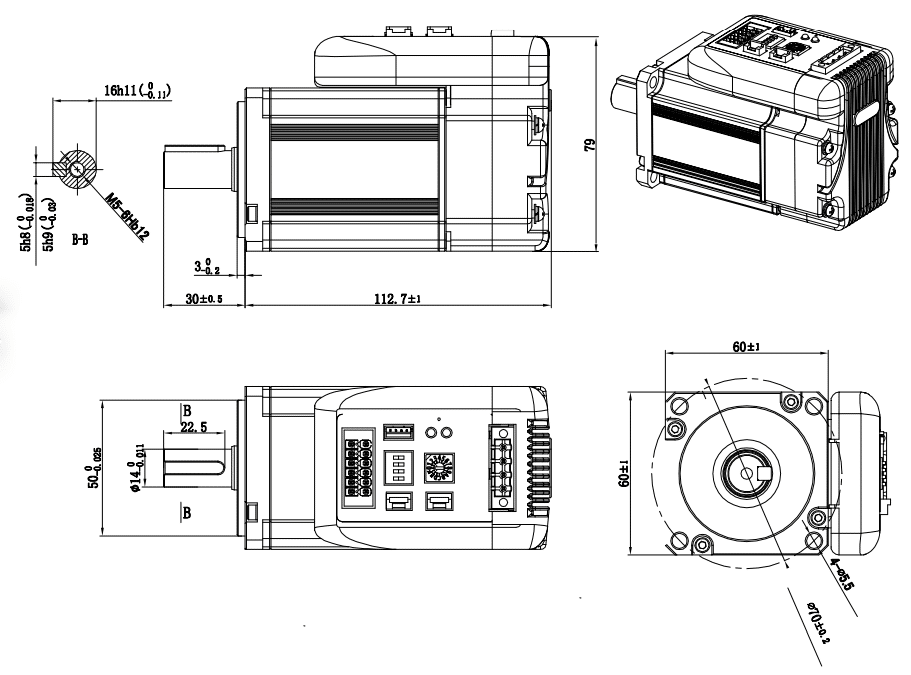

| Parameter | Unit | iSV2-RS6040V48H |
|---|---|---|
| Frame size | mm | 60 |
| Rated power | W | 400 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 1.27 |
| Rated current | Arms | 10 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS6040V48H
iSV2-RS6040V48H
iSV2-RS6040V48H
datasheet

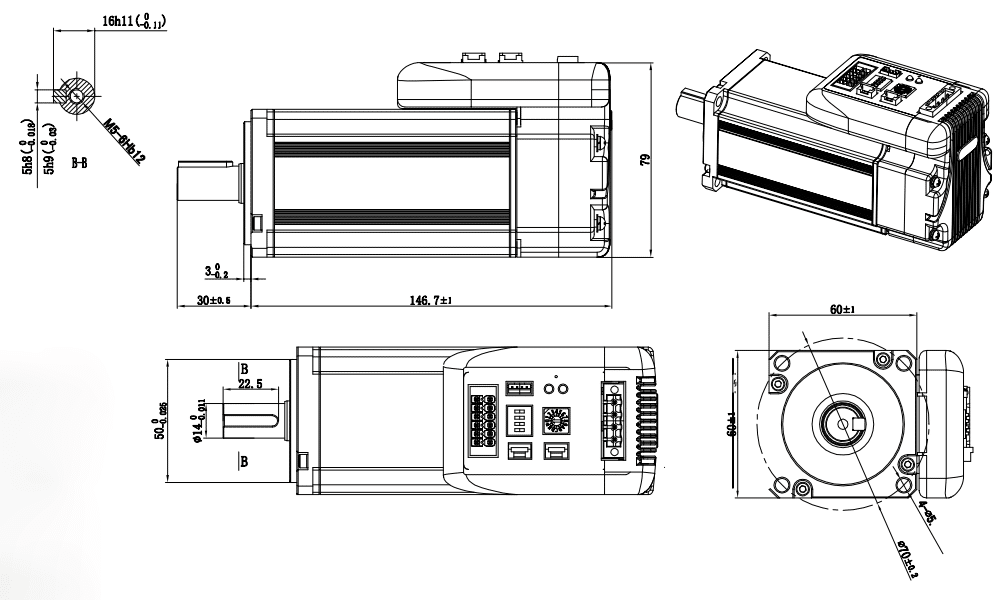

| Parameter | Unit | iSV2-RS6020V48G |
|---|---|---|
| Frame size | mm | 60 |
| Rated power | W | 200 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 0.64 |
| Rated current | Arms | 6.5 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | Yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS6020V48G
iSV2-RS6020V48G
iSV2-RS6020V48G
datasheet
| Parameter | Unit | iSV2-RS6020V48H |
|---|---|---|
| Frame size | mm | 60 |
| Rated power | W | 200 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 0.64 |
| Rated current | Arms | 6.5 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

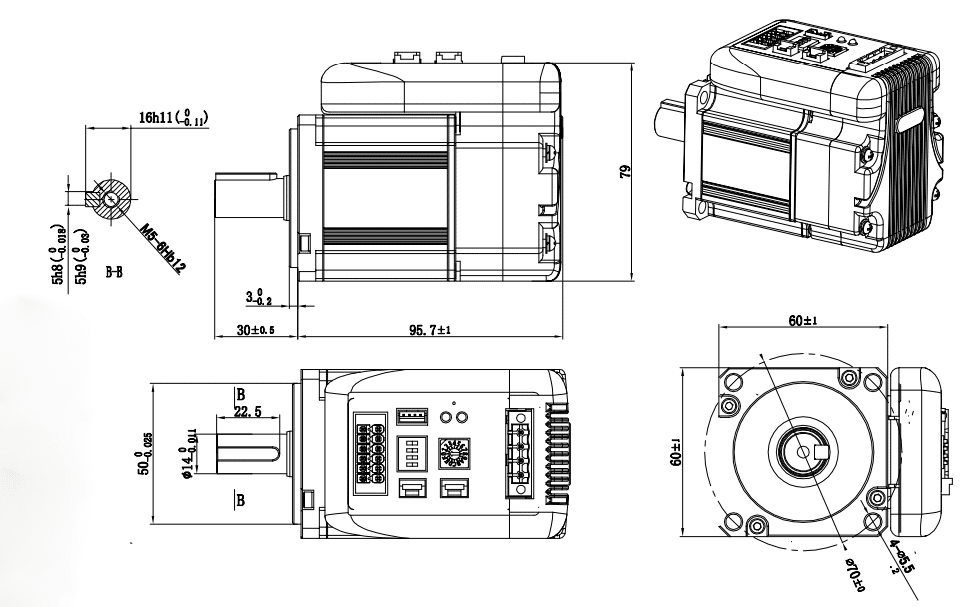

iSV2-RS6020V48H
iSV2-RS6020V48H
iSV2-RS6020V48H
datasheet

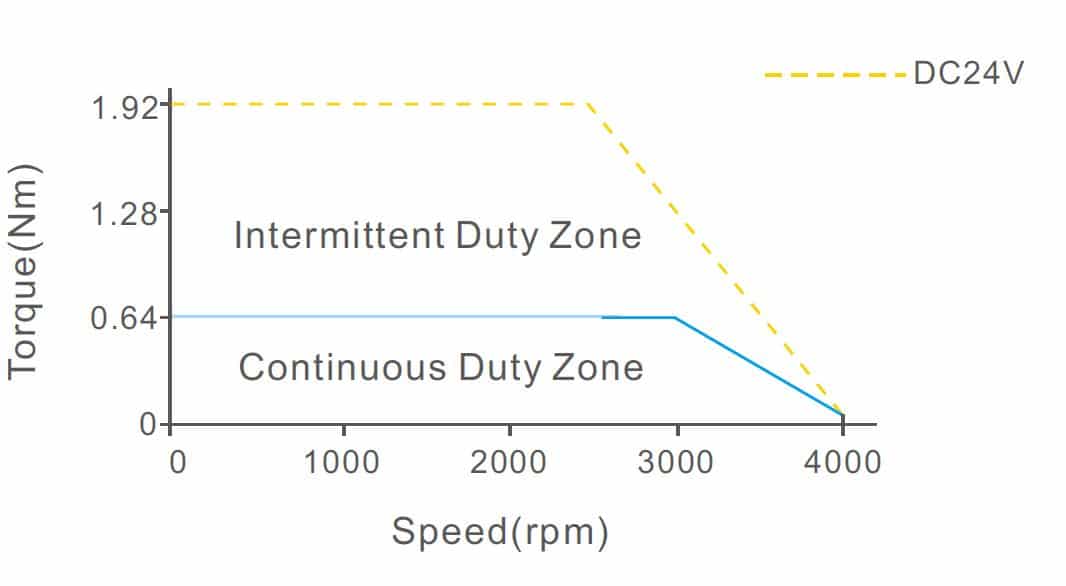

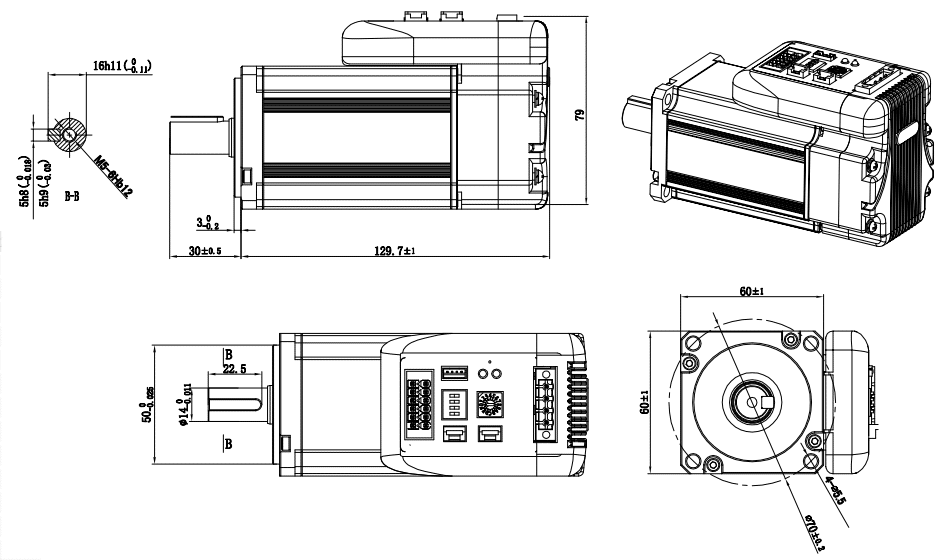

| Parameter | Unit | iSV2-RS6020V24G |
|---|---|---|
| Frame size | mm | 60 |
| Rated power | W | 200 |
| Rated voltage | VDC | 24 |
| Rated torque | Nm | 0.64 |
| Rated current | Arms | 11 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | Yes |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS6020V24G
iSV2-RS6020V24G
iSV2-RS6020V24G
datasheet
| Parameter | Unit | iSV2-RS6020V24H |
|---|---|---|
| Frame size | mm | 60 |
| Rated power | W | 200 |
| Rated voltage | VDC | 24 |
| Rated torque | Nm | 0.64 |
| Rated current | Arms | 11 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

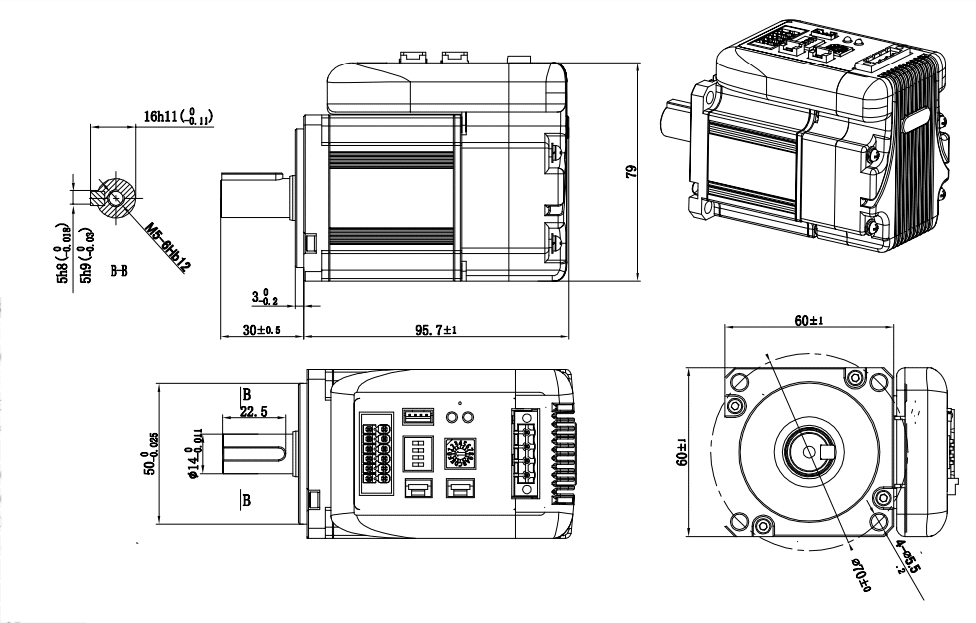

iSV2-RS6020V24H
iSV2-RS6020V24H
iSV2-RS6020V24H
datasheet

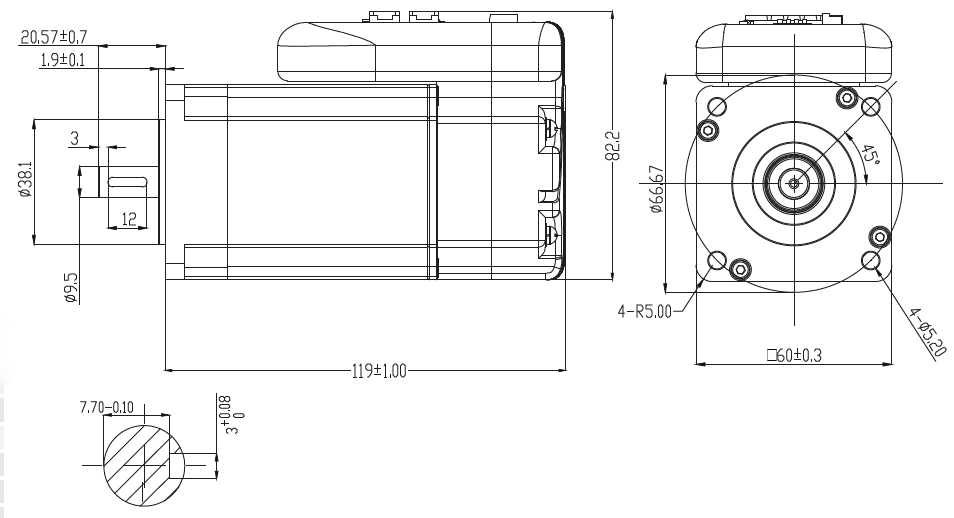

| Parameter | Unit | iSV2-RS5740V48H |
|---|---|---|
| Frame size | mm | 57 |
| Rated power | W | 400 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 1.27 |
| Rated current | Arms | 10 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
iSV2-RS5740V48H
iSV2-RS5740V48H
datasheet

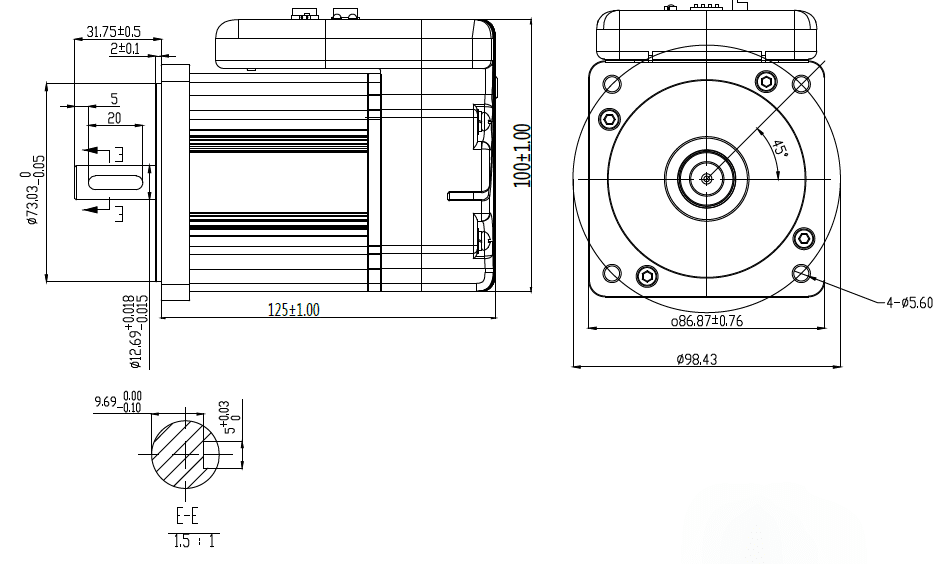

| Parameter | Unit | iSV2-RS8675V48H |
|---|---|---|
| Frame size | mm | 86 |
| Rated power | W | 750 |
| Rated voltage | VDC | 48 |
| Rated torque | Nm | 2.39 |
| Rated current | Arms | 19 |
| Rated speed | r/min | 3000 |
| Encoder | bit | 17 |
| Communication | Modbus RTU/ Pulse+Direction | |
| Brake | No |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
