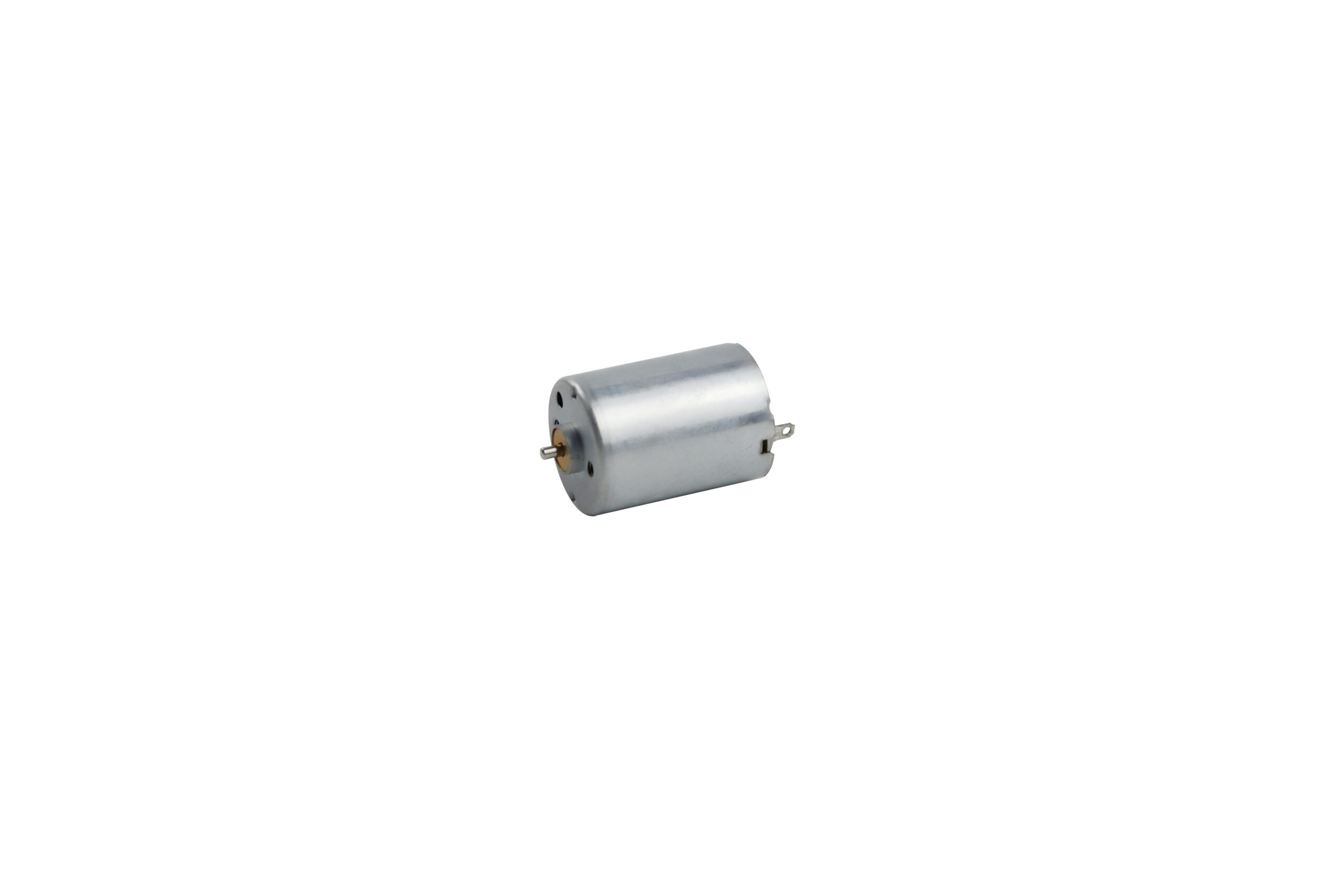

The C1723R series features compact 17mm DC core motors with graphite brushes for reliable performance and long life. Offering high speeds up to 18,800 rpm, efficient power output, and lightweight design, these motors are ideal for small electronic devices, portable tools, and smart door locks. Customizable with various shaft and lead wire options, plus compatibility with gearheads.
| Parameter | Unit | C1723R31B-0114 | C1723R31B-0159 | C1723R31B-0165 |
|---|---|---|---|---|
| Voltage | V | 7.4 | 12.0 | 12.0 |
| No-load speed | rpm | 18800 | 18400 | 17200 |
| No-load current | mA | 120 | 80 | 80 |
| Stall torque | mNm | 9 | 9.8 | 11.77 |
| Stall current | mA | 3700 | 1900 | 1900 |
| Load torque | mNm | 0.49 | 0.88 | 0.49 |
| Load speed | rpm | 17780 | 16700 | 16500 |
| Load current | mA | 310 | 240 | 180 |
| Max output power | W | 4.43 | 4.73 | 5.31 |
| Max efficiency | % | 46.5 | 57.1 | 47.7 |
| Torque constant | mNm/A | 2.51 | 5.38 | 4.49 |
| Speed/torque gradient | rpm/mNm | 2089 | 1878 | 1461 |
| Varistor | Yes/No | Yes | Yes | Yes |
| Weight | g | 18.2 | 18.2 | 18.2 |
| Operating temperature range | °C | -20~+80 | -20~+80 | -20~+80 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C1723R31B-0114 |
|---|---|---|
| Voltage | V | 7.4 |
| No-load speed | rpm | 18800 |
| No-load current | mA | 120 |
| Stall torque | mNm | 9 |
| Stall current | mA | 3700 |
| Load torque | mNm | 0.49 |
| Load speed | rpm | 17780 |
| Load current | mA | 310 |
| Max output power | W | 4.43 |
| Max efficiency | % | 46.5 |
| Torque constant | mNm/A | 2.51 |
| Speed/torque gradient | rpm/mNm | 2089 |
| Varistor | Yes/No | Yes |
| Weight | g | 18.2 |
| Operating temperature range | °C | -20~+80 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C1723R31B-0159 |
|---|---|---|
| Voltage | V | 12.0 |
| No-load speed | rpm | 18400 |
| No-load current | mA | 80 |
| Stall torque | mNm | 9.8 |
| Stall current | mA | 1900 |
| Load torque | mNm | 0.88 |
| Load speed | rpm | 16700 |
| Load current | mA | 240 |
| Max output power | W | 4.73 |
| Max efficiency | % | 57.1 |
| Torque constant | mNm/A | 5.38 |
| Speed/torque gradient | rpm/mNm | 1878 |
| Varistor | Yes/No | Yes |
| Weight | g | 18.2 |
| Operating temperature range | °C | -20~+80 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C1723R31B-0165 |
|---|---|---|
| Voltage | V | 12.0 |
| No-load speed | rpm | 17200 |
| No-load current | mA | 80 |
| Stall torque | mNm | 11.77 |
| Stall current | mA | 2700 |
| Load torque | mNm | 0.49 |
| Load speed | rpm | 16500 |
| Load current | mA | 180 |
| Max output power | W | 5.31 |
| Max efficiency | % | 47.7 |
| Torque constant | mNm/A | 4.49 |
| Speed/torque gradient | rpm/mNm | 1461 |
| Varistor | Yes/No | Yes |
| Weight | g | 18.2 |
| Operating temperature range | °C | -20~+80 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
