Characteristics
| Parameter | Unit | L0612N5M55-764-3.7 | L0612N5M20-500-3.2 | L0612N5M78-730-3.7 |
|---|---|---|---|---|
| Voltage | V | 3.7 | 3.2 | 3.7 |
| Terminal resistance | Ohm | 1.7 | 2.2 | 2.0 |
| No-load speed | rpm | 76400 | 50000 | 73000 |
| No-load current | mA | 110 | 80 | 90 |
| Stall torque | mNm | 0.91 | 0.79 | 0.81 |
| Stall current | mA | 2176 | 1455 | 1850 |
| Load torque | mNm | 0.05 | 0.05 | 0.05 |
| Load speed | rpm | 72190 | 46850 | 68490 |
| Load current | mA | 220 | 170 | 200 |
| Max. output power | W | 1.8 | 1.0 | 1.5 |
| Max. efficiency | % | 60.1 | 58.7 | 60.8 |
| Back-EMF constant | mV/rpm | 0.05 | 0.06 | 0.05 |
| Torque constant | mNm/A | 0.44 | 0.58 | 0.46 |
| Speed/torque gradient | rpm/mNm | 84234 | 62972 | 90123 |
| Rotor inertia | g·cm² | 0.014 | 0.014 | 0.014 |
| Weight | g | 1.3 | 1.3 | 1.3 |
| Operating temperature range | ℃ | -20~+100 | -20~+100 | -20~+100 |
Applications
mini UAV
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

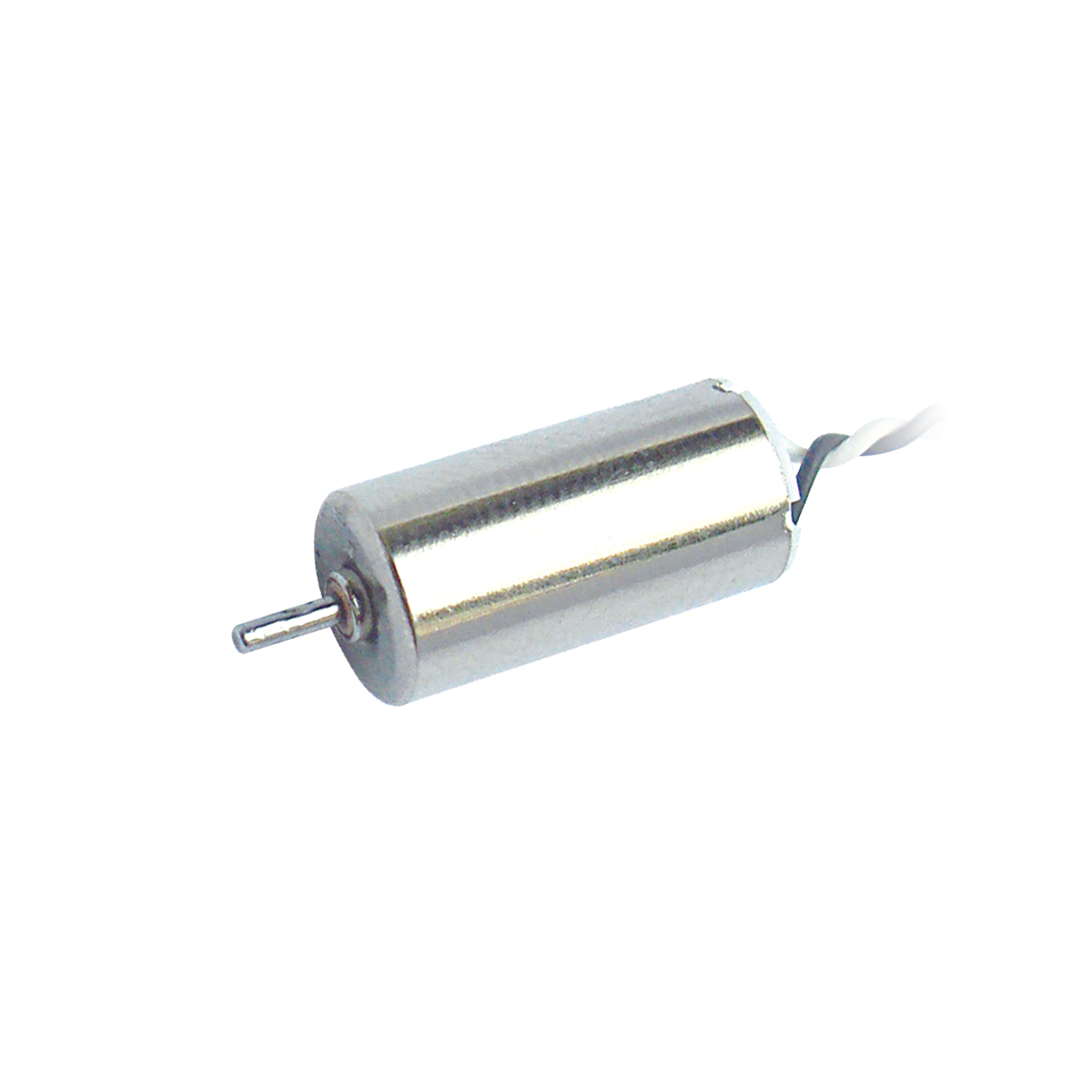

L0612N5M
L0612N5M
| Parameter | Unit | L0612N5M55-764-3.7 |
|---|---|---|
| Voltage | V | 3.7 |
| Terminal resistance | Ohm | 1.7 |
| No-load speed | rpm | 76400 |
| No-load current | mA | 110 |
| Stall torque | mNm | 0.91 |
| Stall current | mA | 2176 |
| Load torque | mNm | 0.05 |
| Load speed | rpm | 72190 |
| Load current | mA | 220 |
| Max. output power | W | 1.8 |
| Max. efficiency | % | 60.1 |
| Back-EMF constant | mV/rpm | 0.05 |
| Torque constant | mNm/A | 0.44 |
| Speed/torque gradient | rpm/mNm | 84234 |
| Rotor inertia | g·cm² | 0.014 |
| Weight | g | 1.3 |
| Operating temperature range | ℃ | -20~+100 |
Applications
mini UAV
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
L0612N5M
| Parameter | Unit | L0612N5M20-500-3.2 |
|---|---|---|
| Voltage | V | 3.2 |
| Terminal resistance | Ohm | 2.2 |
| No-load speed | rpm | 50000 |
| No-load current | mA | 80 |
| Stall torque | mNm | 0.79 |
| Stall current | mA | 1455 |
| Load torque | mNm | 0.05 |
| Load speed | rpm | 46850 |
| Load current | mA | 170 |
| Max. output power | W | 1.0 |
| Max. efficiency | % | 58.7 |
| Back-EMF constant | mV/rpm | 0.06 |
| Torque constant | mNm/A | 0.58 |
| Speed/torque gradient | rpm/mNm | 62972 |
| Rotor inertia | g·cm² | 0.014 |
| Weight | g | 1.3 |
| Operating temperature range | ℃ | -20~+100 |
Applications
mini UAV
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
L0612N5M
| Parameter | Unit | L0612N5M78-730-3.7 |
|---|---|---|
| Voltage | V | 3.7 |
| Terminal resistance | Ohm | 2.0 |
| No-load speed | rpm | 73000 |
| No-load current | mA | 90 |
| Stall torque | mNm | 0.81 |
| Stall current | mA | 1850 |
| Load torque | mNm | 0.05 |
| Load speed | rpm | 68490 |
| Load current | mA | 200 |
| Max. output power | W | 1.5 |
| Max. efficiency | % | 60.8 |
| Back-EMF constant | mV/rpm | 0.05 |
| Torque constant | mNm/A | 0.46 |
| Speed/torque gradient | rpm/mNm | 90123 |
| Rotor inertia | g·cm² | 0.014 |
| Weight | g | 1.3 |
| Operating temperature range | ℃ | -20~+100 |
Applications
mini UAV
remote control hobby products
small household appliances
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
