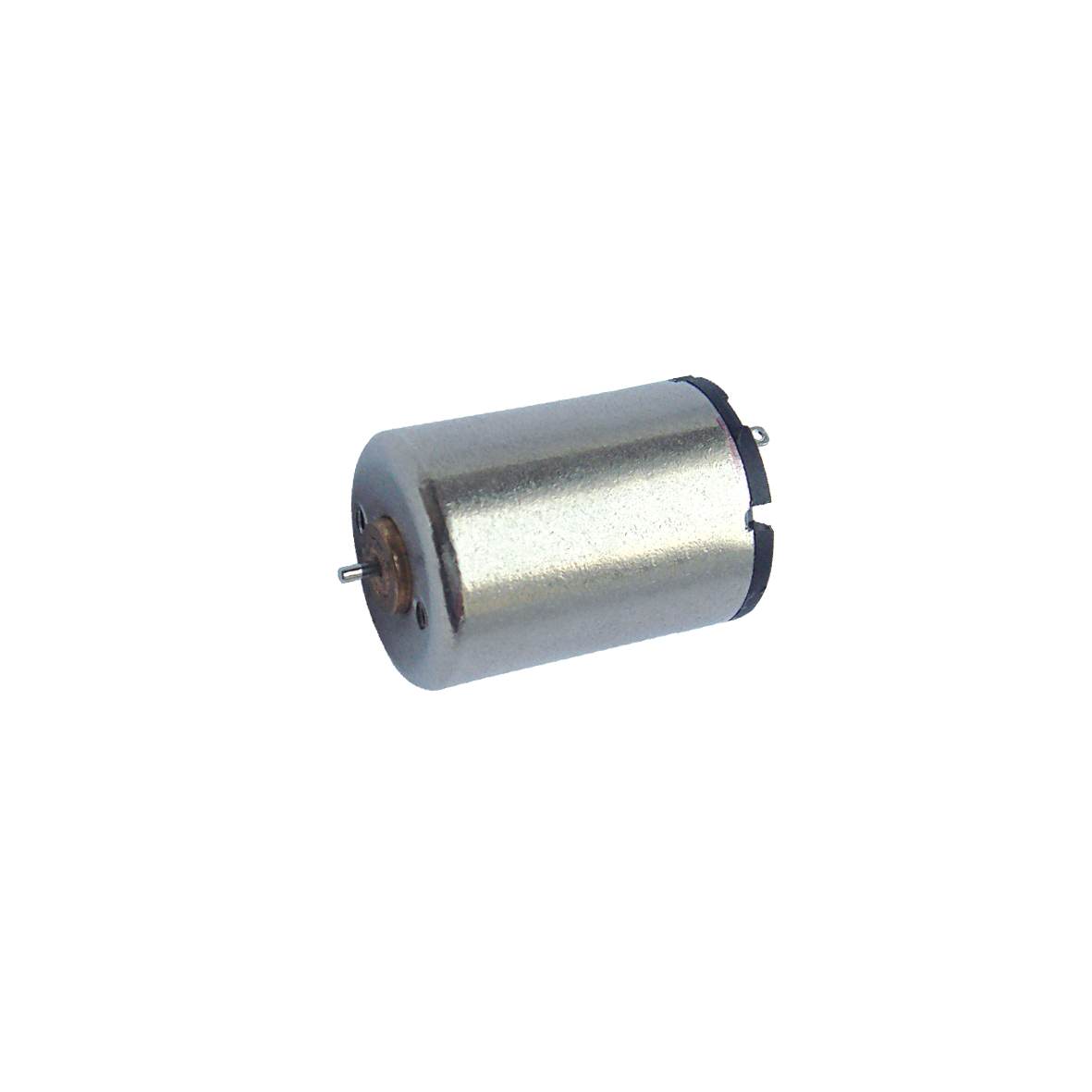

The L1625N5M series features compact 16mm micro DC coreless motors with precious metal brushes for high efficiency and reliability. Operating at 5V, 6V, or 12V, this series delivers speeds up to 18,700 rpm and a stall torque up to 22.3 mNm. Ideal for mini UAVs, remote control hobby products, and small household appliances, customizable with various options including gearheads, shaft length, and special coils.
| Parameter | Unit | L1625N5M25-88-6.0 | L1625N5M35-60-5.0 | L1625N5M54-170-12.0 |
|---|---|---|---|---|
| Voltage | V | 6.0 | 5.0 | 12.0 |
| Terminal resistance | Ω | 3.1 | 4.4 | 3.2 |
| No-load speed | rpm | 8800 | 6000 | 18700 |
| No-load current | mA | 25 | 25 | 60 |
| Stall torque | mNm | 12.3 | 8.6 | 22.3 |
| Stall current | mA | 1935 | 1136 | 3750 |
| Load torque | mNm | 3.5 | 1 | 3.8 |
| Load speed | rpm | 6290 | 5310 | 15470 |
| Load current | mA | 570 | 153 | 697 |
| Max. output power | W | 2.8 | 1.4 | 10.9 |
| Max. efficiency | % | 79 | 73 | 76 |
| Back-EMF constant | mV/rpm | 0.67 | 0.82 | 0.63 |
| Torque constant | mNm/A | 6.43 | 7.78 | 6.03 |
| Speed/torque gradient | rpm/mNm | 720 | 690 | 840 |
| Rotor inertia | gcm² | 0.7 | 0.7 | 0.7 |
| Weight | g | 20.5 | 20.5 | 20.5 |
| Operating temperature range | ℃ | -20~+85 | -20~+85 | -20~+85 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

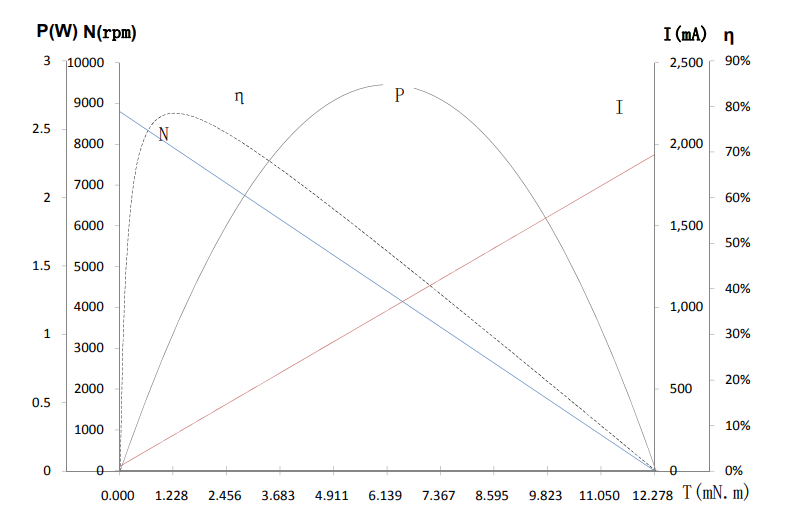

| Parameter | Unit | L1625N5M25-88-6.0 |
|---|---|---|
| Voltage | V | 6.0 |
| Terminal resistance | Ω | 3.1 |
| No-load speed | rpm | 8800 |
| No-load current | mA | 25 |
| Stall torque | mNm | 12.3 |
| Stall current | mA | 1935 |
| Load torque | mNm | 3.5 |
| Load speed | rpm | 6290 |
| Load current | mA | 570 |
| Max. output power | W | 2.8 |
| Max. efficiency | % | 79 |
| Back-EMF constant | mV/rpm | 0.67 |
| Torque constant | mNm/A | 6.43 |
| Speed/torque gradient | rpm/mNm | 720 |
| Rotor inertia | gcm² | 0.7 |
| Weight | g | 20.5 |
| Operating temperature range | ℃ | -20~+85 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | L1625N5M35-60-5.0 |
|---|---|---|
| Voltage | V | 5.0 |
| Terminal resistance | Ω | 4.4 |
| No-load speed | rpm | 6000 |
| No-load current | mA | 25 |
| Stall torque | mNm | 8.6 |
| Stall current | mA | 1136 |
| Load torque | mNm | 1 |
| Load speed | rpm | 5310 |
| Load current | mA | 153 |
| Max. output power | W | 1.4 |
| Max. efficiency | % | 73 |
| Back-EMF constant | mV/rpm | 0.82 |
| Torque constant | mNm/A | 7.78 |
| Speed/torque gradient | rpm/mNm | 690 |
| Rotor inertia | gcm² | 0.7 |
| Weight | g | 20.5 |
| Operating temperature range | ℃ | -20~+85 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | L1625N5M54-170-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ω | 3.2 |
| No-load speed | rpm | 18700 |
| No-load current | mA | 60 |
| Stall torque | mNm | 22.3 |
| Stall current | mA | 3750 |
| Load torque | mNm | 3.8 |
| Load speed | rpm | 15470 |
| Load current | mA | 697 |
| Max. output power | W | 10.9 |
| Max. efficiency | % | 76 |
| Back-EMF constant | mV/rpm | 0.63 |
| Torque constant | mNm/A | 6.03 |
| Speed/torque gradient | rpm/mNm | 840 |
| Rotor inertia | gcm² | 0.7 |
| Weight | g | 20.5 |
| Operating temperature range | ℃ | -20~+85 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
