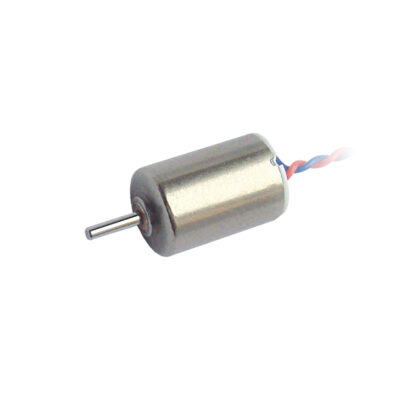

The L0710N5M series features compact 7mm micro coreless DC motors with precious metal brushes, offering outstanding efficiency and high rotational speeds up to 78,050 rpm. Weighing just 1.6g, these motors are ideal for lightweight, precision-demanding applications including mini UAVs, remote control hobby products, and small household appliances. Customization options include lead wires, shaft length, special coils, and compatible gearheads.
| Parameter | Unit | L0710N5M61-780-8.0 | L0710N5M51-325-3.0 | L0710N5M08-618-5.0 |
|---|---|---|---|---|
| Voltage | V | 8.0 | 3.0 | 5.0 |
| Terminal resistance | Ω | 7.2 | 6.3 | 3.4 |
| No-load speed | rpm | 78050 | 32500 | 61800 |
| No-load current | mA | 95 | 50 | 80 |
| Stall torque | mNm | 0.9 | 0.3 | 1 |
| Stall current | mA | 1110 | 480 | 1470 |
| Load torque | mNm | 0.55 | 0.12 | 0.12 |
| Load speed | rpm | 30880 | 20890 | 54500 |
| Load current | mA | 710 | 200 | 240 |
| Max. output power | W | 1.9 | 0.29 | 1.65 |
| Max. efficiency | % | 50.2 | 45.4 | 58.9 |
| Back-EMF constant | mV/rpm | 0.09 | 0.08 | 0.08 |
| Torque constant | mNm/A | 0.9 | 0.79 | 0.73 |
| Speed/torque gradient | rpm/mNm | 85769 | 96726 | 60827 |
| Rotor inertia | gcm² | 0.02 | 0.02 | 0.02 |
| Weight | g | 1.6 | 1.6 | 1.6 |
| Operating temperature range | ℃ | -20~+100 | -20~+100 | -20~+100 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

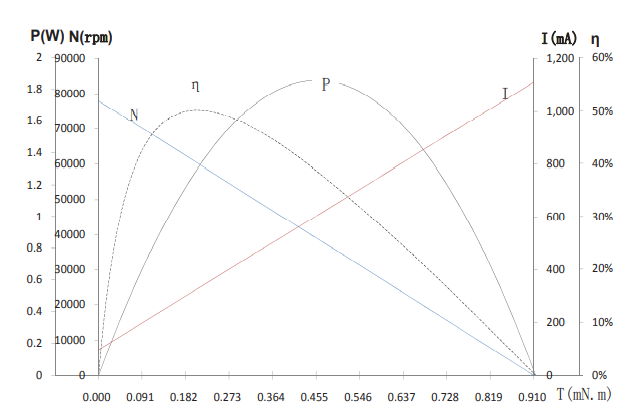

| Parameter | Unit | L0710N5M61-780-8.0 |
|---|---|---|
| Voltage | V | 8.0 |
| Terminal resistance | Ω | 7.2 |
| No-load speed | rpm | 78050 |
| No-load current | mA | 95 |
| Stall torque | mNm | 0.9 |
| Stall current | mA | 1110 |
| Load torque | mNm | 0.55 |
| Load speed | rpm | 30880 |
| Load current | mA | 710 |
| Max. output power | W | 1.9 |
| Max. efficiency | % | 50.2 |
| Back-EMF constant | mV/rpm | 0.09 |
| Torque constant | mNm/A | 0.9 |
| Speed/torque gradient | rpm/mNm | 85769 |
| Rotor inertia | gcm² | 0.02 |
| Weight | g | 1.6 |
| Operating temperature range | ℃ | -20~+100 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | L0710N5M51-325-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ω | 6.3 |
| No-load speed | rpm | 32500 |
| No-load current | mA | 50 |
| Stall torque | mNm | 0.3 |
| Stall current | mA | 480 |
| Load torque | mNm | 0.12 |
| Load speed | rpm | 20890 |
| Load current | mA | 200 |
| Max. output power | W | 0.29 |
| Max. efficiency | % | 45.4 |
| Back-EMF constant | mV/rpm | 0.08 |
| Torque constant | mNm/A | 0.79 |
| Speed/torque gradient | rpm/mNm | 96726 |
| Rotor inertia | gcm² | 0.02 |
| Weight | g | 1.6 |
| Operating temperature range | ℃ | -20~+100 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | L0710N5M08-618-5.0 |
|---|---|---|
| Voltage | V | 5.0 |
| Terminal resistance | Ω | 3.4 |
| No-load speed | rpm | 61800 |
| No-load current | mA | 80 |
| Stall torque | mNm | 1 |
| Stall current | mA | 1470 |
| Load torque | mNm | 0.12 |
| Load speed | rpm | 54500 |
| Load current | mA | 240 |
| Max. output power | W | 1.65 |
| Max. efficiency | % | 58.9 |
| Back-EMF constant | mV/rpm | 0.08 |
| Torque constant | mNm/A | 0.73 |
| Speed/torque gradient | rpm/mNm | 60827 |
| Rotor inertia | gcm² | 0.02 |
| Weight | g | 1.6 |
| Operating temperature range | ℃ | -20~+100 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
