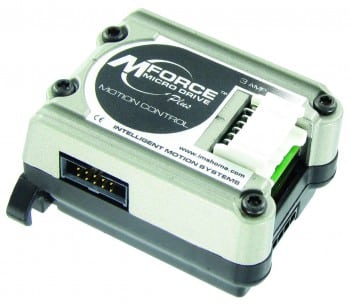

MFI3 MicroDrive Programmable Motion Control

MFI3 MicroDrive with

  • Pulse/Direction
  • Motion Control (RS485)
  • CANopen
  • Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)
SKU: MFI3 MicroDrive Programmable Motion Control Category:

Description

MForce MicroDrive Motion Control with expanded features combines a programmable motion controller with step and direction microstepping drive. Programming is accomplished over RS-422/485 with provided software for point-to-point or multiple unit configurations. +12 to +48 VDC input voltage and an output current of 3.0 A RMS (4.0 A Peak). Fully programmable using the powerful and feature rich MCode OS.
