Description

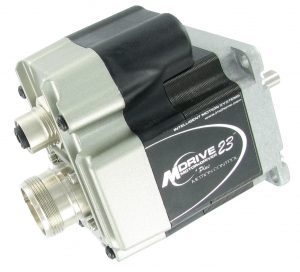

MDrive Plus NEMA size 23 (57 mm) Step/direction input with SPI interface for parameterization.
Holding torque range oz-in (N-cm): 90 …283 (64 … 200)
I/O connector options: M23 Circular
Com connector: None
| Parameter | Unit | MDM2 NEMA 23 Step/direction Input IP65 |
|---|---|---|
| Control type | Step/direction input | |
| Input voltage | +VDC | +12 to +75 |
| Power supply current requirement | A | 2.0 |
| Feature set | Clock and direction inputs | |
| P1 connector options | Power & I/O | M23 Circular |
| P2 connector options | Comm | None |
| Communications interface | SPI | |
| NEMA size | 23 (57×57 mm) | |
| Holding torque range | Nm | 0.64 … 2.00 |
| Temperature heatsink (short-time) | °C | max. 85 |
| IP rating | IP20 |
Parameter settings
| Parameter settings | Unit | MDM2 NEMA 23 Step/direction Input IP65 |
|---|---|---|
| Input Step, Direction & Enable voltage | + VDC | 5 … 24 |
| Current | mA Max | 14.6 |
| Digital Filter Range | MHz … kHz | 10 … 38.8 |
| Step Frequency | MHz Max | 5 |
| Microstep Resolutions | Steps/Rev | 200 … 51200 |
| Clock Types | Step/Direction, Step Up/Step Down, Quadrature | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
