Half/Full Step with

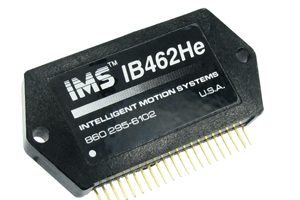

Based upon our popular IB462 Half/Full Step driver, the IB462He is a low cost, high performance alternative to larger drivers. The small size of the patented IB462He makes it ideal for systems where space is at a premium without sacrificing performance.
| Specification | Half/Full Step Driver Module IB462He 2.0 A |
|---|---|
| Control type | Step/Direction |
| Control interface | Step, direction and enable inputs |
| Driver type | Half/Full Step |
| Operating temperature | 0 … +70 °C |
| Input voltage | +12 to +48 +VDC |
| Output voltage | 0.1 … 2.0 A |
| Low-level input voltage, SCLK, DIR, H/F, reset | 0.6 +VDC |
| Low-level input voltage, enable input | 1.3 +VDC |
| High-level input voltage, all inputs | 5.0 +VDC |
| Low-level input current, SCLK, DIR, H/F, enable | -1.2 mA |
| Low-level input current, reset input | -200 μA |
| High level input current, SCLK, DIR, H/F, enable | 10 μA |
| Input pull-up resistance, SCLK, DIR, H/F, enable | 4.9 kΩ |
| Input pull-up resistance, reset input | 52 kΩ |
| Motion step frequency | 40 MHz max |
| Motion step resolutions | 1 … 2 steps/full step |
