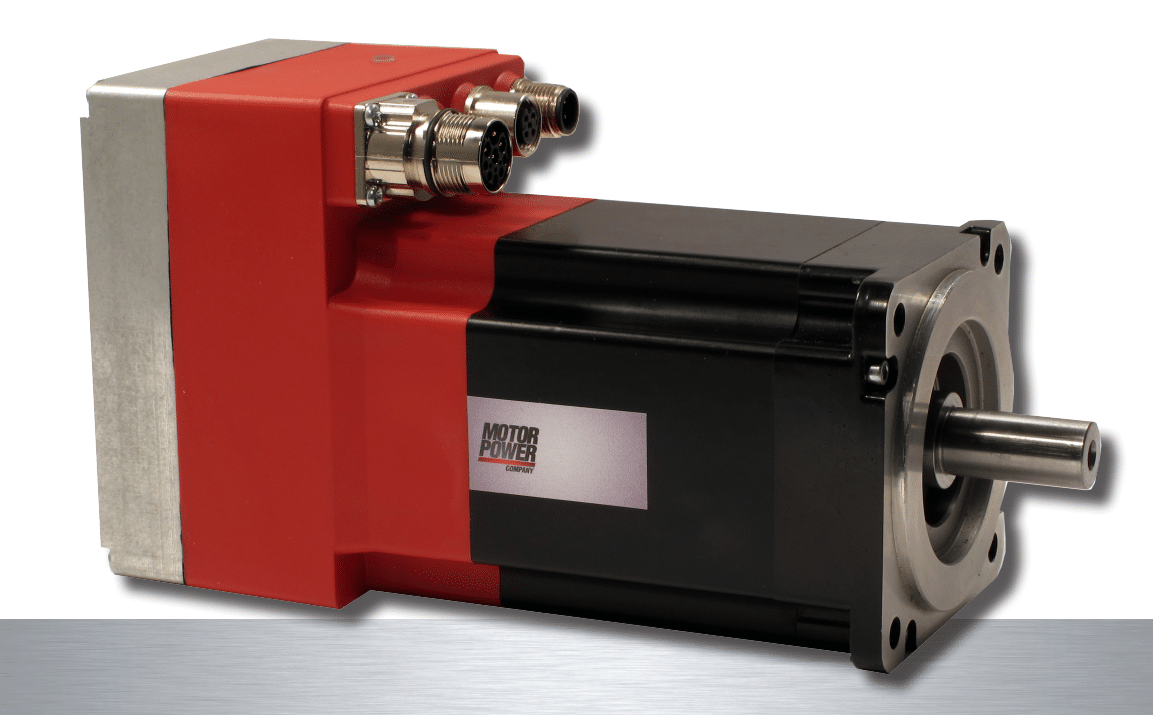

Flange dimensions: 60 mm
Rated Output Power: 200 – 310 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 2500/3000 rpm
Fieldbus: CanOpen/Ethercat
Flange dimensions: 60 mm
Rated Output Power: 200 – 310 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 2500/3000 rpm
Fieldbus: CanOpen/Ethercat
| Parameter | Unit | DUET FLEXI 60 0,65 01 |
|---|---|---|
| Rated Voltage | Vdc | 48 |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 |
| Minimum Voltage | Vdc | 24 |
| Maximum Voltage | Vdc | 60 |
| Stall Torque | Nm | 0.65 |
| Stall Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Nm | – |
| Peak Torque | Nm | 1.95 |
| Rated Torque | Nm | 0.64 |
| Rated Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Nm | 0.64 |
| Rated Output Power | W | 200 |
| Rated output power @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | W | – |
| Rated output Power @ 10 Arms | W | – |
| Stall Current | Arms | 6.9 |
| Stall current @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Arms | – |
| Peak Current | Arms | 20.7 |
| Rated Current | Arms | 7 |
| Rated current @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Arms | – |
| Rated Speed @48Vdc | rpm | 3000 |
| Maximum Speed @48Vdc | rpm | 5000 |
| Maximum Speed @24Vdc | rpm | 2600 |
| Torque Constant (± 5%) | Nm/Arms | 0.094 |
| Voltage Constant (± 5%) | Vrms/Krpm | 5.7 |
| Phase/phase resistance (± 10%@25°C) | Ω | 0.38 |
| Phase/phase inductance (± 10%) | mH | 0.9 |
| Electrical time constant | ms | 2.4 |
| Thermal Resistance | °C/W | 1.9 |
| Mechanical time constant | ms | 0.83 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.13 |
| Duet weight | Kg | 1.4 |
| Duet weight with brake | Kg | 1.8 |
| Axial Load applied on the shaft’s center | N | 70 |
| Radial Load applied on the shaft’s center | N | 220 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
