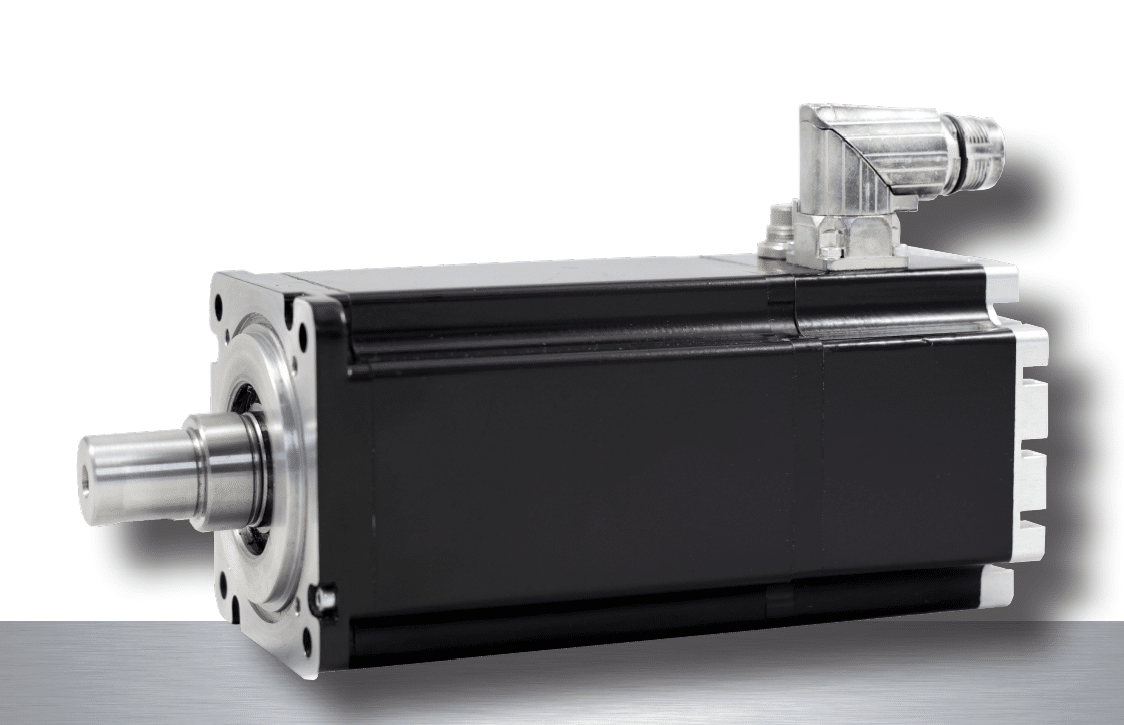

Description
Flange dimensions: 80 mm
Rated Output Power: 480 – 630 W
Rated Torque: 1,53 – 2,0 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen/Modbus RTUY 485/Ethercat/Profinet
| Parameter | Unit | DUET AD 80 1,5 03 |
|---|---|---|
| Rated Voltage | Vdc | 48 |
| Peak Current | Arms | 35.1 |
| Rated Current | Arms | 11 |
| Rated Speed @48Vdc | rpm | 3000 |
| Maximum Speed @48Vdc | rpm | 4500 |
| Torque Constant (± 5%) | Nm/Arms | 0.141 |
| Voltage Constant (± 5%) | Vrms/Krpm | 8.5 |
| Phase/phase resistance (± 10%@25°C) | Ω | 0.136 |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 |
| Minimum Voltage | Vdc | 40 |
| Maximum Voltage | Vdc | 48 |
| Stall Torque | Nm | 1.74 |
| Peak Torque | Nm | 4.5 |
| Rated Torque | Nm | 1.53 |
| Rated Output Power | W | 480 |
| Stall Current | Arms | 12.3 |
Family Specification
| Family Specification | Unit | DUET AD 80 1,5 03 |
|---|---|---|
| Time Rating | Coninuous | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized. | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL /CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | 5 to 85% (non-condensing) | |
| Poles | 8 | |
| Certification | CE |
Family Overview
| Family Overview | Unit | DUET AD 80 1,5 03 |
|---|---|---|
| Flange dimensions | mm | 80 |
| Rated Output Power | Watt | 480 – 630 |
| Rated Torque | Nm | 1,53 – 2,0 |
| Rated Speed | rpm | 3000 |
| Fieldbus | CanOpen/Modbus RTUY 485/Ethercat/Profinet |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
