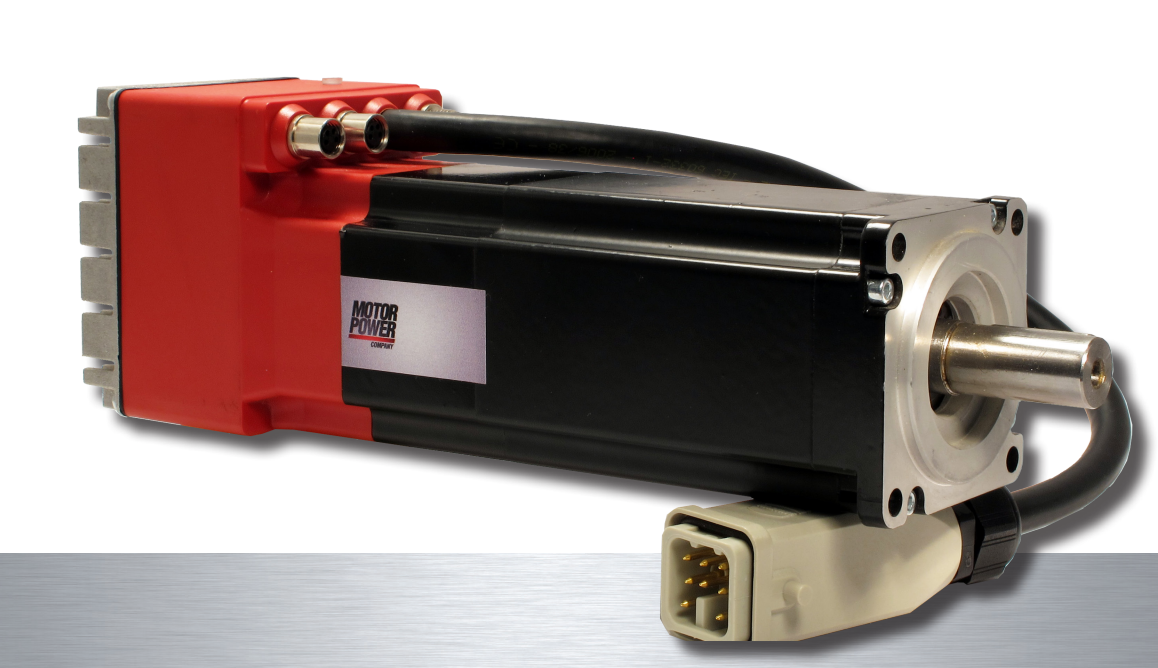

Description
Flange dimensions: 60 mm
Rated Output Power: 190 – 370 W
Rated Torque: 0,6 – 1,17 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
incl. 19% VAT
Flange dimensions: 60 mm
Rated Output Power: 190 – 370 W
Rated Torque: 0,6 – 1,17 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
Flange dimensions: 60 mm
Rated Output Power: 190 – 370 W
Rated Torque: 0,6 – 1,17 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
Specification | DUET 60 1,3 02 |
---|---|
Rated Voltage | 48 Vdc |
Auxiliary Voltage (+6% -10%) | 24 Vdc |
Minimum Voltage | 9 Vdc |
Maximum Voltage | 60 Vdc |
Stall Torque | 0.68 Nm |
Stall Torque Intermittent duty S2 10″/40″ | 1.31 Nm |
Stall Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | – |
Peak Torque | 2.4 Nm |
Rated Torque | 0.66 Nm |
Rated Torque Intermittent duty S2 10″/40″ | 1.17 Nm |
Rated Output Power | 210 W |
Rated Output Power Intermittent duty S2 10″/40″ | 370 W |
Stall Current | 6.1 Arms |
Stall Current Intermittent duty S2 10″/40″ | 11.7 Arms |
Peak Current | 21.2 Arms |
Rated Current | 6.1 Arms |
Rated Current Intermittent duty S2 10″/40″ | 10.4 Arms |
Rated Speed @48Vdc | 3000 rpm |
Maximum Speed @48Vdc | 4500 rpm |
Maximum Speed @24Vdc | 2200 rpm |
Torque Constant (± 5%) | 0.112 Nm/Arms |
Voltage Constant (± 5%) | 6.8 Vrms/Krpm |
Phase/phase resistance (± 10%@25°C) | 0.2 Ω |
Phase/phase inductance (± 10%) | 0.68 mH |
Electrical time constant | 3.4 ms |
Thermal Resistance | 1.4 °C/W |
Mechanical time constant | 0.57 ms |
Rotor Inertia without brake and without feedback | 0.24 kg·cm² |
Duet weight | 1.6 Kg |
Duet weight with brake | 2 Kg |
Axial Load applied on the shaft’s center | 70 N |
Radial Load applied on the shaft’s center | 220 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
