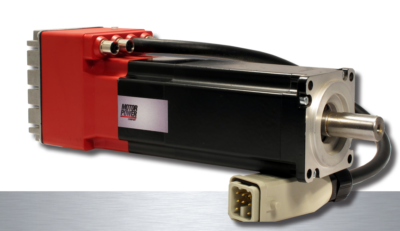

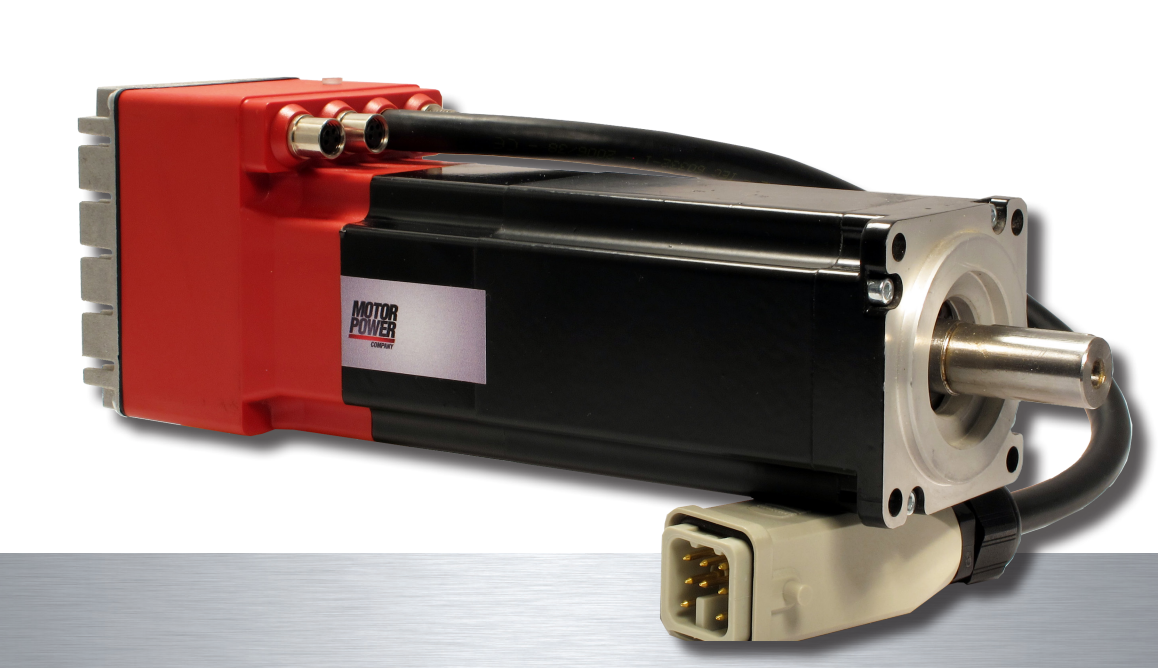

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
| Parameter | Unit | DUET 40 0,32 01 |
|---|---|---|
| Rated Voltage | Vdc | 48 |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 |
| Minimum Voltage | Vdc | 9 |
| Maximum Voltage | Vdc | 60 |
| Stall Torque | Nm | 0.34 |
| Peak Torque | Nm | 0.96 |
| Rated Torque | Nm | 0.32 |
| Rated Output Power | W | 100 |
| Stall Current | Arms | 3.6 |
| Peak Current | Arms | 10.2 |
| Rated Current | Arms | 3.5 |
| Rated Speed @48Vdc | rpm | 3000 |
| Maximum Speed @48Vdc | rpm | 5000 |
| Maximum Speed @24Vdc | rpm | 2600 |
| Torque Constant (± 5%) | Nm/Arms | 0.094 |
| Voltage Constant (± 5%) | Vrms/Krpm | 5.7 |
| Phase/phase resistance (± 10%@25°C) | Ω | 1 |
| Phase/phase inductance (± 10%) | mH | 1.42 |
| Electrical time constant | ms | 1.4 |
| Thermal Resistance | °C/W | 2.3 |
| Mechanical time constant | ms | 0.8 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.047 |
| Duet weight | Kg | 0.7 |
| Duet weight with brake | Kg | 0.85 |
| Axial Load applied on the shaft’s center | N | 30 |
| Radial Load applied on the shaft’s center | N | 180 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
