Description

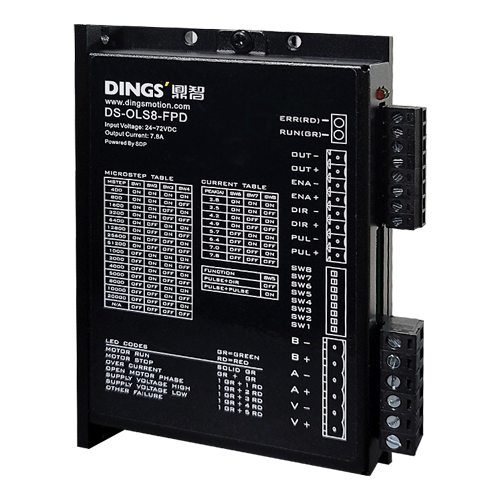

DS-OLS8-FPD Stand Alone Open Loop – Pulse Type – Apply to Size 23, 24,34 of Step Motors
| Parameter | Unit | DS-OLS8-FPD |
|---|---|---|
| Applied Motor | DS-OLS8-FPD can operate Max. 7.8A of motor | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 72V DC |
| Output Current | A | 2.8A-7.8A/Phase（Peak Value） |
| Drive Method | Bi-Polar PWM drive | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,Conduction current 6-15mA | |
| Output Signal Alarm output | Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA | |

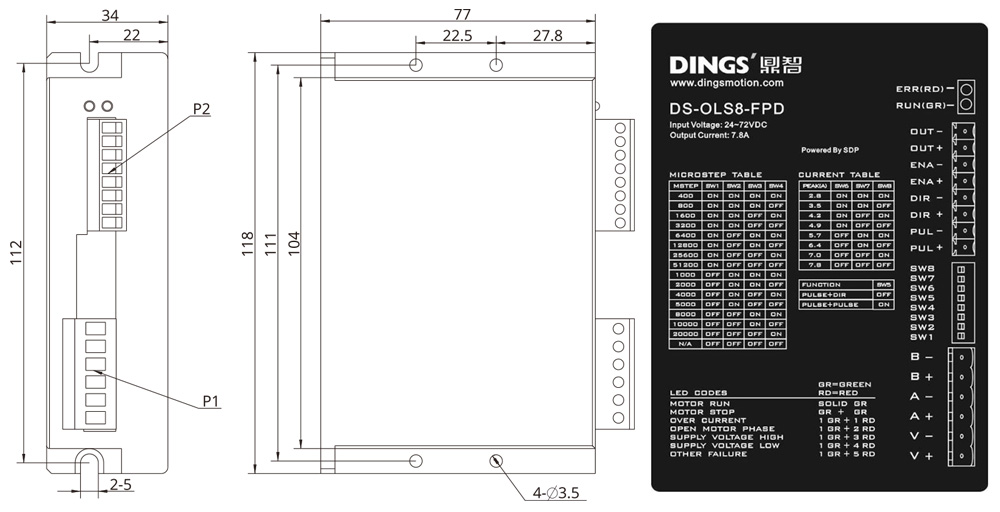

| Size | mm | 118 × 78 × 34 |
| Weight | g | About 300 |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
