| Specification | C2430R23-0021 | C2430R43-0010 | C2430R44-0039 |
|---|---|---|---|
| Voltage | 24.0 V | 12.0 V | 3.7 V |
| Terminal resistance | 260 Ω | 11.0 Ω | 0.8 Ω |
| No-load speed | 2500 rpm | 6150 rpm | 6350 rpm |
| No-load current | 4 mA | 35 mA | 130 mA |
| Stall torque | 6.53 mNm | 16.10 mNm | 23.50 mNm |
| Stall current | 107 mA | 978 mA | 4683 mA |
| Load torque | 1.96 mNm | 1.96 mNm | 1.96 mNm |
| Load speed | 1750 rpm | 5400 rpm | 5820 rpm |
| Load current | 35 mA | 150 mA | 510 mA |
| Max. output power | 0.34 W | 2.59 W | 3.91 W |
| Max. efficiency | 46.7 % | 62.5 % | 66.3 % |
| Back-EMF constant | 9.18 mV/rpm | 1.89 mV/rpm | 0.57 mV/rpm |
| Torque constant | 63.19 mNm/A | 17.07 mNm/A | 5.16 mNm/A |
| Speed/torque gradient | 383 rpm/mNm | 382 rpm/mNm | 270 rpm/mNm |
| Varistor | Yes | Yes | Yes |
| Weight | 48.5 g | 48.5 g | 50.5 g |
| Operating temperature range | -20～+80 | -20～+80 | -20～+80 |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
| Specification | C2430R23-0021 |
|---|---|
| Voltage | 24.0 V |
| Terminal resistance | 260 Ω |
| No-load speed | 2500 rpm |
| No-load current | 4 mA |
| Stall torque | 6.53 mNm |
| Stall current | 107 mA |
| Load torque | 1.96 mNm |
| Load speed | 1750 rpm |
| Load current | 35 mA |
| Max. output power | 0.34 W |
| Max. efficiency | 46.7 % |
| Back-EMF constant | 9.18 mV/rpm |
| Torque constant | 63.19 mNm/A |
| Speed/torque gradient | 383 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 48.5 g |
| Operating temperature range | -20～+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools

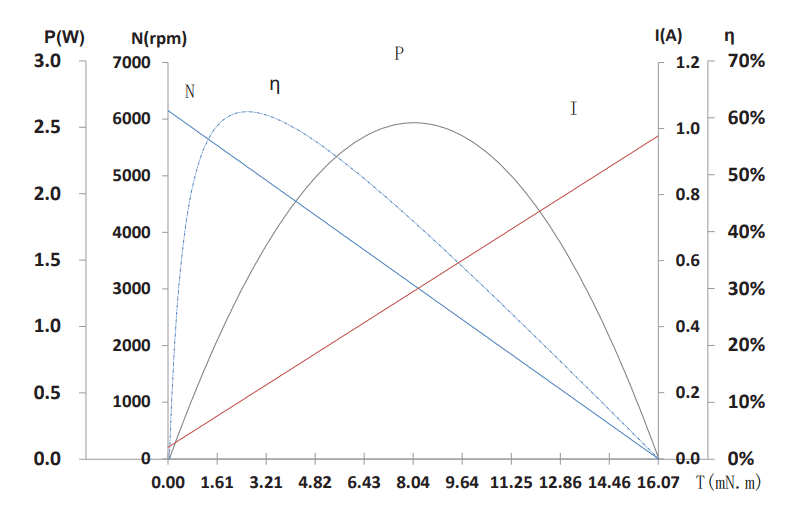

| Specification | C2430R43-0010 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 11.0 Ω |
| No-load speed | 6150 rpm |
| No-load current | 35 mA |
| Stall torque | 16.10 mNm |
| Stall current | 978 mA |
| Load torque | 1.96 mNm |
| Load speed | 5400 rpm |
| Load current | 150 mA |
| Max. output power | 2.59 W |
| Max. efficiency | 62.5 % |
| Back-EMF constant | 1.89 mV/rpm |
| Torque constant | 17.07 mNm/A |
| Speed/torque gradient | 382 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 48.5 g |
| Operating temperature range | -20～+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
| Specification | C2430R44-0039 |
|---|---|
| Voltage | 3.7 V |
| Terminal resistance | 0.8 Ω |
| No-load speed | 6350 rpm |
| No-load current | 130 mA |
| Stall torque | 23.50 mNm |
| Stall current | 4683 mA |
| Load torque | 1.96 mNm |
| Load speed | 5820 rpm |
| Load current | 510 mA |
| Max. output power | 3.91 W |
| Max. efficiency | 66.3 % |
| Back-EMF constant | 0.57 mV/rpm |
| Torque constant | 5.16 mNm/A |
| Speed/torque gradient | 270 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 50.5 g |
| Operating temperature range | -20～+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
