Description

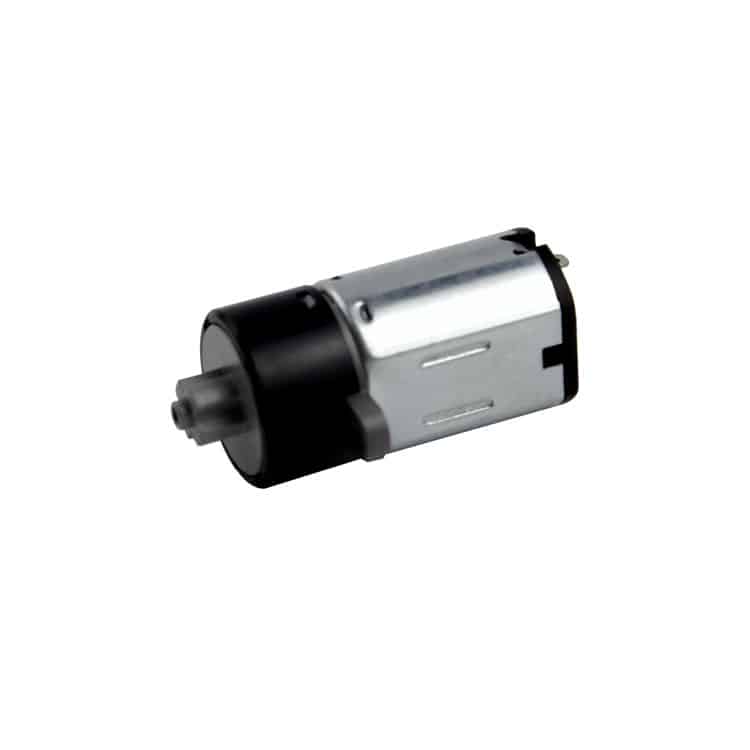

Planetary Gearbox Series
| Parameter | Unit | C1222-80-2.5-12PFC120-0228 |
|---|---|---|
| Voltage | V | 2.5 |
| Terminal resistance | Ω | 5.3 |
| No-load speed | rpm | 80 |
| No-load current | mA | 50 |
| Max torque | mNm | 50 |
| Load torque | mNm | 15 |
| Load speed | rpm | 56 |
| Load current | mA | 185 |
| Reduction ratio | 1/120 | |
| Weight | g | 6.5 |
| Operating temperature range | °C | -10~+70 |
Applications
medical equipment
security systems and locks
audio and visual producks
personal healthcare products
high-end hobby products
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
