Description

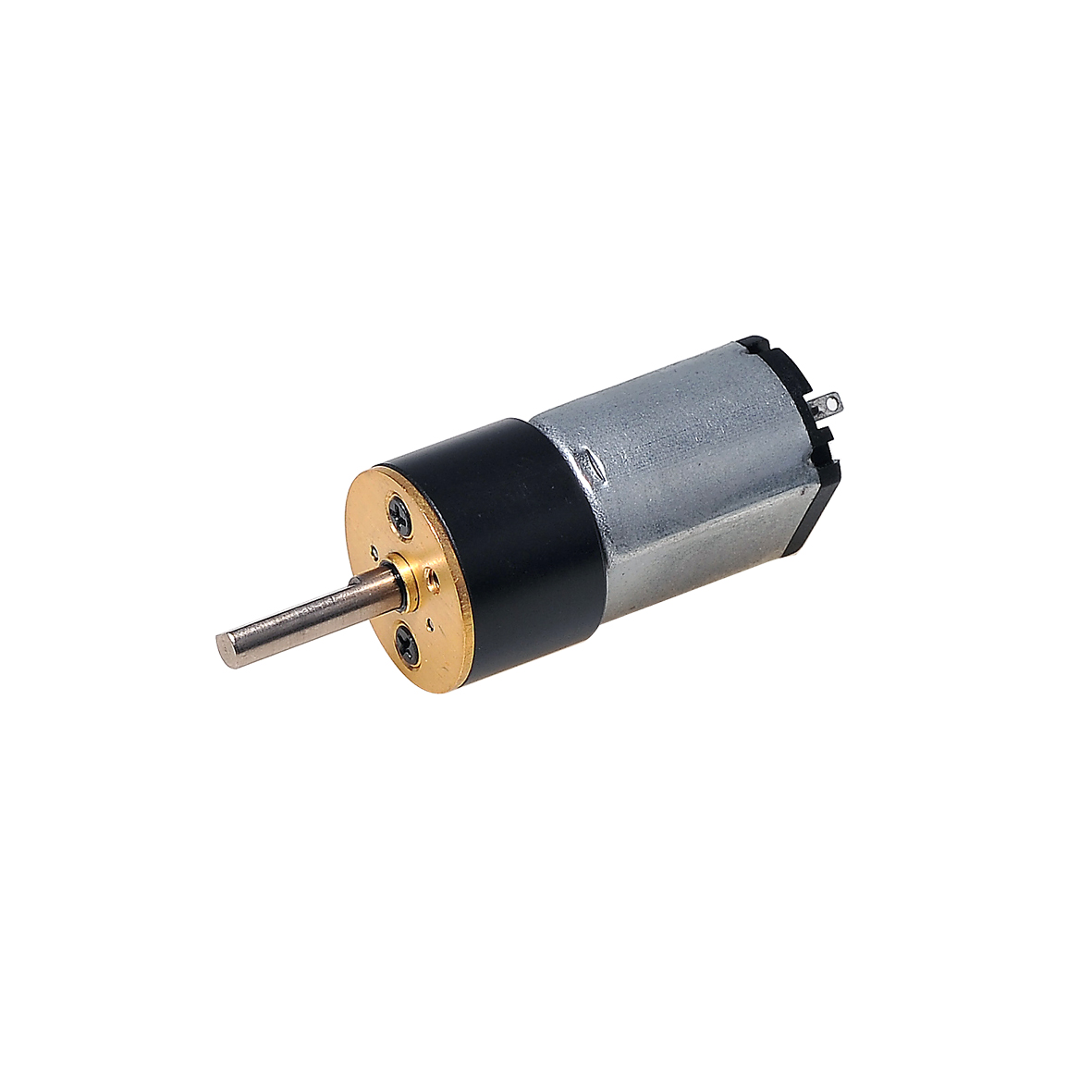

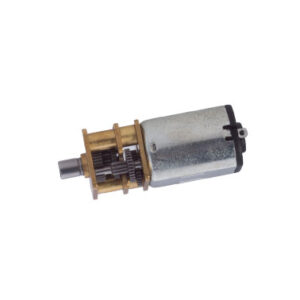

Spur Gearbox Series
| Parameter | Unit | C1215F13-0260 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ω | 10.8 |
| No-load speed | rpm | 9600 |
| No-load current | mA | 40 |
| Stall torque | mNm | 0.7 |
| Stall current | mA | 274 |
| Load torque | mNm | 0.29 |
| Load speed | rpm | 5500 |
| Load current | mA | 140 |
| Max. output power | W | 0.18 |
| Max. efficiency | % | 44.8 |
| Back-EMF constant | mV/rpm | 0.27 |
| Torque constant | mNm/A | 2.99 |
| Speed/torque gradient | rpm/mNm | 13714 |
| Rotor inertia | gcm² | 0.3 |
| Weight | g | 5.1 |
| Operating temperature range | °C | -10~+80 |
Motor Characteristics
Motor Characteristics
| Gearbox stages | Unit | 2 | 4 | 4 | 5 | 5 | 7 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 3.5.10 | 17.20.30.36 | 50.63 | 100.150.210 | 250.298.380 | 372.625.1000 |
| Max. rated torque | mNm | 20 | 30 | 40 | 60 | 80 | 100 |
| Max. momentary torque | mNm | 60 | 90 | 120 | 180 | 240 | 300 |

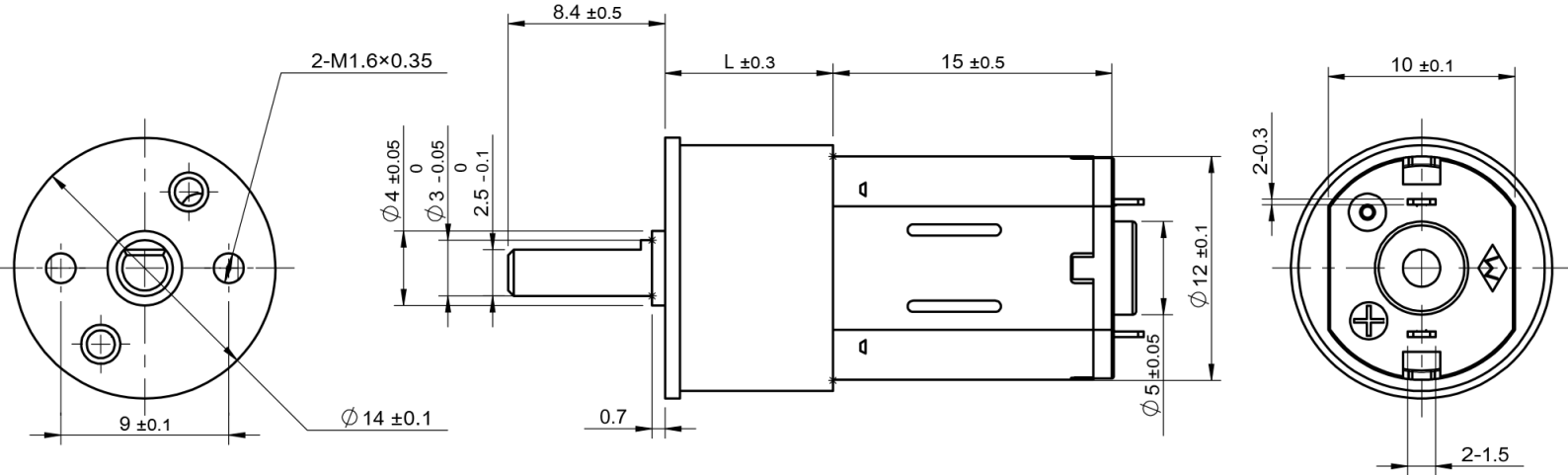

| Length（L） | mm | 9 | 9 | 9 | 9 | 9 | 12 |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
