Description
Planetary Gearbox Series
| Parameter | Unit | BO4326NBH2B01-92-48.0 |
|---|---|---|
| Voltage | V | 48.0 |
| Terminal resistance | Ω | 1 |
| No-load speed | rpm | 9200 |
| No-load current | mA | 0.3 |
| Stall torque | mNm | 2361 |
| Stall current | A | 48 |
| Load torque | mNm | 192 |
| Load speed | rpm | 7000 |
| Load current | mA | 3.6 |
| Max. output power | W | 569 |
| Max. efficiency | % | 84.8 |
| Back-EMF constant | mV/rpm | 5.18 |
| Torque constant | mNm/A | 48.5 |
| Speed/torque gradient | rpm/mNm | 3.9 |
| Rotor inertia | gcm² | 153 |
| Weight | g | 132 |
| Operating temperature range | °C | -10~+80 |
Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 3.65~8.63 | 14~58 | 67~393 | — | — | — |
| Max. rated torque | mNm | 3000 | 7500 | 15000 | — | — | — |
| Max. momentary torque | mNm | 6000 | 15000 | 30000 | — | — | — |

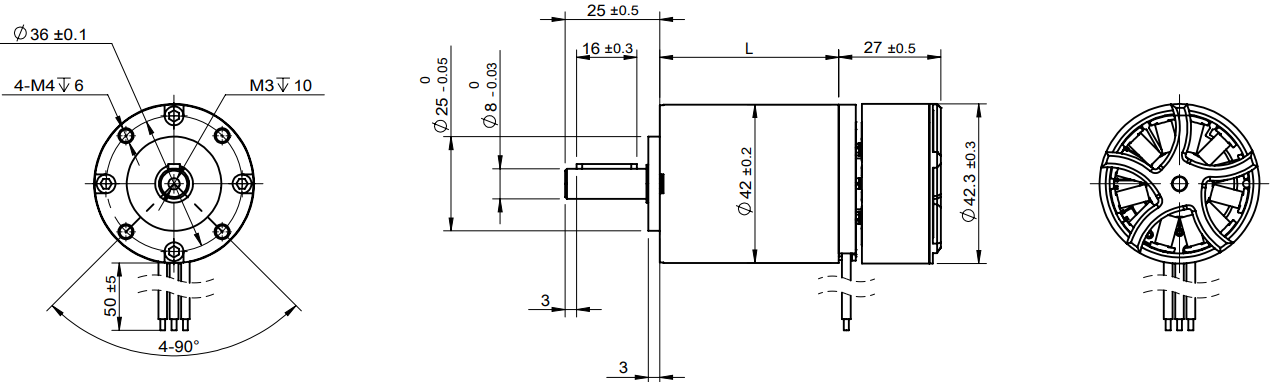

| Length（L） | mm | 33.8 | 47.4 | 61 | — | — | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technologyGear processing technology | — | Plastic injection | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
