Description

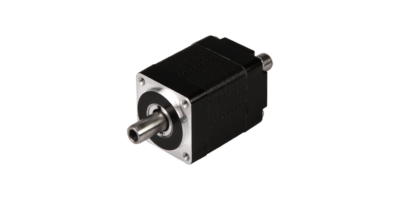

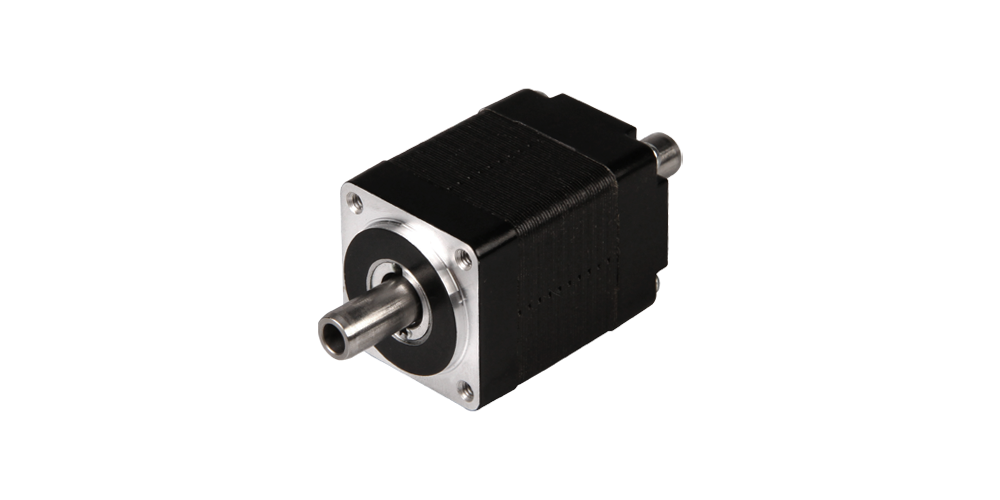

HSSM – Size 8 [20mm] Hollow Shaft Stepper Motor is engineered for high precision motion control in compact automation environments. Offering a maximum holding torque of 0.02 N·m, this size 8 (20mm) stepper motor features a hollow shaft construction, enabling easy cable routing, integration of through-shaft assemblies, or use with hollow type encoders.
- Compact Form Factor: 20mm frame size for integration in space-restricted systems.
- Customizable Options: Supports special windings, shaft modifications, and a range of encoder assemblies (compatible with EK1, EK5, and KPL28 encoder types) to adapt to specific control or feedback requirements.
- Precision Performance: Ensures reliable step accuracy and consistent performance suited to positioning, indexing, and small-scale automation tasks.
- Application Flexibility: Ideal for robotics, medical devices, miniature conveyors, and instruments where compact dimensions and hollow shaft design offer clear advantage.
- Easy Integration: The hollow shaft allows streamlined installation and unique mechanical adaptability not typically found in conventional stepper motors.
For special winding requirements, customized shafts, or integration of hollow type encoders, please contact KOCO for tailored solutions. The HSSM Size 8 delivers an optimal blend of size, function, and customization for advanced motion control needs.
