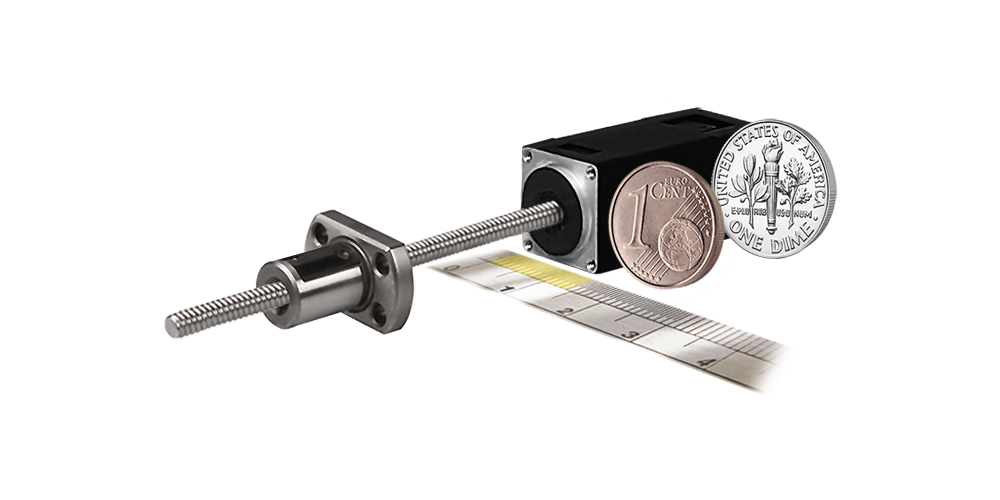

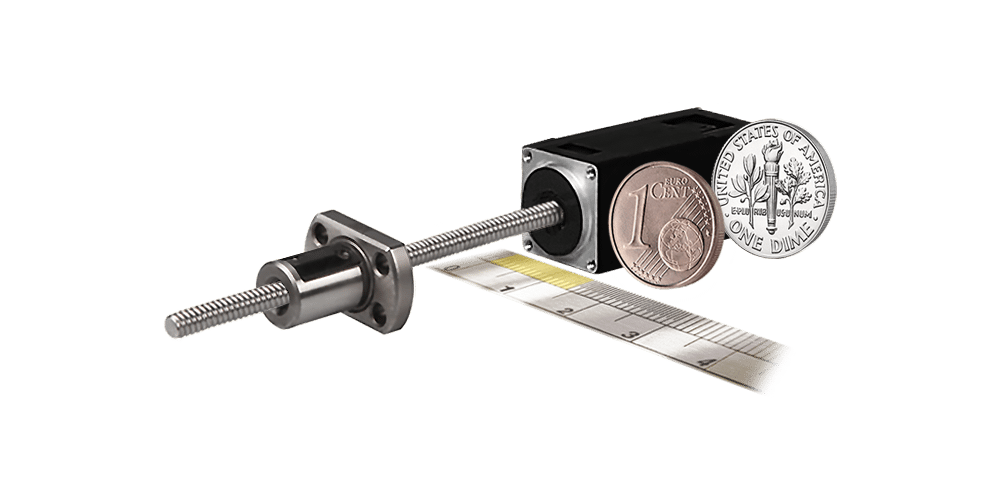

The SBSLA Size 6 [14mm] is KOCO’s most compact Stepper Ball Screw Linear Actuator, offering precision motion in a miniature form factor. Standard screw types (0401, 0402), right-hand thread, and hardened SCM415H materials ensure reliability. Customizable screw end machining and encoder options provide flexibility. Ideal for tight-space automation, medical devices, and miniature equipment requiring accurate, repeatable linear positioning.

SKU: SBSLA – Size 6 [14mm]-6E2103 Category:

Description

SBSLA – Size 6 [14mm] represents KOCO’s smallest series of Stepper Ball Screw Linear Actuators, engineered for high-precision linear motion within the most confined spaces.

  • Compact Design: With a 14mm form factor, this actuator suits applications where space is at a premium, such as laboratory automation, micro-positioning stages, optical devices, and compact medical equipment.
  • Technical Specifications:
    • Screw types: 0401 and 0402
    • Ball diameter: Ø0.8 mm
    • Right-hand thread, single-thread configuration
    • Shaft root diameter: Ø3.3 mm
    • Material: SCM415H with HRC58~62 surface hardness and anti-rust oil finish
    • Grade: C7 for precise linear motion
    • Dynamic load (BS0401): 560 N; Static load: 790 N
    • Dynamic load (BS0402): 420 N; Static load: 570 N

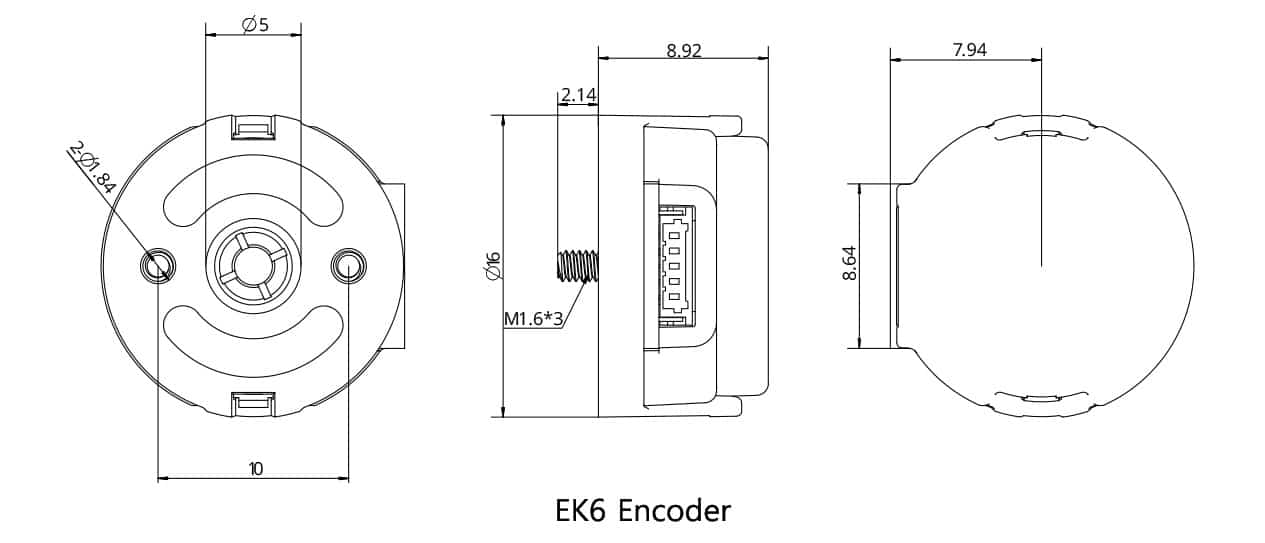

  • Custom Options: Multiple screw end machining options (smooth, threaded, or custom), industry-standard encoder compatibility (EK6), and available external actuator configuration.
  • Key Advantages:
    • High load capacity and repeatability in a miniaturized package
    • Versatility for OEM integration and custom mechanical interfacing
    • Reliable anti-corrosion and durable operation

Engineered for demanding motion control applications where size, reliability, and precision are critical, the SBSLA Size 6 family is the solution of choice for innovative automation and next-generation device designs.
