Especially Vertical applications or holding motors from sudden power-off status, DINGS’ standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.
All series of brakes are DC24V based magnetic brakes and Max. 2Millions of cycles guaranteed under very low noise as 60db.
Especially Vertical applications or holding motors from sudden power-off status, DINGS’ standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.
All series of brakes are DC24V based magnetic brakes and Max. 2Millions of cycles guaranteed under very low noise as 60db.

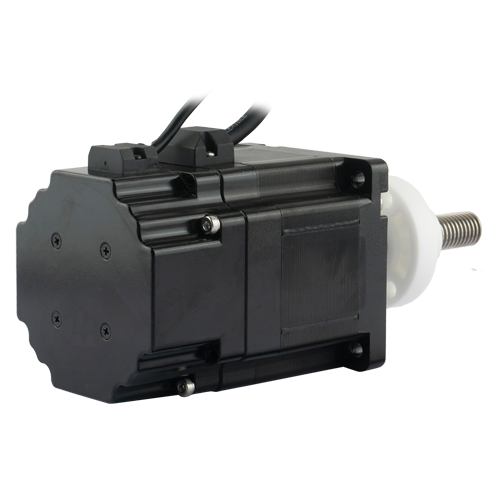

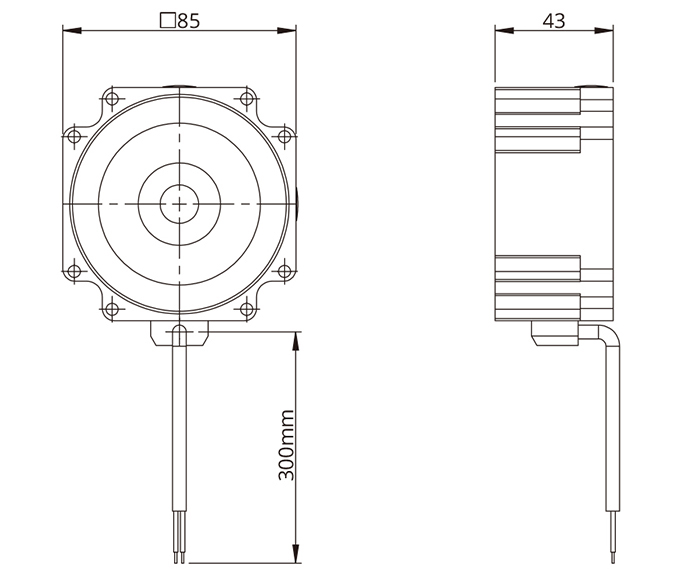

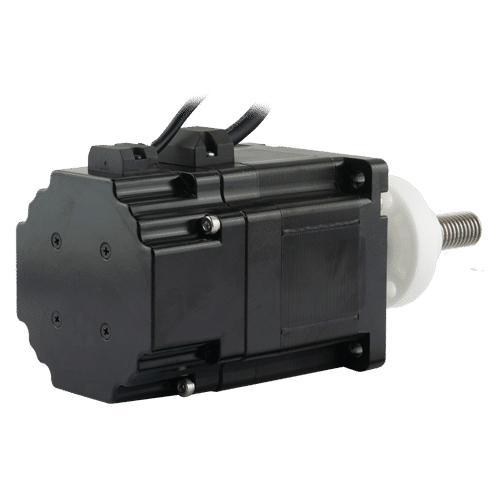

| Specification | 5.0N·m for Size 34 Motor |
|---|---|
| Rated Voltage | DC24V +/- 5% V |
| Resistance | 80 +/- 5% Ω |
| Power consumption | 6 W |
| Hold Torque | > 5 Nm |
| Insulation Class | B |
| Insulation Resistance | >100Mohm (DC500V) |
| Dielectrical Strength | 1000 VAC for 1 second |
| Retraction time | 50 ms |
| Release time | 30 ms |
| Gyration gap | <1° |
| Emergency brake time | > 200 times |
| Lifetime | > 2,000,000 times |
| Noise Level | <60db |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
