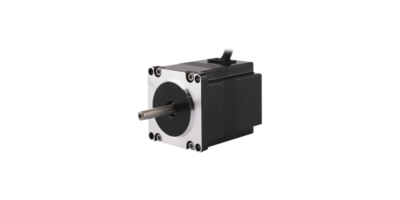

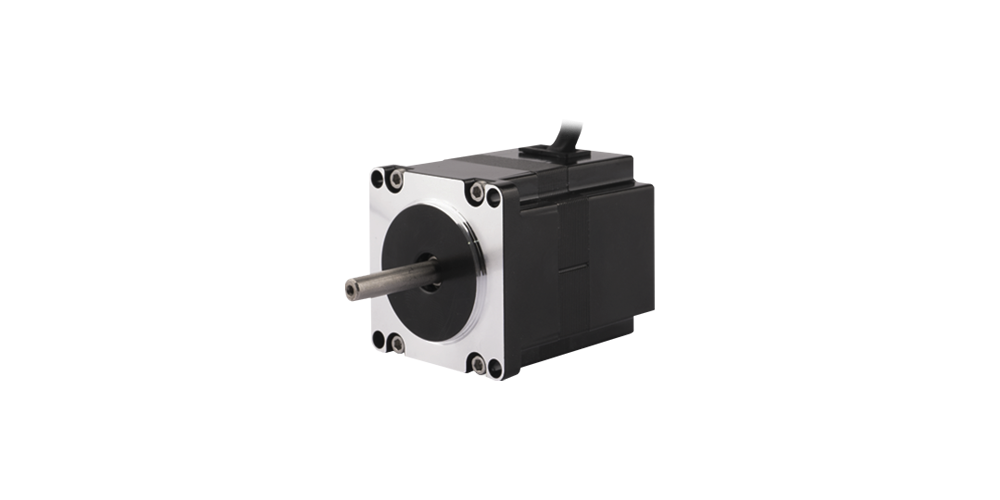

42mm Brushless DC Motor has Max. 0.185N·m rated torque and triple stack 42mm Motor can generate 58.1W capacity of rated power.
Single and double stack motor has Star winding connection and for triple stack motor has delta winding connector, all 42mm Brushless DC Motors are 5 pole pairs motors.
Hall sensors feed back method as standard and also additional incremental encoder is available.
42mm Brushless DC Motor has Max. 0.185N·m rated torque and triple stack 42mm Motor can generate 58.1W capacity of rated power.
Single and double stack motor has Star winding connection and for triple stack motor has delta winding connector, all 42mm Brushless DC Motors are 5 pole pairs motors.
Hall sensors feed back method as standard and also additional incremental encoder is available.

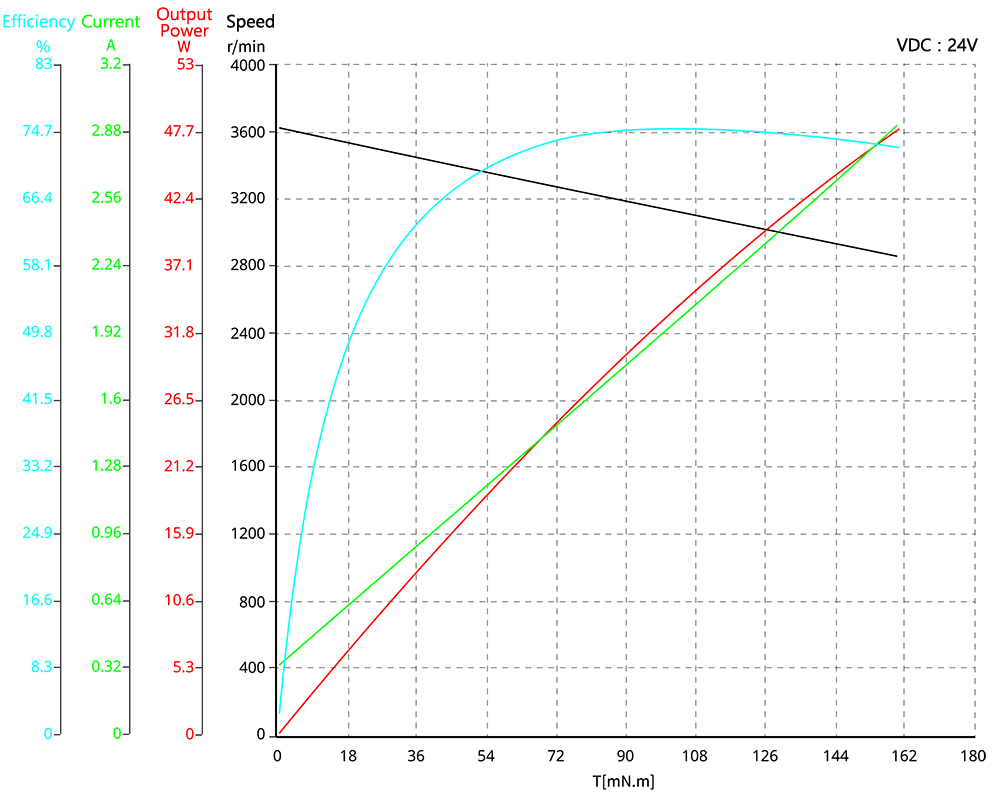

| Specification | 42ZWS63X-1 |
|---|---|
| Motor Length | 63 mm |
| Mounting Hole | 36(±0.2） mm |
| Motor Shaft | 25（±0.5） mm |
| Pole Pairs | 5 |
| Phase Resistance | 1.261 Ω |
| Phase Inductance | 0.586 mH |
| Winding Connection | Star |
| Insulation Class | B |
| Duty Type | S2 |
| Feedback Method | Hall Sensors |
| Commutation Angle | 120° |
| Insulation Strength (Withstand Voltage) | 500VAC/1KHz/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Weight | 380 g |
| Rated Voltage | 24 V |
| Rated Power | 39.3 W |
| Rated Torque | 0.125 Nm |
| Rated Speed | 3000 RPM |
| Rated Current | 2.4 A |
| No Load Speed | 4000 RPM |
| No Load Current | 0.3 A |
| Motor Efficiency | 77.6 % |
| Noise (Ambient noise 20db, test distance 1M) | ＜50 dB |
| Enclosure – Ambient Thermal Resistance | 0.38 K/W |
| Motor Thermal Time Constant | 3.1 min |
| Ambient Temperature | 31.3 °C |
| Maximum Winding Temperature | 68.5 °C |
| Torque Constant | 0.052 N·m/A |
| Back-EMF Constant /Effective Value | 5.44 V/Krpm |
| Peak Torque | 0.375 Nm |
| Peak Current | 7.2 A |
| Inertia Moment | 0.1 kg·cm² |
