Description

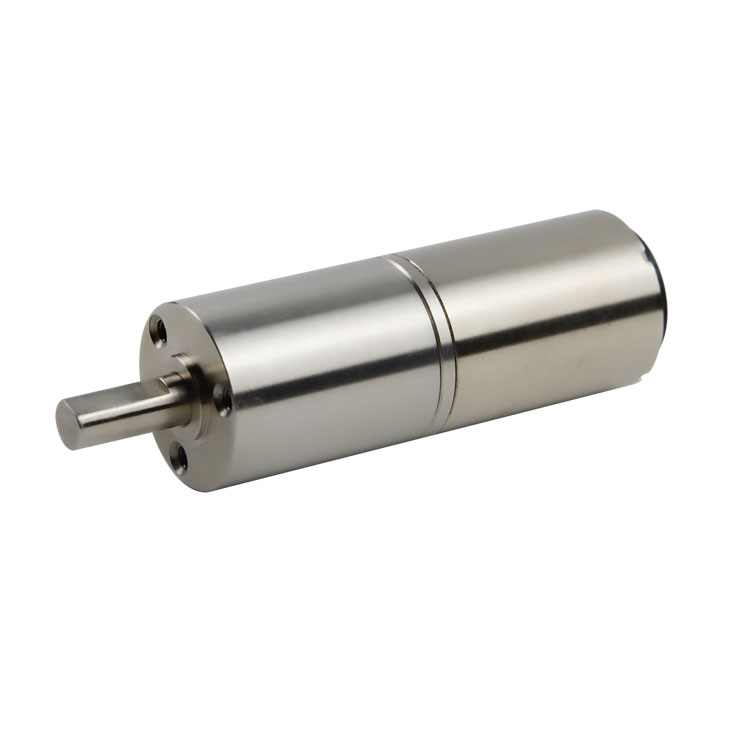

Planetary Gearbox Series
| Parameter | Unit | 2232N5M2B08-63-6.0 |
|---|---|---|
| Voltage | V | 6.0 |
| Terminal resistance | Ω | 2.9 |
| No-load speed | rpm | 6300 |
| No-load current | A | 0.02 |
| Stall torque | mNm | 18.5 |
| Stall current | A | 2.07 |
| Load torque | mNm | 4 |
| Load speed | rpm | 4940 |
| Load current | A | 0.46 |
| Max. output power | W | 3 |
| Max. efficiency | % | 81 |
| Back-EMF constant | mV/rpm | 0.9 |
| Torque constant | mNm/A | 9 |
| Speed/torque gradient | rpm/mNm | 300 |
| Rotor inertia | gcm² | 4.4 |
| Weight | g | 55 |
| Operating temperature range | °C | -10~+80 |
Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 5 | 18~25 | 66~136 | 246~735 | 1079~3968 | — |
| Max. rated torque | mNm | 100 | 300 | 400 | 500 | 600 | — |
| Max. momentary torque | mNm | 300 | 900 | 1200 | 1500 | 1800 | — |

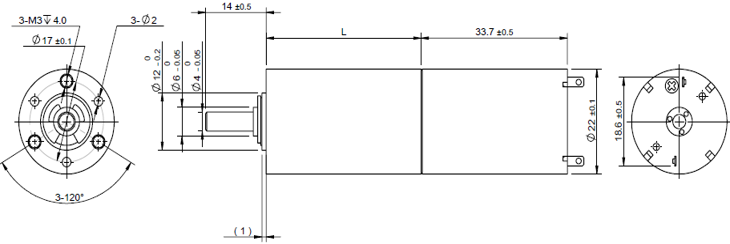

| Length（L） | mm | 23.3 | 29.5 | 35.7 | 41.9 | 48.1 | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Powder metallurgy | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
