Description

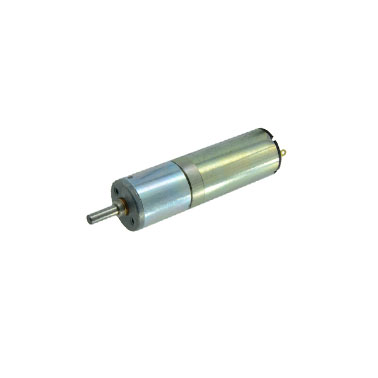

Spur Gearbox Series
| Parameter | Unit | 1627N5M21-113-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ω | 11.8 |
| No-load speed | rpm | 11300 |
| No-load current | mA | 13 |
| Stall torque | mNm | 10.1 |
| Stall current | mA | 1020 |
| Nominal torque | mNm | 1.5 |
| Nominal speed | rpm | 9620 |
| Nominal current | mA | 160 |
| Max. output power | W | 3 |
| Max. efficiency | % | 79 |
| Back-EMF constant | mV/rpm | 1 |
| Torque constant | mNm/A | 10 |
| Speed/torque gradient | rpm/mNm | 1100 |
| Rotor inertia | gcm² | 0.7 |
| Weight | g | 25 |
| Operating temperature range | °C | -10~+80 |
Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 2 | 3 | 4 | 4 | 5 |
|---|---|---|---|---|---|---|
| Reduction ratio | 10 | 21.34 | 59.75 | 105.146 | 203.257.294.360 | |
| Max. rated torque | mNm | 20 | 30 | 50 | 80 | 100 |
| Max. momentary torque | mNm | 60 | 90 | 150 | 240 | 300 |

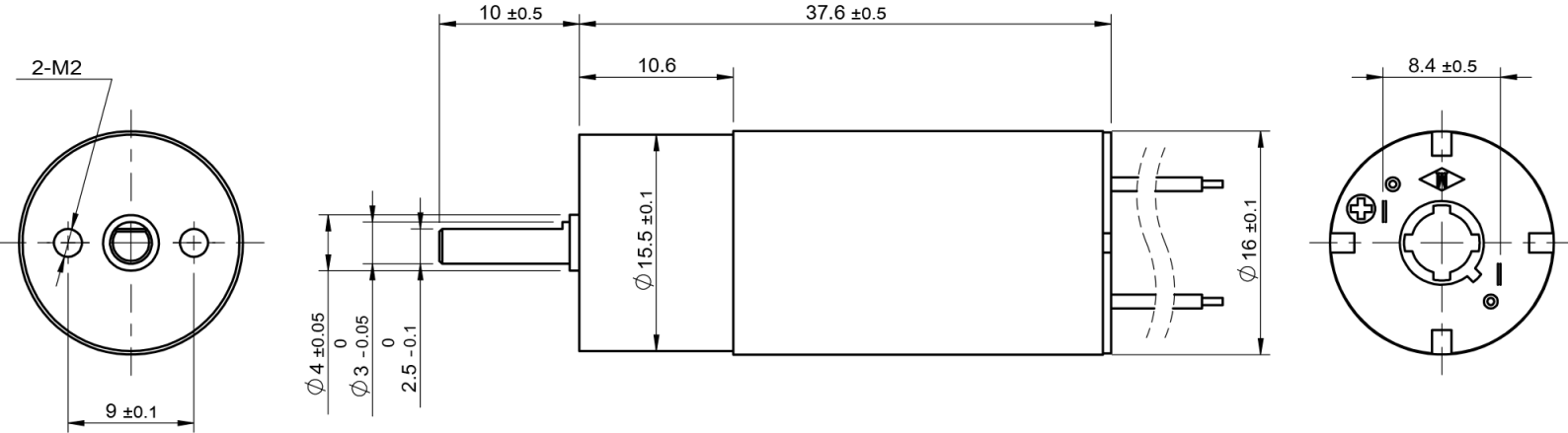

| Length（L） | mm | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
