Description

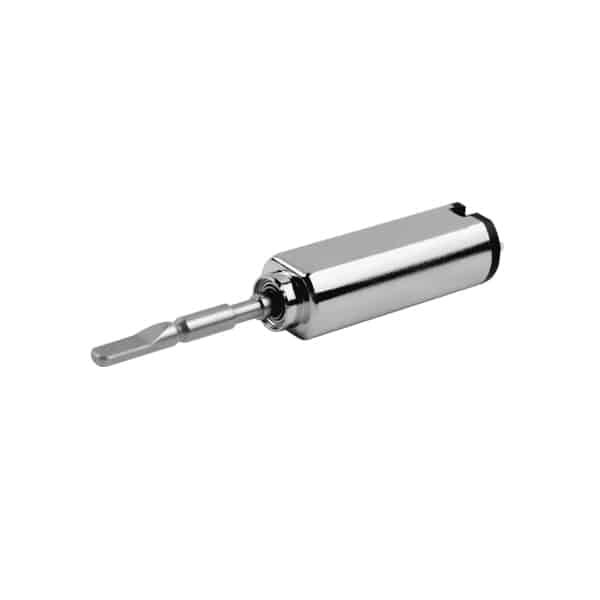

1239ZDF Series: 12mm DC Sonic Motors
The 1239ZDF family is designed for applications demanding high-frequency vibration and compact integration, such as electric toothbrushes, health care devices, and cleaning equipment. With a nominal voltage of 3.7V, these motors deliver rapid response and efficient power consumption in space-constrained environments.

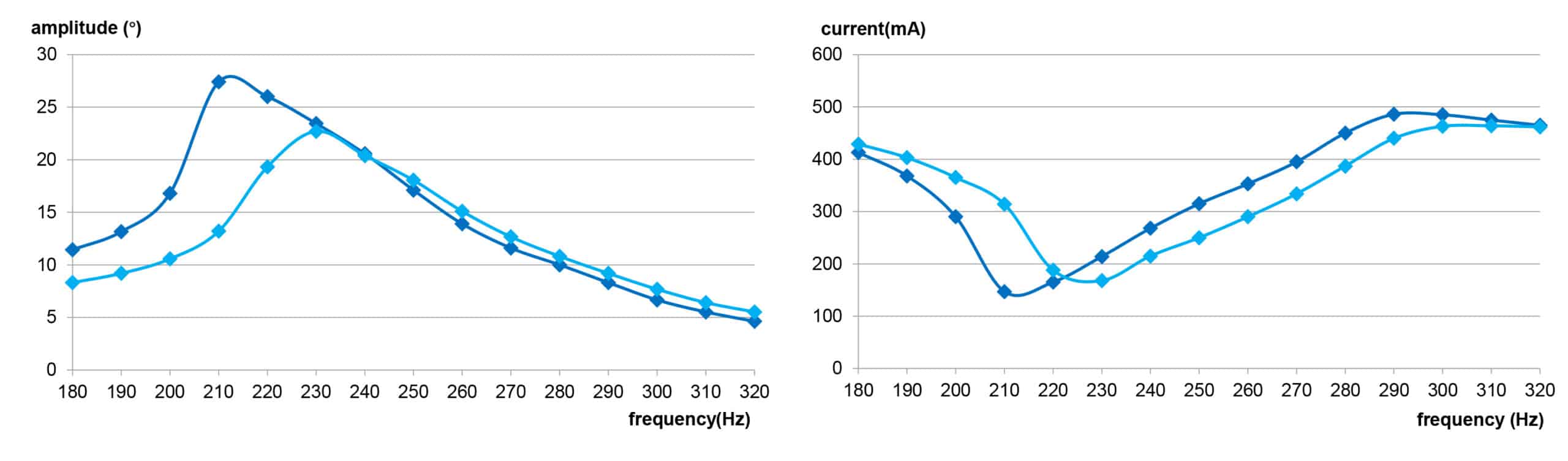

- High-Performance Vibration: Operating frequency ranges from 180–350 Hz, with no-load vibration rates up to 40,800 times/minute (model dependent), ensuring thorough cleaning and stimulation.
- Consistent Torque Output: Robust starting torque of 11 mNm and reliable rated load handling for demanding, high-precision duty cycles.
- Energy Efficient: No-load current from 130–140 mA and low load currents tailored for battery-driven devices.

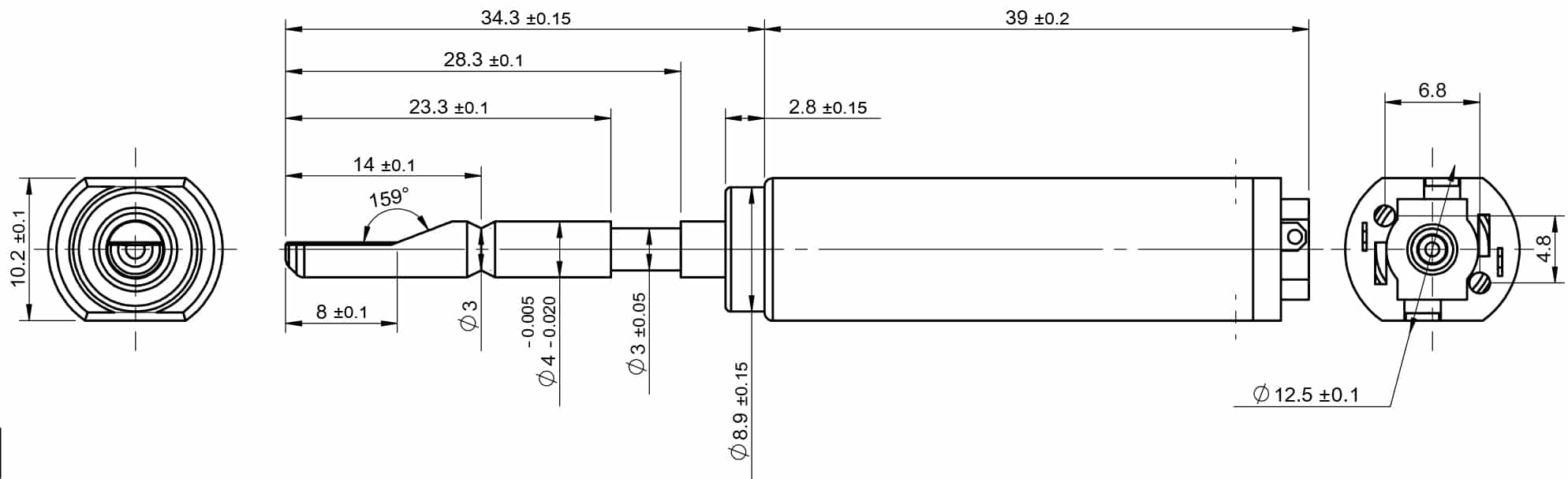

- Compact & Lightweight: Weighing only 16.7–16.8g and engineered for easy integration into portable or miniaturized products.
- Flexible Integration: Options include various shaft lengths and custom coil designs to meet specific OEM requirements.
- Wide Temperature Operation: Perform reliably from -10°C to +60°C, suiting harsh or variable field conditions.
Applications: Electric toothbrushes, health care equipment, and other compact, precision cleaning solutions. Choose the 1239ZDF series for high-frequency, reliable, and customizable motion—backed by robust DC sonic technology.
