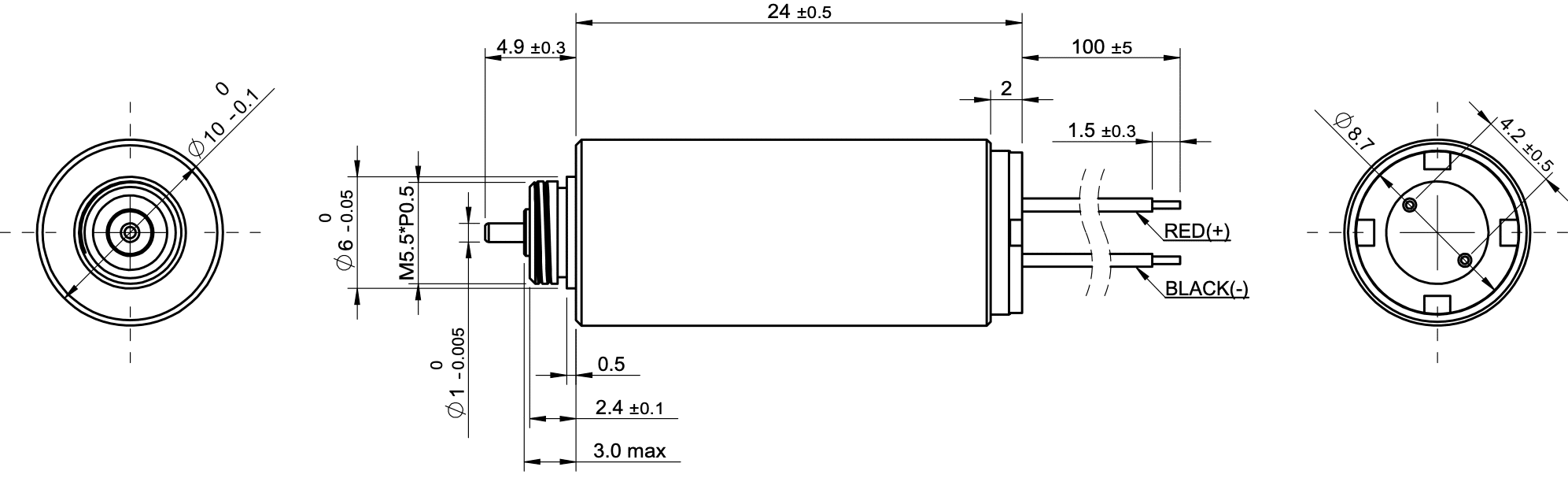

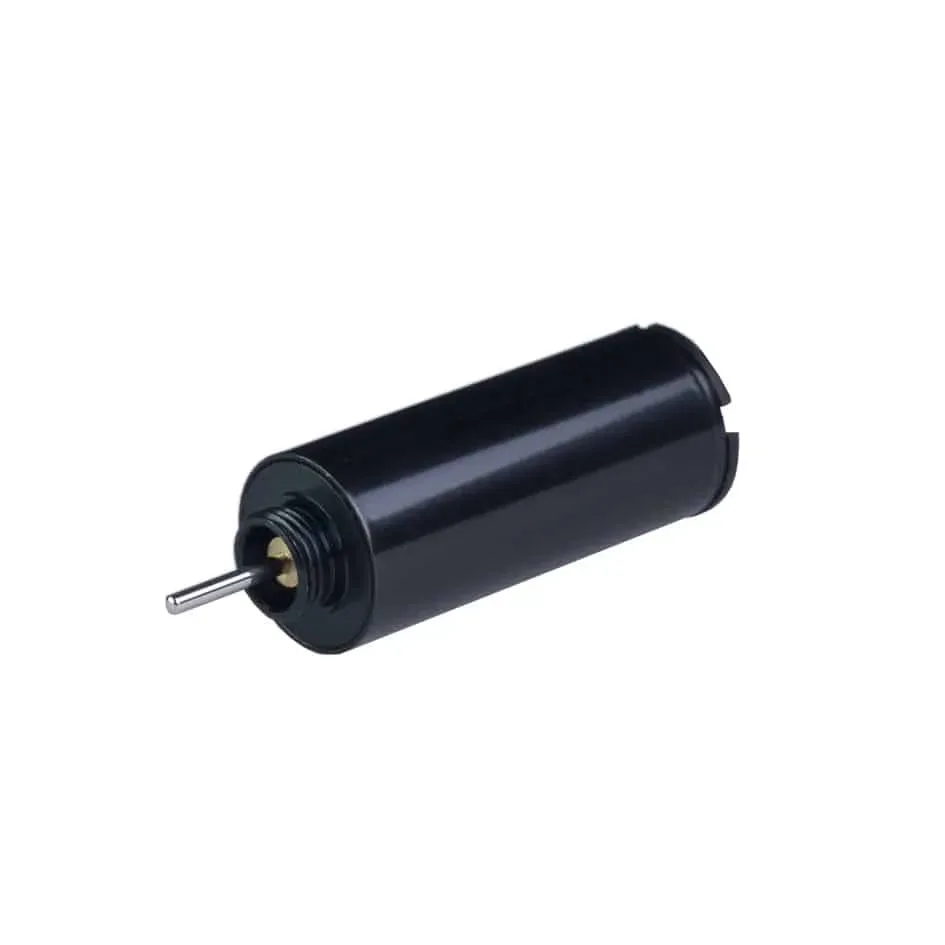

The 1024N5M series features a 10mm coreless DC micro motor with precious metal commutation, providing exceptional efficiency and smooth operation. Ideal for applications requiring precision and compactness, such as medical devices, robotics, healthcare products, and industrial automation. Customization options include lead wires length, shaft length, special coils, gear heads, and encoder integration for versatile design adaptability.
| Parameter | Unit | 1024N5M02-130-6.0 | 1024N5M05-150-12.0 | 1024N5M07-95-3.0 |
|---|---|---|---|---|
| Voltage | V | 6.0 | 12.0 | 3.0 |
| Terminal resistance | Ω | 6.5 | 22.5 | 4.1 |
| No-load speed | rpm | 13000 | 15000 | 9500 |
| No-load current | mA | 20 | 10 | 15 |
| Stall torque | mNm | 3.9 | 3.9 | 2.1 |
| Stall current | mA | 920 | 530 | 730 |
| Nominal torque | mNm | 1.0 | 1.0 | 0.6 |
| Nominal speed | rpm | 9650 | 11150 | 6800 |
| Nominal current | mA | 250 | 140 | 220 |
| Max. output power | W | 1.32 | 1.53 | 0.53 |
| Max. efficiency | % | 73 | 74 | 73 |
| Back-EMF constant | mV/rpm | 0.5 | 0.8 | 0.3 |
| Torque constant | mNm/A | 4.3 | 7.5 | 3.0 |
| Speed/torque gradient | rpm/mNm | 3300 | 3800 | 4500 |
| Rotor inertia | gcm² | 0.09 | 0.09 | 0.09 |
| Weight | g | 9.2 | 9.2 | 9.2 |
| Thermal resistance housing-ambient | K/W | 33.6 | 33.6 | 33.6 |
| Thermal resistance winding-housing | K/W | 36.8 | 36.8 | 36.8 |
| Thermal time constant motor | s | 113 | 113 | 113 |
| Thermal time constant winding | s | 90 | 90 | 90 |
| Operating temperature range | °C | -20~+85 | -20~+85 | -20~+85 |
| Thermal class of winding | °C | 130 | 130 | 130 |
| Axial play | mm | 0.01~0.15 | 0.01~0.15 | 0.01~0.15 |
| Radial play | mm | 0.012 | 0.012 | 0.012 |
| Axial load dynamic | N | 0.15 | 0.15 | 0.15 |
| Axial load static | N | 15 | 15 | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 | 0.4 | 0.4 |
| No. of pole pairs | 1 | 1 | 1 | |
| Bearings | 2 sleeve bearings | 2 sleeve bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | metal 5 segments | metal 5 segments | |
| Protection class | IP | 40 | 40 | 40 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1024N5M02-130-6.0 |
|---|---|---|
| Voltage | V | 6.0 |
| Terminal resistance | Ω | 6.5 |
| No-load speed | rpm | 13000 |
| No-load current | mA | 20 |
| Stall torque | mNm | 3.9 |
| Stall current | mA | 920 |
| Nominal torque | mNm | 1.0 |
| Nominal speed | rpm | 9650 |
| Nominal current | mA | 250 |
| Max. output power | W | 1.32 |
| Max. efficiency | % | 73 |
| Back-EMF constant | mV/rpm | 0.5 |
| Torque constant | mNm/A | 4.3 |
| Speed/torque gradient | rpm/mNm | 3300 |
| Rotor inertia | gcm² | 0.09 |
| Weight | g | 9.2 |
| Thermal resistance housing-ambient | K/W | 33.6 |
| Thermal resistance winding-housing | K/W | 36.8 |
| Thermal time constant motor | s | 113 |
| Thermal time constant winding | s | 90 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.01~0.15 |
| Radial play | mm | 0.012 |
| Axial load dynamic | N | 0.15 |
| Axial load static | N | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1024N5M05-150-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ω | 22.5 |
| No-load speed | rpm | 15000 |
| No-load current | mA | 10 |
| Stall torque | mNm | 3.9 |
| Stall current | mA | 530 |
| Nominal torque | mNm | 1.0 |
| Nominal speed | rpm | 11150 |
| Nominal current | mA | 140 |
| Max. output power | W | 1.53 |
| Max. efficiency | % | 74 |
| Back-EMF constant | mV/rpm | 0.8 |
| Torque constant | mNm/A | 7.5 |
| Speed/torque gradient | rpm/mNm | 3800 |
| Rotor inertia | gcm² | 0.09 |
| Weight | g | 9.2 |
| Thermal resistance housing-ambient | K/W | 33.6 |
| Thermal resistance winding-housing | K/W | 36.8 |
| Thermal time constant motor | s | 113 |
| Thermal time constant winding | s | 90 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.01~0.15 |
| Radial play | mm | 0.012 |
| Axial load dynamic | N | 0.15 |
| Axial load static | N | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | 1024N5M07-95-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ω | 4.1 |
| No-load speed | rpm | 9500 |
| No-load current | mA | 15 |
| Stall torque | mNm | 2.1 |
| Stall current | mA | 730 |
| Nominal torque | mNm | 0.6 |
| Nominal speed | rpm | 6800 |
| Nominal current | mA | 220 |
| Max. output power | W | 0.53 |
| Max. efficiency | % | 73 |
| Back-EMF constant | mV/rpm | 0.3 |
| Torque constant | mNm/A | 3.0 |
| Speed/torque gradient | rpm/mNm | 4500 |
| Rotor inertia | gcm² | 0.09 |
| Weight | g | 9.2 |
| Thermal resistance housing-ambient | K/W | 33.6 |
| Thermal resistance winding-housing | K/W | 36.8 |
| Thermal time constant motor | s | 113 |
| Thermal time constant winding | s | 90 |
| Operating temperature range | °C | -20~+85 |
| Thermal class of winding | °C | 130 |
| Axial play | mm | 0.01~0.15 |
| Radial play | mm | 0.012 |
| Axial load dynamic | N | 0.15 |
| Axial load static | N | 15 |
| Radial load at 3 mm from mounting face | N | 0.4 |
| No. of pole pairs | 1 | |
| Bearings | 2 sleeve bearings | |
| Commutator | metal 5 segments | |
| Protection class | IP | 40 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
