Iron Core Motors

Iron Core DC Motors are cost-effective motors for a wide variety of applications in almost any field.

35 products matching criteria

Sort:

|

View:

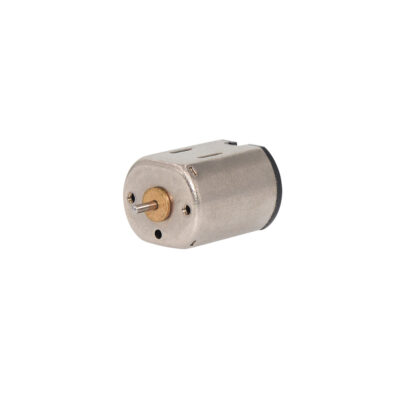

C1627F34AH-0055

Max. output power 0.85W

Max. efficiency 51.9%

Back-EMF constant 0.64mV/rpm

Torque constant 6.28mNm/A

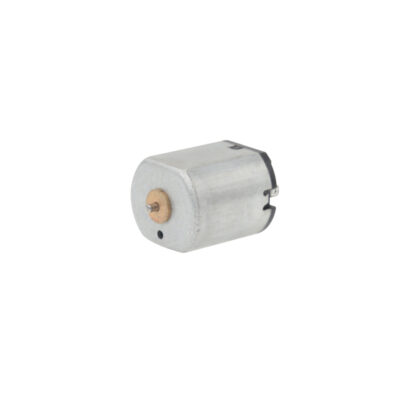

C1627F34AH-0063

Max. output power 0.72W

Max. efficiency 61.5%

Back-EMF constant 1.38mV/rpm

Torque constant 16.08mNm/A

C1627F34AH-0064

Max. output power 2.86W

Max. efficiency 56.7%

Back-EMF constant 0.29mV/rpm

Torque constant 2.45mNm/A

C1628R31-0108

Max. efficiency 47.1%

Torque constant 9.26mNm/A

Speed/torque gradient 1831rpm/mNm

C1718R14-0025

Max. output power 1.60W

Max. efficiency 60.6%

Back-EMF constant 0.31mV/rpm

Torque constant 3.27mNm/A

C1718R34B-0059

Max. output power 2.74W

Max. efficiency 61.1%

Back-EMF constant 0.45mV/rpm

Torque constant 4.08mNm/A

C1718R14B-0091

Max. output power 3.71W

Max. efficiency 57.2%

Back-EMF constant 0.42mV/rpm

Torque constant 3.77mNm/A

C1718R31B-13120

Max efficiency 57.5%

Torque constant 3.33mNm/A

Speed/torque gradient 2898rpm/mNm

C1718R31B-0110

Max efficiency 55.5%

Torque constant 6.62mNm/A

Speed/torque gradient 1930rpm/mNm

C1718R31B-0129

Max efficiency 54.8%

Torque constant 4.13mNm/A

Speed/torque gradient 1728rpm/mNm
