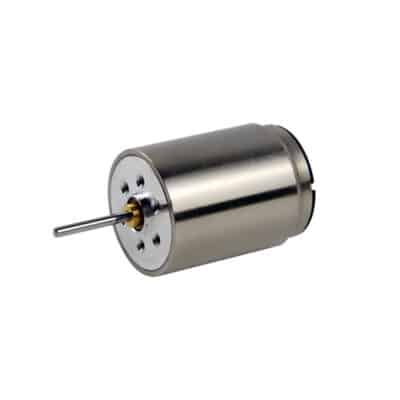

Name: 1925N9M - KOCO MOTION
SKU: 1925N9M

Specification	1925N9M01-69-6.0	1925N9M02-80-12.0	1925N9M03-85-24.0
Voltage	6.0 V	12.0 V	24.0 V
Terminal resistance	2.8 Ω	9.6 Ω	28.3 Ω
No-load speed	6900 rpm	8000 rpm	8500 rpm
No-load current	25 mA	15 mA	9 mA
Stall torque	17.4 mNm	17.5 mNm	22.4 mNm
Stall current	2140 mA	1250 mA	850 mA
Nominal torque	4.0 mNm	4.0 mNm	4.0 mNm
Nominal speed	5310 rpm	6170 rpm	6980 rpm
Nominal current	510 mA	300 mA	160 mA
Max. output power	3.1 W	3.7 W	5.0 W
Max. efficiency	80 %	79 %	81 %
Back-EMF constant	0.9 mV/rpm	1.5 mV/rpm	2.8 mV/rpm
Torque constant	8.2 mNm/A	14.2 mNm/A	26.7 mNm/A
Speed/torque gradient	400 rpm/mNm	460 rpm/mNm	380 rpm/mNm
Rotor inertia	0.6 g·cm²	0.6 g·cm²	0.6 g·cm²
Weight	30 g	30 g	30 g
Thermal resistance housing-ambient	22.4 K/W	22.4 K/W	22.4 K/W
Thermal resistance winding-housing	3.79 K/W	3.79 K/W	3.79 K/W
Thermal time constant motor	267 s	267 s	267 s
Thermal time constant winding	232 s	232 s	232 s
Operating temperature range	-20~+85	-20~+85	-20~+85
Thermal class of winding	130 °C	130 °C	130 °C
Axial play	0.02~0.15	0.02~0.15	0.02~0.15
Radial play	0.025 mm	0.025 mm	0.025 mm
Axial load dynamic	2.2 N	2.2 N	2.2 N
Axial load static	30 N	30 N	30 N
Radial load at 3 mm from mounting face	8 N	8 N	8 N
No. of pole pairs	1	1	1
Bearings	2 sleeve bearings	2 sleeve bearings	2 sleeve bearings
Commutator	metal 9 segments	metal 9 segments	metal 9 segments
Protection class	30 IP	30 IP	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1925N9M

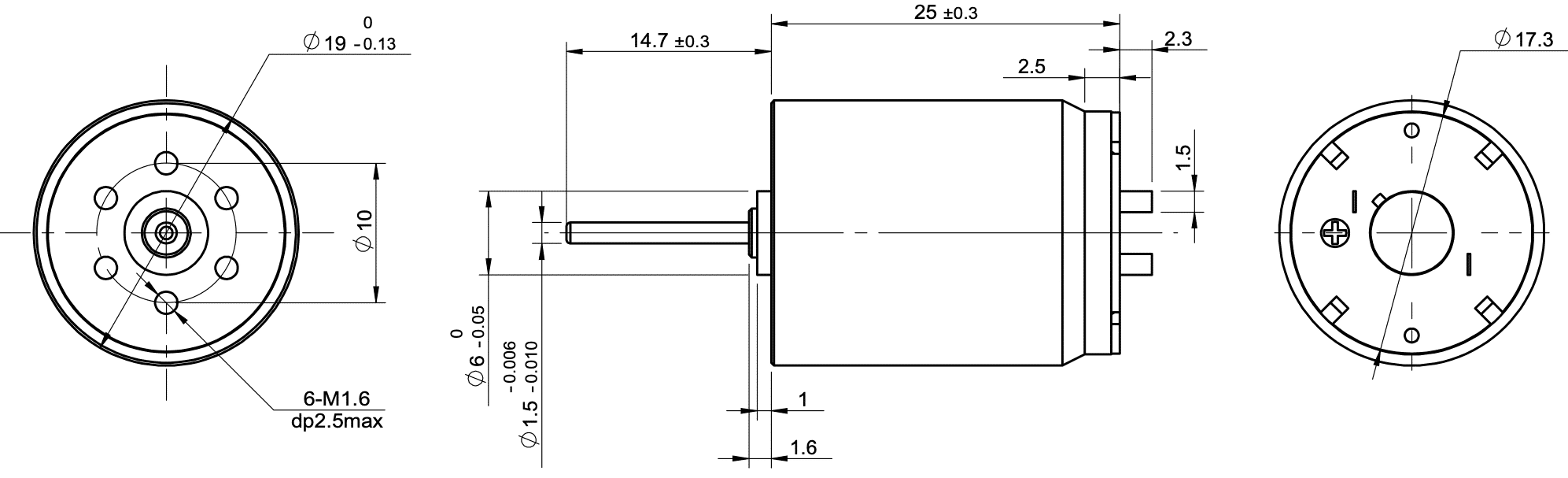

2D drawing 1925N9M (png, 150.12K)
