Description

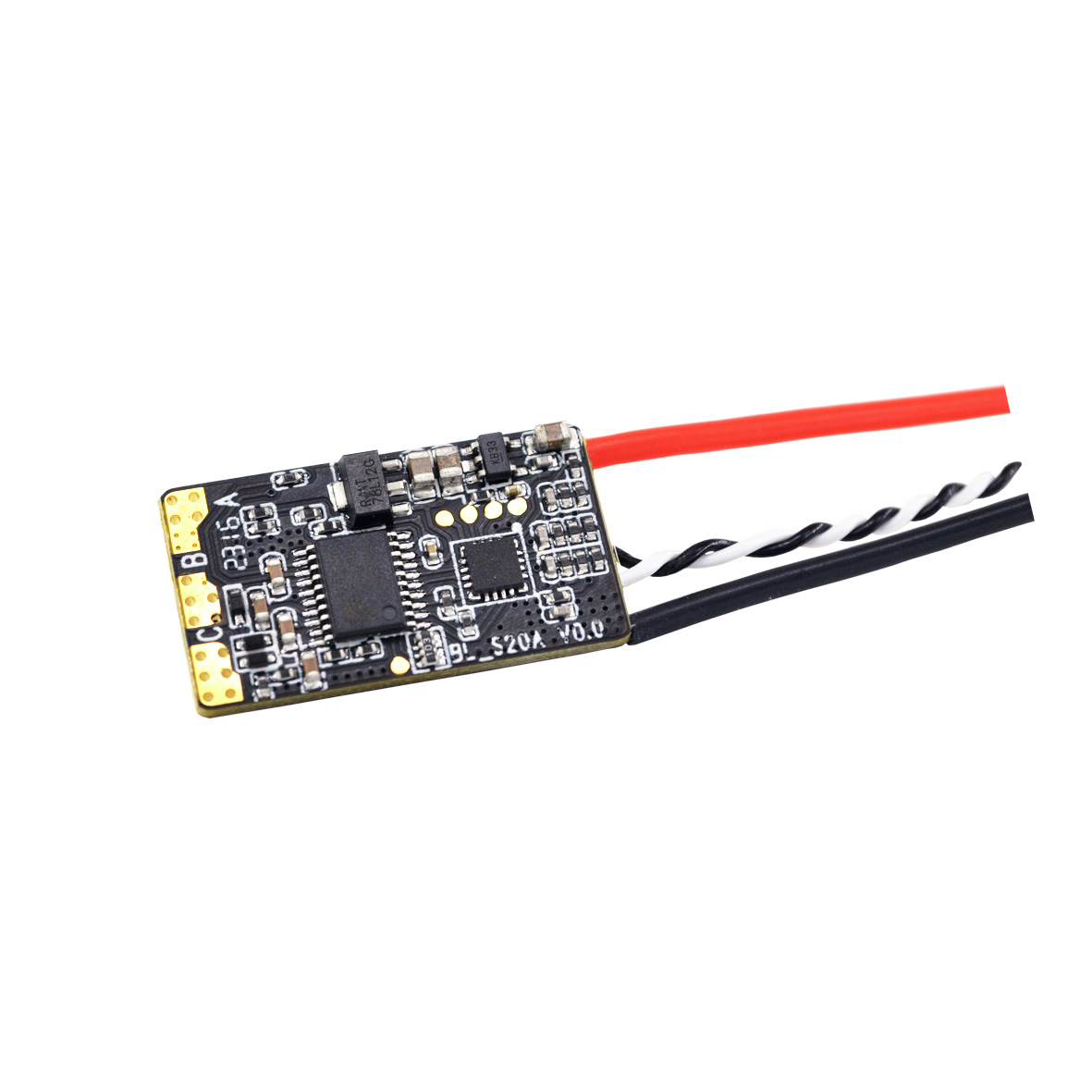

Xs630 Electronic Speed Controller (ESC) delivers precise, high-current motor control for advanced multi-rotor drone applications. Engineered to handle rigorous flight requirements, it combines robust electrical performance with a compact footprint, making it ideal for weight-sensitive or high-agility UAV builds.
- Continuous Current: 30A for consistent, reliable power delivery
- Peak Current: 39A (up to 10 seconds) to accommodate transient loads and aggressive maneuvers
- Voltage Compatibility: Supports 2–6S LiPo batteries, offering operational versatility across a wide range of UAV platforms
- BEC: No integrated Battery Eliminator Circuit, optimizing efficiency for dedicated power setups
- Lightweight Design: Weighs less than 45g; minimal impact on the drone’s total mass

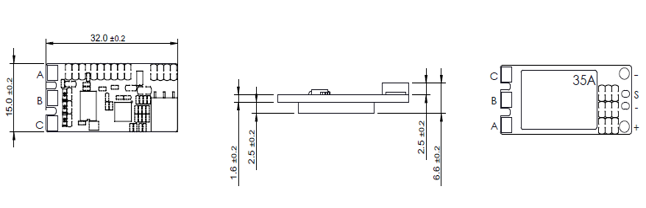

- Compact Dimensions: 32 × 15 × 6.6 mm, enabling flexible integration in dense multi-rotor frames
Developed specifically for multi-rotor drones, the Xs630 ESC is suitable for professional aerial cinematography, industrial inspection, agriculture, and UAV research. Its efficient thermal management and high current capability ensure optimal performance in demanding operations. By omitting an onboard BEC, it maximizes reliability and compatibility with custom power systems, making it the preferred choice for engineers and integrators seeking high-performance motor control in compact, lightweight UAV applications.
