Characteristics
| Parameter | Unit | VL1015N5M96-129-5.0 | VL1015N5M99-66-3.0 | VL1015N5M65-70-1.3 |
|---|---|---|---|---|
| Voltage | V | 5.0 | 3.0 | 1.3 |
| Terminal resistance | Ohm | 10.5 | 8.35 | 3.5 |
| Speed | rpm | 12900 | 6670 | 7000 |
| Current | mA | 80 | 137 | 140 |
| Starting voltage | V | 0.8 | 0.8 | 0.8 |
| Stall current | mA | 470 | 332 | 380 |
| Weight | g | 5.8 | 7.85 | 3.5 |
| Operating temperature range | °C | -20~+65 | -20~+65 | -20~+65 |
Applications
health care products
wearable products
mobile phones
tablet PC´s
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

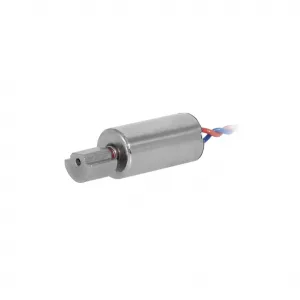

VL1015N5M
| Parameter | Unit | VL1015N5M96-129-5.0 |
|---|---|---|
| Voltage | V | 5.0 |
| Terminal resistance | Ohm | 10.5 |
| Speed | rpm | 12900 |
| Current | mA | 80 |
| Starting voltage | V | 0.8 |
| Stall current | mA | 470 |
| Weight | g | 5.8 |
| Operating temperature range | °C | -20~+65 |
Applications
health care products
wearable products
mobile phones
tablet PC´s
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | VL1015N5M99-66-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Terminal resistance | Ohm | 8.35 |
| Speed | rpm | 6670 |
| Current | mA | 137 |
| Starting voltage | V | 0.8 |
| Stall current | mA | 332 |
| Weight | g | 7.85 |
| Operating temperature range | °C | -20~+65 |
Applications
health care products
wearable products
mobile phones
tablet PC´s
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
VL1015N5M
| Parameter | Unit | VL1015N5M65-70-1.3 |
|---|---|---|
| Voltage | V | 1.3 |
| Terminal resistance | Ohm | 3.5 |
| Speed | rpm | 7000 |
| Current | mA | 140 |
| Starting voltage | V | 0.8 |
| Stall current | mA | 380 |
| Weight | g | 3.5 |
| Operating temperature range | °C | -20~+65 |
Applications
health care products
wearable products
mobile phones
tablet PC´s
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
