| Characteristics | VL0408N3M10-120-3.0 | VL0408N3M10-85-2.7 | VL0408N3M70-220-3.0 |
|---|---|---|---|
| Voltage | 3.0 V | 2.7 V | 3.0 V |
| Terminal resistance | 32 Ω | 32 Ω | 12.8 Ω |
| Speed | 12000 rpm | 8500 rpm | 20000 rpm |
| Current | 75 mA | 70 mA | 185 mA |
| Starting voltage | 1.4 V | 1.5 V | 1.5 V |
| Stall current | 95 mA | 100 mA | 230 mA |
| Weight | 0.8 g | 1.15 g | 0.85 g |
| Operating temperature range | -10～+65 | -10～+65 | -10～+65 |
Applications
wearable products
mobile phones
tablet PC´s
health care products

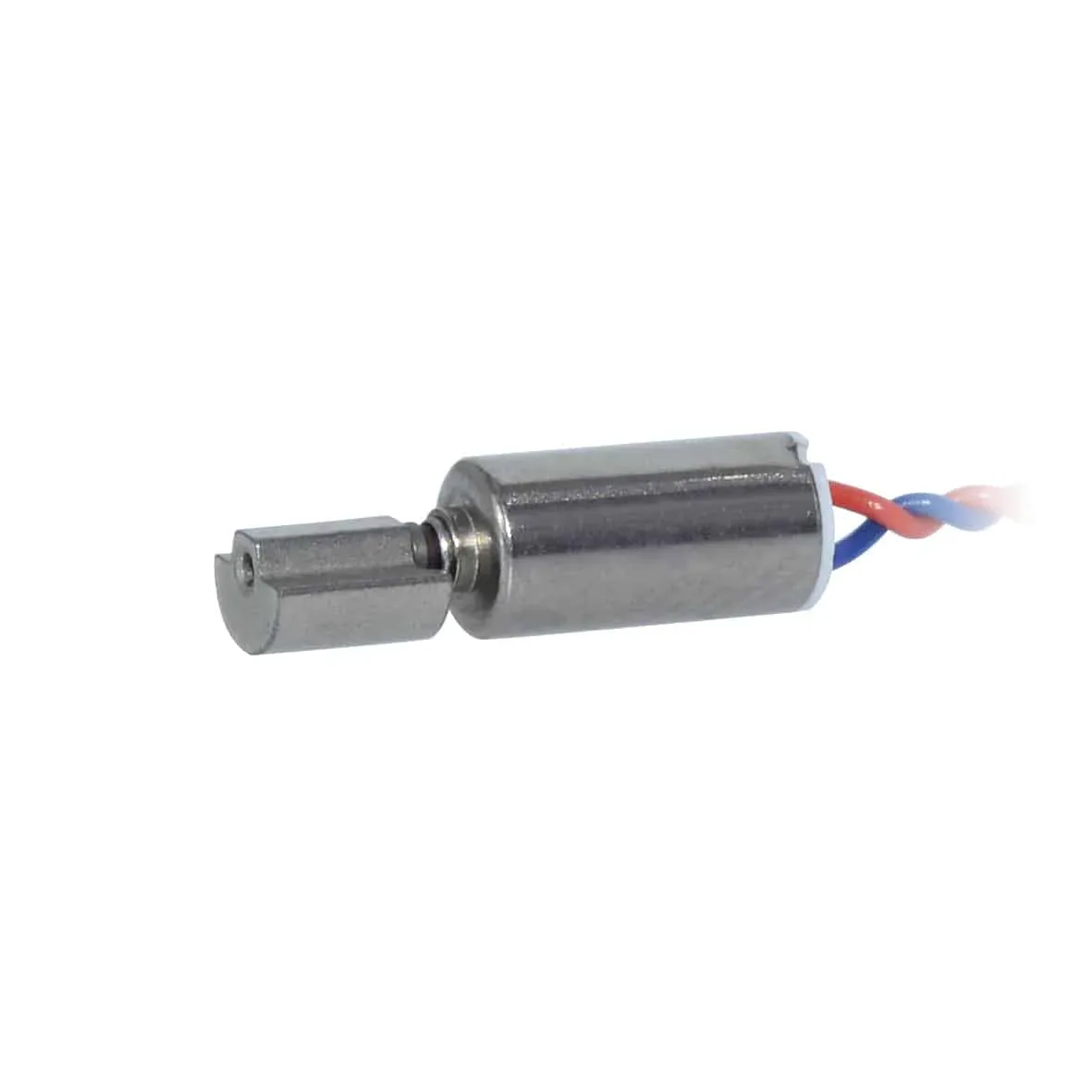

| Specification | VL0408N3M10-120-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 32 Ω |
| Speed | 12000 rpm |
| Current | 75 mA |
| Starting voltage | 1.4 V |
| Stall current | 95 mA |
| Weight | 0.8 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products

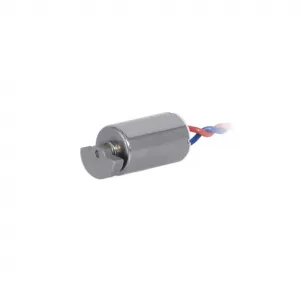

| Specification | VL0408N3M10-85-2.7 |
|---|---|
| Voltage | 2.7 V |
| Terminal resistance | 32 Ω |
| Speed | 8500 rpm |
| Current | 70 mA |
| Starting voltage | 1.5 V |
| Stall current | 100 mA |
| Weight | 1.15 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products

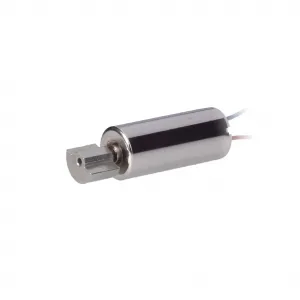

| Specification | VL0408N3M70-220-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 12.8 Ω |
| Speed | 20000 rpm |
| Current | 185 mA |
| Starting voltage | 1.5 V |
| Stall current | 230 mA |
| Weight | 0.85 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products
