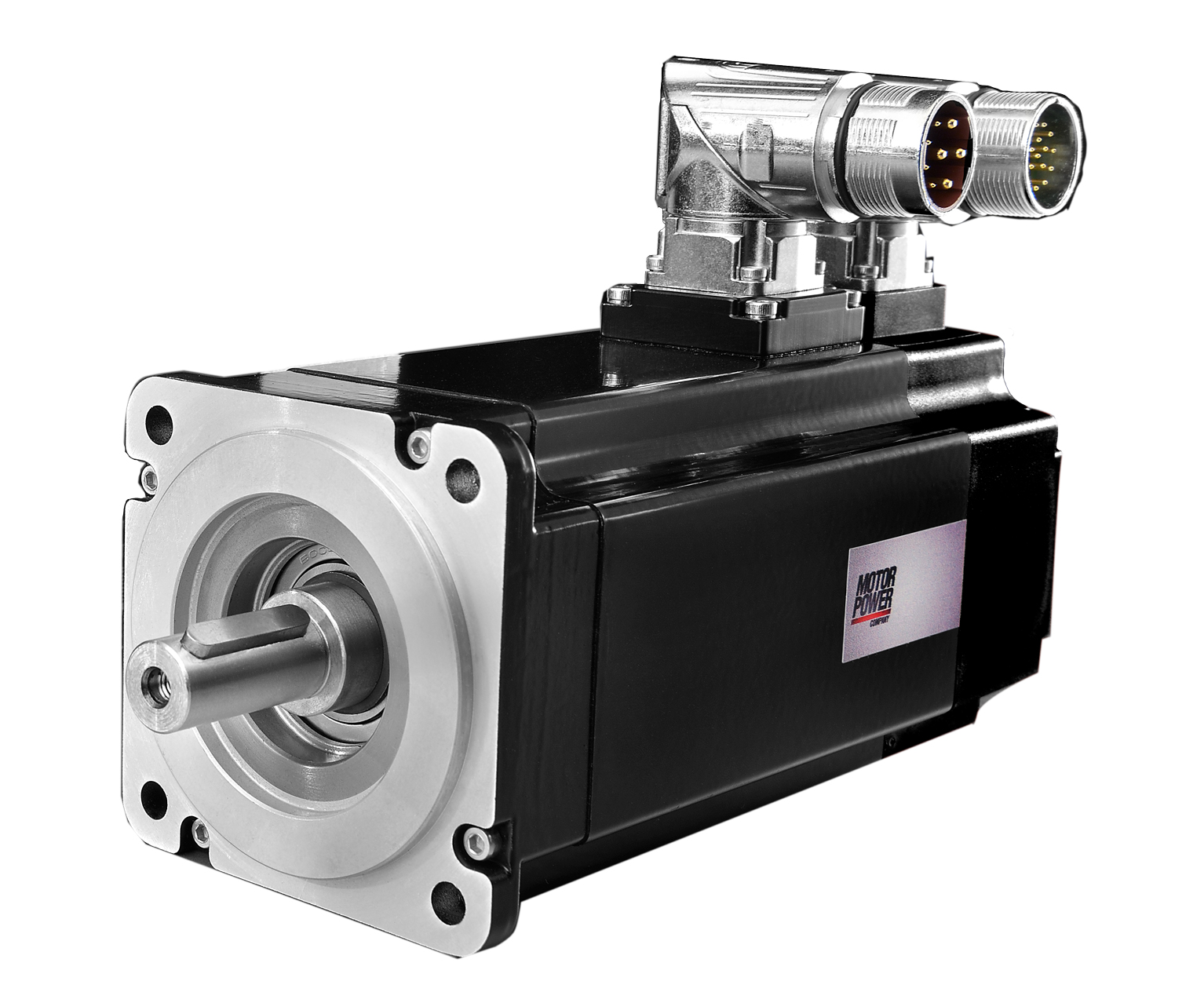

Flange dimensions: 100 mm
Rated Output Power: 820 – 1570 W
Rated Torque: 2,61 – 5,0 Nm
Rated Speed: 3000 rpm
Flange dimensions: 100 mm
Rated Output Power: 820 – 1570 W
Rated Torque: 2,61 – 5,0 Nm
Rated Speed: 3000 rpm
| Parameter | Unit | TC-X 100 5,6 15 |
|---|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | Nm | 5.6 |
| Peak Torque (ambient temperature 0 to +40°C) | Nm | 22 |
| Nominal Torque (ambient temperature 0 to +40°C) | Nm | 4.2 |
| Rated Voltage (ambient temperature 0 to +40°C) | Vdc | 400 |
| Nominal power (ambient temperature 0 to +40°C) | W | 1320 |
| Continuous stall Current (ambient temperature 0 to +40°C) | Arms | 6.15 |
| Maximun Current (ambient temperature 0 to +40°C) | Arms | 24.18 |
| Nominal Current (ambient temperature 0 to +40°C) | Arms | 4.76 |
| Nominal working Speed (ambient temperature 0 to +40°C) | rpm | 3000 |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | rpm | 3900 |
| Maximum working speed 400VAC (ambient temperature 0 to +40°C) | 5000 | |
| Torque Constant (ambient temperature 0 to +40°C) | Nm/Arms | 0.91 |
| Voltage Constant (ambient temperature 0 to +40°C) | Vrms/Krpm | 55 |
| Winding resistance (ambient temperature 0 to +40°C) | Ohm | 1.17 |
| Winding inductance (ambient temperature 0 to +40°C) | mH | 6.33 |
| Electrical time constant (ambient temperature 0 to +40°C) | ms | 5.41 |
| Thermal Resistance (ambient temperature 0 to +40°C) | °C/W | 0.95 |
| Mechanical time constant (ambient temperature 0 to +40°C) | ms | 0.62 |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | kg·cm² | 2.91 |
| Mass (ambient temperature 0 to +40°C) | Kg | 5.6 |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | N | 225 |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | N | 626 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
