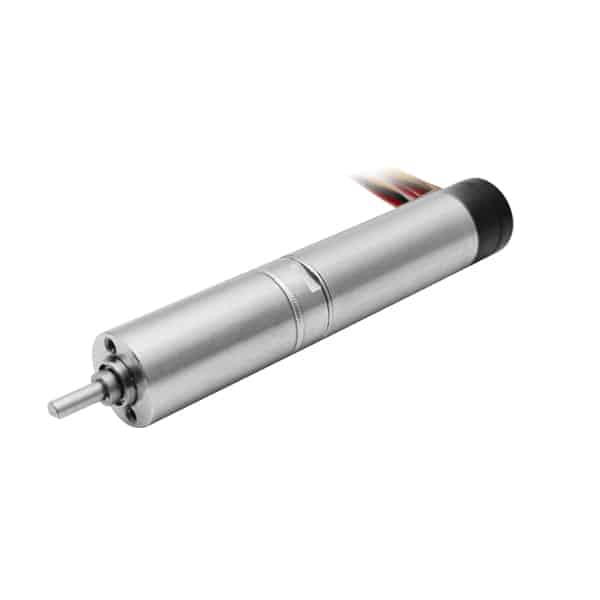

The 10**NH…M… micro DC servo motor series features a 10mm coreless brushless design, delivering high speeds up to 38,200 rpm and compact torque performance. Ideal for medical devices, robotics, and precision instruments, it offers customization options such as special coils and shaft lengths. Compatible with encoders and precision gearboxes for advanced motion control in demanding applications.

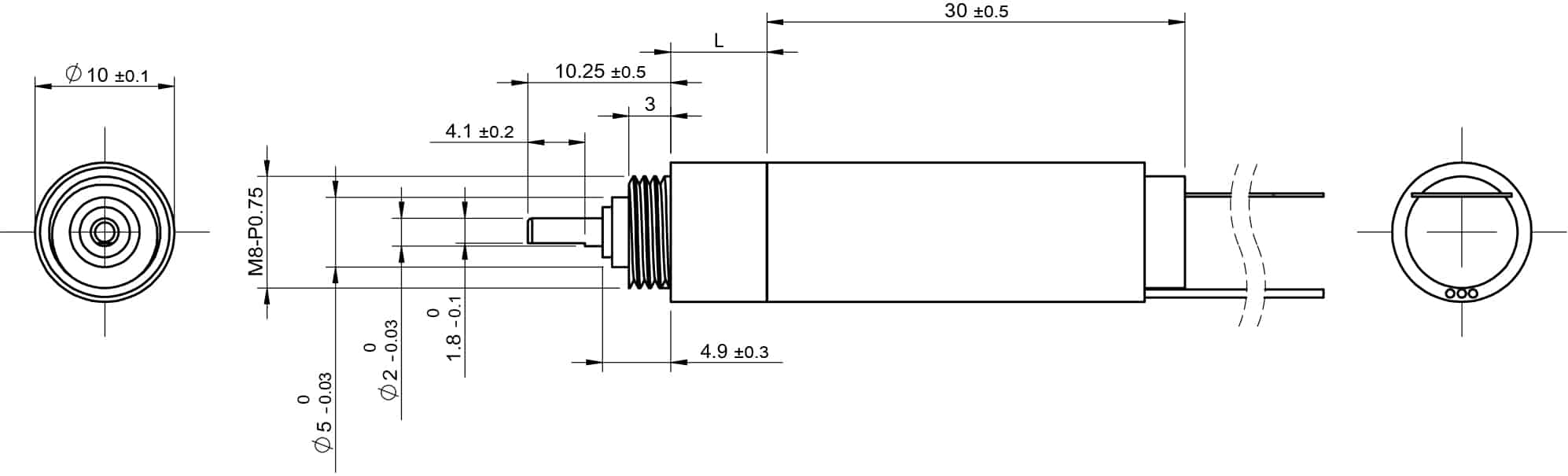

| Parameter | Unit | B1023NH2B05-382-7.4 |
|---|---|---|
| Voltage | V | 7.4 |
| Terminal resistance | Ω | 1.4 |
| No-load speed | rpm | 38200 |
| No-load current | A | 0.3 |
| Stall torque | mNm | 8.7 |
| Stall current | A | 5.3 |
| Nominal torque | mNm | 1.7 |
| Nominal speed | rpm | 30750 |
| Nominal current | A | 1.27 |
| Back-EMF constant | mV/rpm | 0.18 |
| Torque constant | mNm/A | 1.75 |
| Operating temperature range | °C | -20~+85 |
| Number of channels | Unit | 2 | 3 | — |
|---|---|---|---|---|
| Counts per turn | cpt | 12.16.64.256.512 | 12.16.64.256.512 | — |
| Supply voltage | V | 5.0（5.0） | 5.0（5.0） | — |
| Max. speed | rpm | 40000 | 40000 | — |
| Phase shift | °e | 90±45 | 90±45 | — |
| Output signal | — | TTL | TTL | — |
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 4 | 16 | 64 | 256 | 1024 | 4096 |
| Max. rated torque | mNm | 5 | 10 | 30 | 40 | 50 | 60 |
| Max. momentary torque | mNm | 15 | 30 | 90 | 120 | 150 | 180 |
| Length（L） | mm | 9.7 | 12.8 | 15.9 | 19 | 22.1 | 25.2 |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
