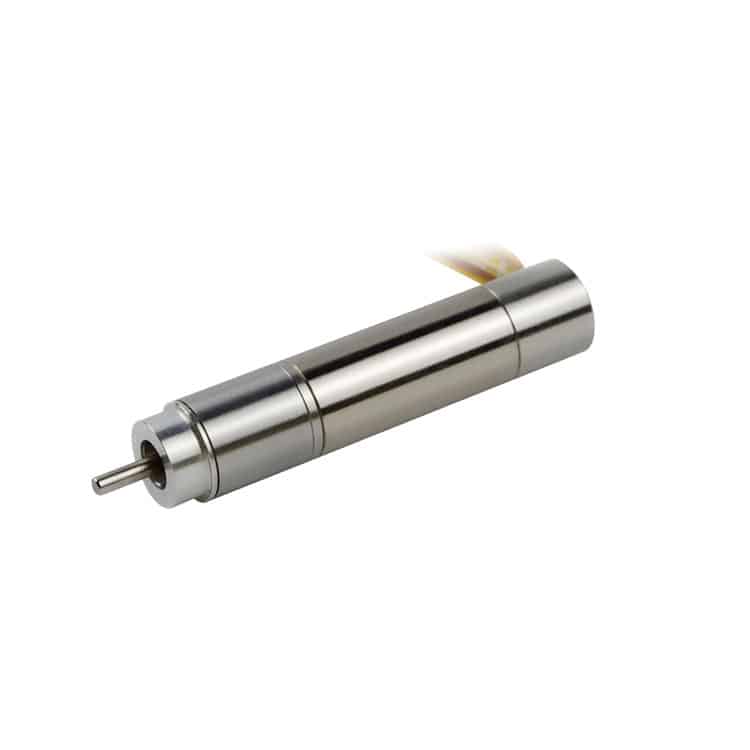

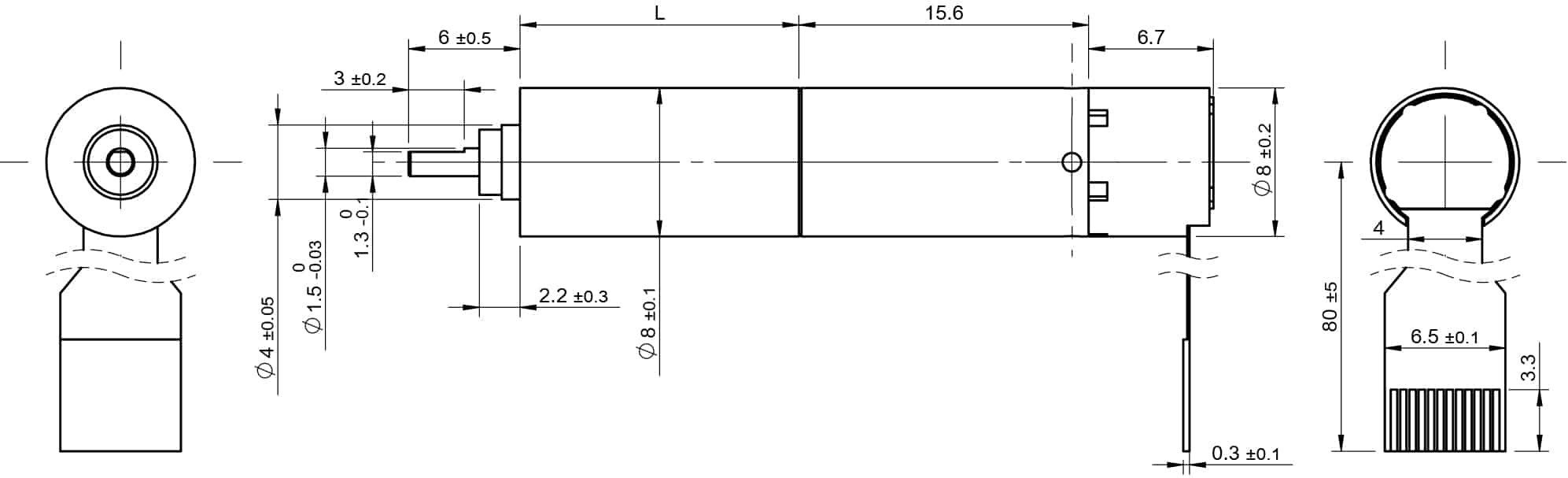

The 08**M5…M… Series delivers top-tier performance in an ultra-compact 8mm brushed coreless DC motor. Designed for space-constrained medical, robotics, and precision instrument applications, each motor offers encoder feedback up to 512 counts/turn, metal CNC gearboxes with up to 6 stages (torque to 40 mNm), customizable shaft lengths, and options for special windings. Provides high dynamic response, low inertia, and reliable operation.
| Number of channels | Unit | 2 | 3 | — |
|---|---|---|---|---|
| Counts per turn | cpt | 16.32.64.256.512 | 16.32.64.256.512 | — |
| Supply voltage | V | 5.0（5.0） | 5.0（5.0） | — |
| Max. speed | rpm | 30000 | 30000 | — |
| Phase shift | °e | 90±45 | 90±45 | — |
| Output signal | TTL | TTL | — | |
| Diameter | mm | 8 | 8 | — |
| Length（L） | mm | 6.7 | 6.7 | — |
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 16 | 64 | 256 | 1024 | 4096 | |
| Max. rated torque | mNm | 5 | 10 | 20 | 30 | 35 | 40 |
| Max. momentary torque | mNm | 15 | 30 | 60 | 90 | 105 | 120 |
| Length（L） | mm | 9.6 | 12.3 | 15 | 17.7 | 20.4 | 23.1 |
| Shell material | Metal | – | – | – | – | – | |
| Gear processing technology | Metal CNC | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
