24**…24*P… / B20**…24*P… / C24**…24*P…

Name: 24**...24*P... / B20**...24*P... / C24**...24*P... - KOCO MOTION
SKU: 24**…24*P… / B20**…24*P… / C24**…24*P…

The 24mm planetary gearbox series delivers robust torque up to 1500 mNm and high reduction ratios in a compact design, offering up to 6 gearbox stages. Engineered with a rugged metal shell and precision plastic injection-molded gears, it is ideal for medical devices, scientific instruments, and industrial automation. Customizable options include shaft length and special coil designs for optimized performance in demanding applications.

SKU: 24**…24*P… / B20**…24*P… / C24**…24*P… Categories: Unkategorisiert, Planetary Gear

Gearbox Characteristics

Gearbox stages	Unit	1	2	3	4	5	6
Reduction ratio	—	—	36	216	256	—	—
Max. rated torque	mNm	—	500	1000	1500	—	—
Max. momentary torque	mNm	—	1000	2000	3000	—	—

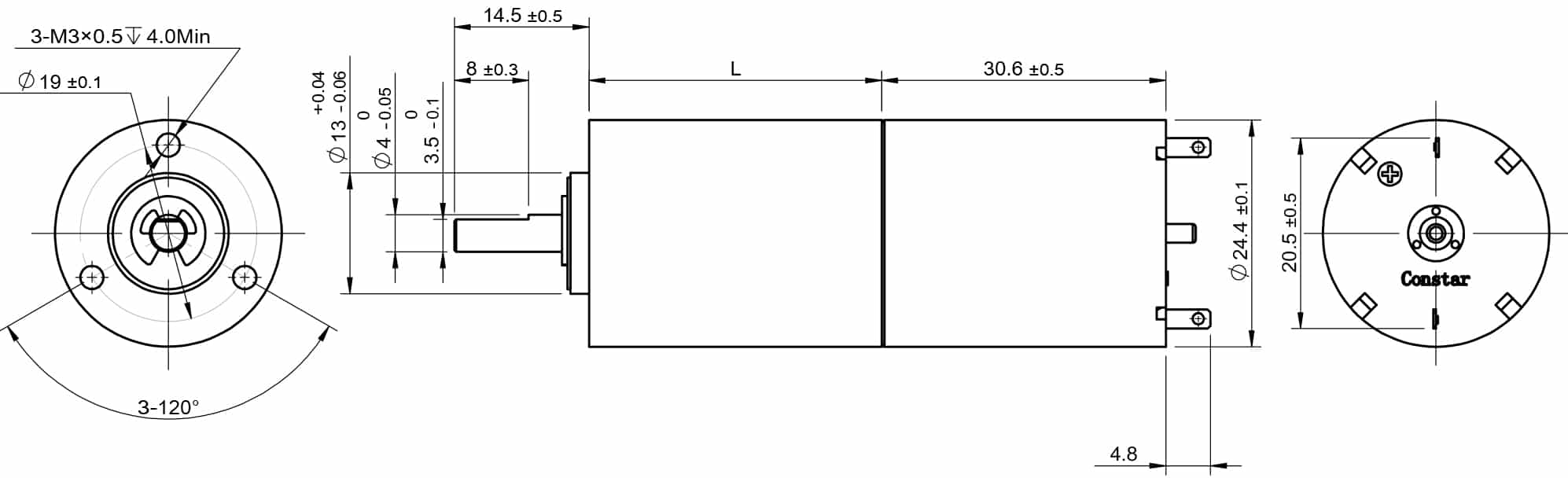

Length（L）	mm	—	24.5	31.5	38.65	—	—
Shell material	—	Metal	–	–	–	–	–
Gear processing technologyGear processing technology	—	Plastic injection	–	–	–	–	–

options

lead wires length

shaft length special coils

Applications

medical equipment scientific instruments industrial equipment

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
