Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 4~5 | 14~35 | 51~139 | 189~939 | — | — |
| Max. rated torque | mNm | 200 | 300 | 600 | 1000 | — | — |
| Max. momentary torque | mNm | 600 | 900 | 1800 | 3000 | — | — |

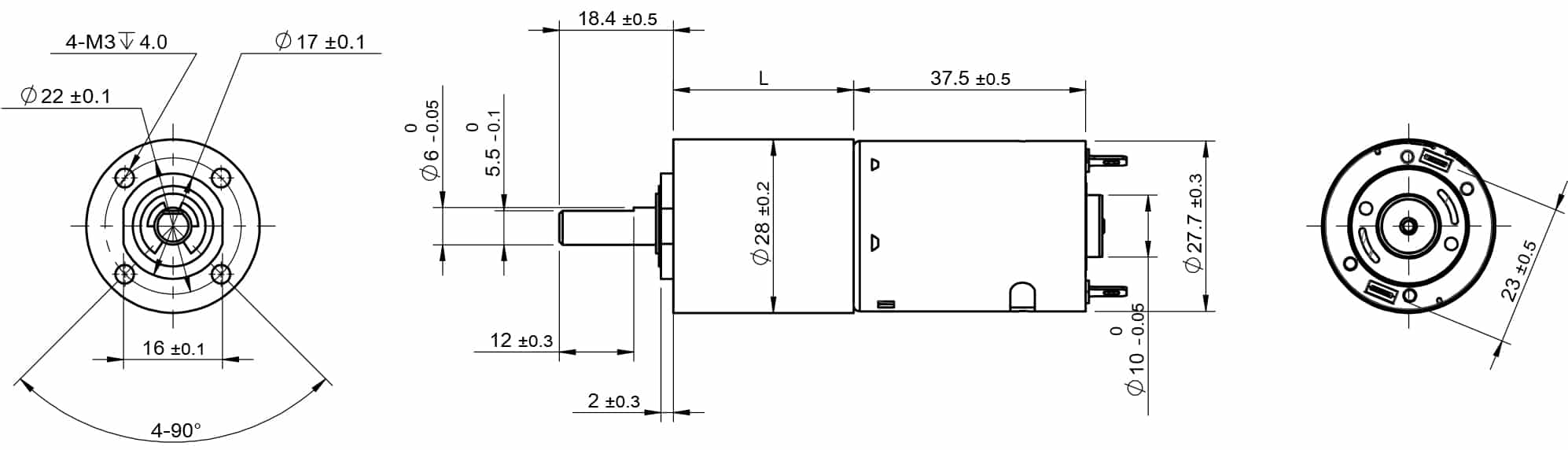

| Length（L） | mm | 24.5 | 30.9 | 37.3 | 43.7 | — | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technologyGear processing technology | — | Plastic injection | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
