Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 6 | 36 | 216 | 256 | — | — |
| Max. rated torque | mNm | 50 | 150 | 300 | 600 | — | — |
| Max. momentary torque | mNm | 100 | 300 | 600 | 1200 | — | — |

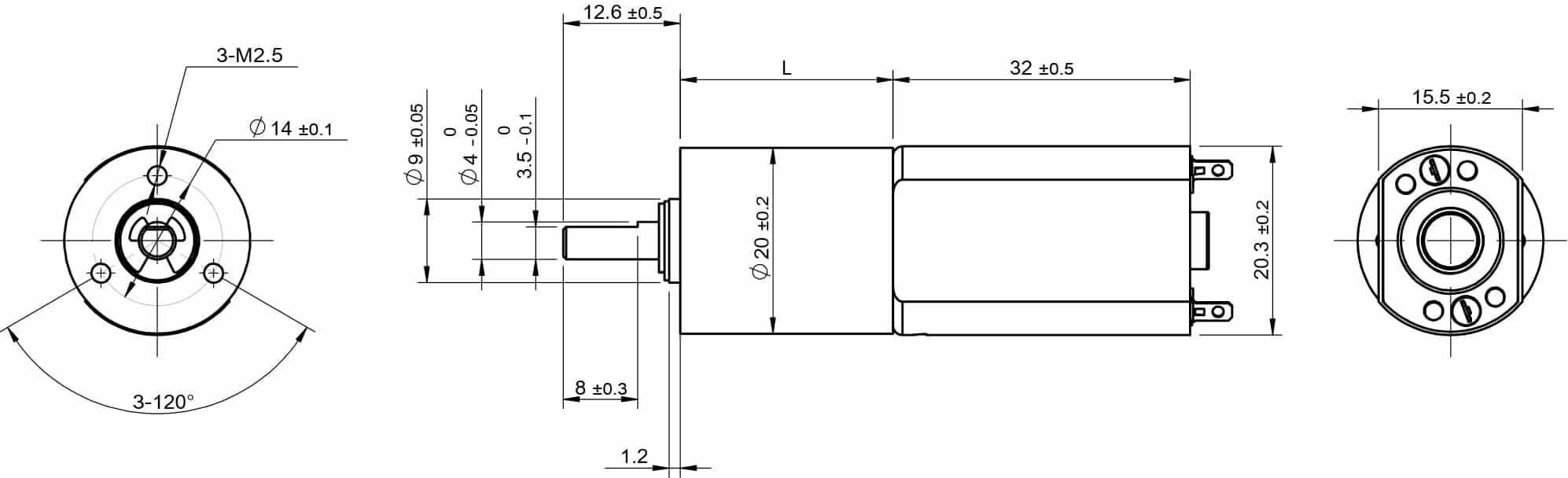

| Length（L） | mm | 17.6 | 22.9 | 28.2 | 33.5 | — | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Plastic injection | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
