Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 4 | 14~29 | 53~157 | 231~690 | 1014~3027 | — |
| Max. rated torque | mNm | 80 | 120 | 160 | 200 | 240 | — |
| Max. momentary torque | mNm | 240 | 360 | 480 | 600 | 720 | — |

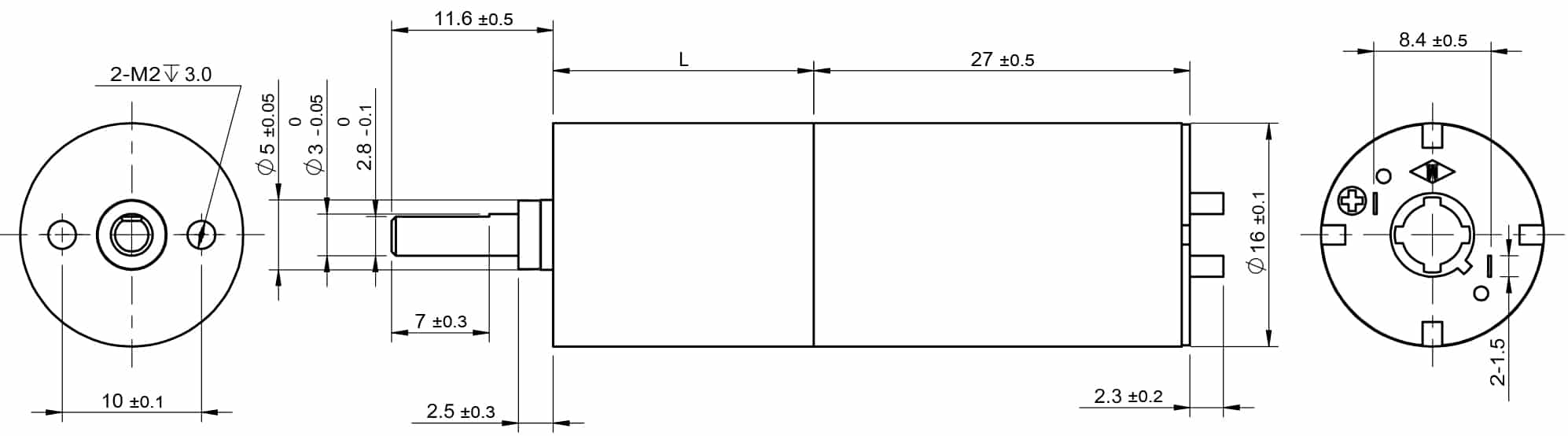

| Length（L） | mm | 15.05 | 18.7 | 22.35 | 26 | 29.65 | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Powder metallurgy | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
