The 12mm planetary gearbox series delivers high-precision motion control in compact form. With up to 6 gearbox stages and reduction ratios from 4:1 to 4096:1, it achieves maximum rated torques up to 200 mNm. CNC-machined metal gears ensure durability, making it ideal for medical, scientific, and industrial equipment requiring reliable miniature power transmission.
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 4 | 16 | 64 | 256 | 1024 | 4096 |
| Max. rated torque | mNm | 80 | 120 | 160 | 180 | 200 | 200 |
| Max. momentary torque | mNm | 240 | 360 | 180 | 540 | 600 | 600 |

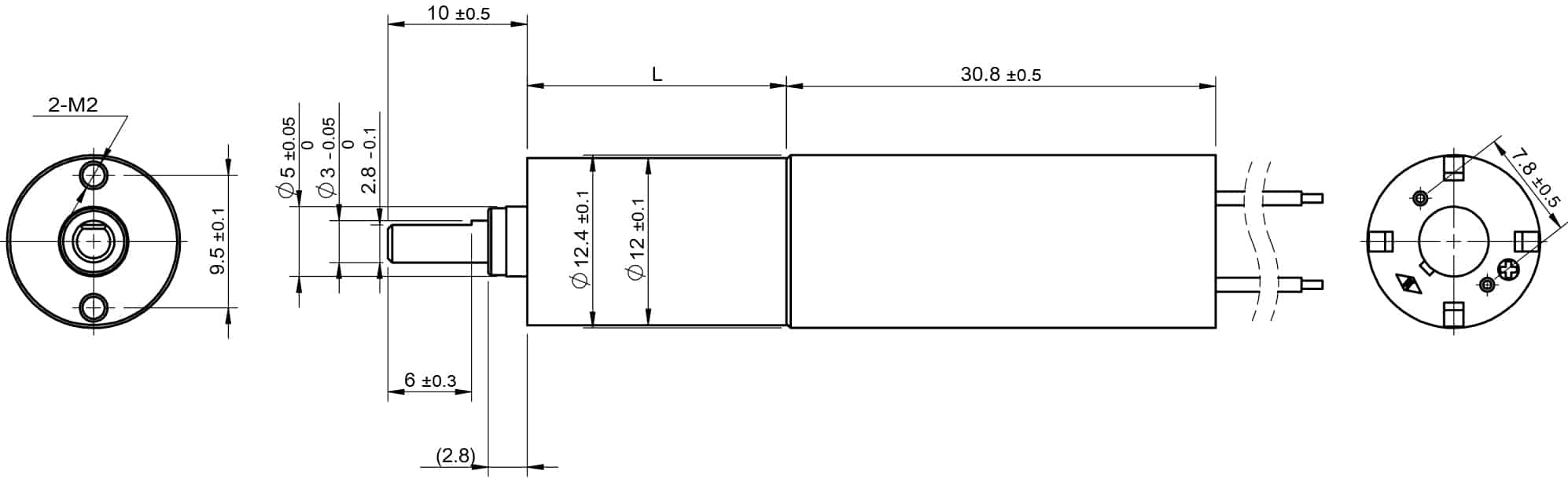

| Length（L） | mm | 12.8 | 16.1 | 19.4 | 22.7 | 26 | 29.3 |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
