Characteristics
| Parameter | Unit | B2950NH2B01-130-24.0 | B2950NH2B02-130-18.0 |
|---|---|---|---|
| Voltage | V | 24.0 | 18.0 |
| Terminal resistance | Ohm | 1.32 | 0.99 |
| No-load speed | rpm | 13000 | 13000 |
| No-load current | A | 0.3 | 0.3 |
| Stall torque | mNm | 310.0 | 232.5 |
| Stall current | A | 18.2 | 18.2 |
| Nominal torque | mNm | 28 | 21 |
| Nominal speed | rpm | 11800 | 11800 |
| Nominal current | A | 1.9 | 1.42 |
| Max. output power | W | 105 | 79 |
| Max. efficiency | % | 75 | 56.6 |
| Back-EMF constant | mV/rpm | 1.8 | 1.4 |
| Torque constant | mNm/A | 17.3 | 13.0 |
| KV Value | rpm/V | 541.9 | 722.2 |
| Speed/torque gradient | rpm/mNm | 41.9 | 55.9 |
| Rotor inertia | gcm² | 5 | 5 |
| Weight | g | 140 | 140 |
| Thermal resistance housing-ambient | K/W | 7.8 | 7.8 |
| Thermal resistance winding-housing | K/W | 5.9 | 5.9 |
| Thermal time constant motor | s | 1400 | 1400 |
| Thermal time constant winding | s | 20 | 20 |
| Operating temperature range | °C | -40~+100 | -40~+100 |
| Thermal class of winding | °C | 155 | 155 |
| Axial play | mm | 0.012 | 0.012 |
| Radial play | mm | 0.008 | 0.008 |
| Axial load dynamic | N | 5 | 5 |
| Axial load static | N | 80 | 80 |
| Radial load at 3 mm from mounting face | N | 29 | 29 |
| No. of pole pairs | 2 | 2 | |
| Bearings | 2 ball bearings | 2 ball bearings | |
| Protection class | IP | 20 | Hall Sensor |
| Commutation | Hall Sensor | 20 |
Applications
medical equipment
electrical tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

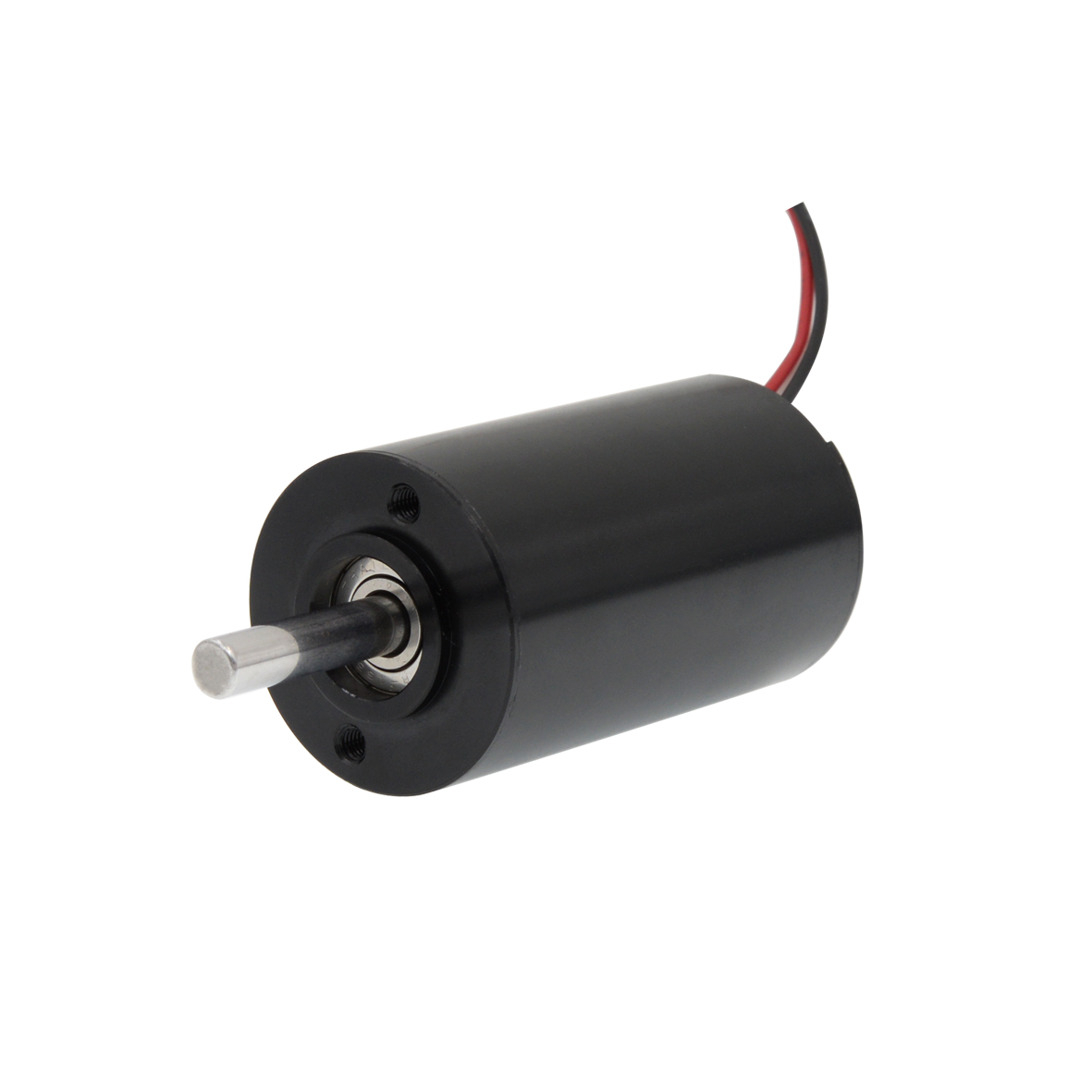

B2950NH2B
| Parameter | Unit | B2950NH2B01-130-24.0 |
|---|---|---|
| Voltage | V | 24.0 |
| Terminal resistance | Ohm | 1.32 |
| No-load speed | rpm | 13000 |
| No-load current | A | 0.3 |
| Stall torque | mNm | 310.0 |
| Stall current | A | 18.2 |
| Nominal torque | mNm | 28 |
| Nominal speed | rpm | 11800 |
| Nominal current | A | 1.9 |
| Max. output power | W | 105 |
| Max. efficiency | % | 75 |
| Back-EMF constant | mV/rpm | 1.8 |
| Torque constant | mNm/A | 17.3 |
| KV Value | rpm/V | 541.9 |
| Speed/torque gradient | rpm/mNm | 41.9 |
| Rotor inertia | gcm² | 5 |
| Weight | g | 140 |
| Thermal resistance housing-ambient | K/W | 7.8 |
| Thermal resistance winding-housing | K/W | 5.9 |
| Thermal time constant motor | s | 1400 |
| Thermal time constant winding | s | 20 |
| Operating temperature range | °C | -40~+100 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.012 |
| Radial play | mm | 0.008 |
| Axial load dynamic | N | 5 |
| Axial load static | N | 80 |
| Radial load at 3 mm from mounting face | N | 29 |
| No. of pole pairs | 2 | |
| Bearings | 2 ball bearings | |
| Protection class | IP | 20 |
| Commutation | Hall Sensor |
Applications
medical equipment
electrical tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | B2950NH2B02-130-18.0 |
|---|---|---|
| Voltage | V | 18.0 |
| Terminal resistance | Ohm | 0.99 |
| No-load speed | rpm | 13000 |
| No-load current | A | 0.3 |
| Stall torque | mNm | 232.5 |
| Stall current | A | 18.2 |
| Nominal torque | mNm | 21 |
| Nominal speed | rpm | 11800 |
| Nominal current | A | 1.42 |
| Max. output power | W | 79 |
| Max. efficiency | % | 56.6 |
| Back-EMF constant | mV/rpm | 1.4 |
| Torque constant | mNm/A | 13.0 |
| KV Value | rpm/V | 722.2 |
| Speed/torque gradient | rpm/mNm | 55.9 |
| Rotor inertia | gcm² | 5 |
| Weight | g | 140 |
| Thermal resistance housing-ambient | K/W | 7.8 |
| Thermal resistance winding-housing | K/W | 5.9 |
| Thermal time constant motor | s | 1400 |
| Thermal time constant winding | s | 20 |
| Operating temperature range | °C | -40~+100 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.012 |
| Radial play | mm | 0.008 |
| Axial load dynamic | N | 5 |
| Axial load static | N | 80 |
| Radial load at 3 mm from mounting face | N | 29 |
| No. of pole pairs | 2 | |
| Bearings | 2 ball bearings | |
| Protection class | Hall Sensor | |
| Commutation | IP | 20 |
Applications
medical equipment
electrical tools
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
