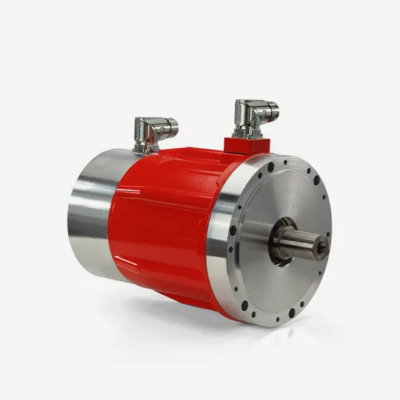

Flange dimensions: 80 mm
Rated Output Power: 800 – 1068 W
Rated Torque: 2,55 . 3,4 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat
| Specification | DUET HV 80 2,8 17 | DUET HV 80 4 17 |
|---|---|---|
| Rated Voltage | 560 Vdc | 560 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc | 24 Vdc |
| Minimum Voltage | 275 Vdc | 275 Vdc |
| Maximum Voltage | 740 Vdc | 740 Vdc |
| Stall Torque | 2.96 Nm | 4 Nm |
| Peak Torque | 8.4 Nm | 12 Nm |
| Rated Torque | 2.55 Nm | 3.4 Nm |
| Rated Output Power | 800 W | 1068 W |
| Stall Current | 1.75 Arms | 2.5 Arms |
| Peak Current | 5.8 Arms | 7.5 Arms |
| Rated Current | 1.64 Arms | 2.19 Arms |
| Rated Speed @560Vdc | 3000 rpm | 3000 rpm |
| Maximum Speed @560Vdc | 4000 rpm | 4000 rpm |
| Torque Constant (± 5%) | 1.6 Nm/Arms | 1.6 Nm/Arms |
| Voltage Constant (± 5%) | 97 Vrms/Krpm | 96 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 7.9 Ω | 6.5 Ω |
| Phase/phase inductance (± 10%) | 35.4 mH | 28.6 mH |
| Electrical time constant | 4.48 ms | 4.4 ms |
| Thermal Resistance | 1.32 °C/W | 1 °C/W |
| Mechanical time constant | 0.53 ms | 0.56 ms |
| Rotor Inertia without brake and without feedback | 1.16 kg·cm² | 1.58 kg·cm² |
| Duet weight | 4.1 Kg | 5.1 Kg |
| Duet weight with brake | 4.8 Kg | 6.5 Kg |
| Axial Load applied on the shaft’s center | 110 N | 110 N |
| Radial Load applied on the shaft’s center | 350 N | 350 N |
| Family Specification | Produkt |
|---|---|
| Time Rating | Coninuous |
| Insulation Class | F |
| Enclosure | Totally enclosed. Self-cooled |
| Protection Class | IP 65 standard on the body |
| Motor Insulation System UL /CSA | cURus , DV155J File nr. : E216686 |
| Ambient Temperature | 0 to 40 °C |
| Ambient Humidity | 5 to 85% (non-condensing) |
| Poles | 8 |
| Certification | CE |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing |
| Family Overview | Produkt |
|---|---|
| Flange dimensions | 80 mm |
| Rated Output Power | 800 – 1068 Watt |
| Rated Torque | 2,55 . 3,4 Nm |
| Rated Speed | 3000 rpm |
| Fieldbus | Ethercat |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | DUET HV 80 2,8 17 |
|---|---|
| Rated Voltage | 560 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 275 Vdc |
| Maximum Voltage | 740 Vdc |
| Stall Torque | 2.96 Nm |
| Peak Torque | 8.4 Nm |
| Rated Torque | 2.55 Nm |
| Rated Output Power | 800 W |
| Stall Current | 1.75 Arms |
| Peak Current | 5.8 Arms |
| Rated Current | 1.64 Arms |
| Rated Speed @560Vdc | 3000 rpm |
| Maximum Speed @560Vdc | 4000 rpm |
| Torque Constant (± 5%) | 1.6 Nm/Arms |
| Voltage Constant (± 5%) | 97 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 7.9 Ω |
| Phase/phase inductance (± 10%) | 35.4 mH |
| Electrical time constant | 4.48 ms |
| Thermal Resistance | 1.32 °C/W |
| Mechanical time constant | 0.53 ms |
| Rotor Inertia without brake and without feedback | 1.16 kg·cm² |
| Duet weight | 4.1 Kg |
| Duet weight with brake | 4.8 Kg |
| Axial Load applied on the shaft’s center | 110 N |
| Radial Load applied on the shaft’s center | 350 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | DUET HV 80 4 17 |
|---|---|
| Rated Voltage | 560 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 275 Vdc |
| Maximum Voltage | 740 Vdc |
| Stall Torque | 4 Nm |
| Peak Torque | 12 Nm |
| Rated Torque | 3.4 Nm |
| Rated Output Power | 1068 W |
| Stall Current | 2.5 Arms |
| Peak Current | 7.5 Arms |
| Rated Current | 2.19 Arms |
| Rated Speed @560Vdc | 3000 rpm |
| Maximum Speed @560Vdc | 4000 rpm |
| Torque Constant (± 5%) | 1.6 Nm/Arms |
| Voltage Constant (± 5%) | 96 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 6.5 Ω |
| Phase/phase inductance (± 10%) | 28.6 mH |
| Electrical time constant | 4.4 ms |
| Thermal Resistance | 1 °C/W |
| Mechanical time constant | 0.56 ms |
| Rotor Inertia without brake and without feedback | 1.58 kg·cm² |
| Duet weight | 5.1 Kg |
| Duet weight with brake | 6.5 Kg |
| Axial Load applied on the shaft’s center | 110 N |
| Radial Load applied on the shaft’s center | 350 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
