Motor Characteristics
| Parameter | Unit | 6-2103 |
|---|---|---|
| Voltage | V | 6.6 |
| Current | A | 0.3 |
| Resistance | Ω | 22 |
| Inductance | mH | 4.5 |
| Weight | g | 60 |
| Lead wire No. | 4 | |
| Motor length | mm | 32 |
Lead Screw Code
| Lead Screw Code | Unit | DLM – Size 14mm |
|---|---|---|
| AF, Screw Lead | mm | 3.5 |
| AA, Screw Lead | mm | 3.5 |
| AB, Screw Lead | mm | 3.5 |
| B, Screw Lead | mm | 3.5 |
| G, Screw Lead | mm | 3.5 |
| M, Screw Lead | mm | 3.5 |
| T, Screw Lead | mm | 3.5 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

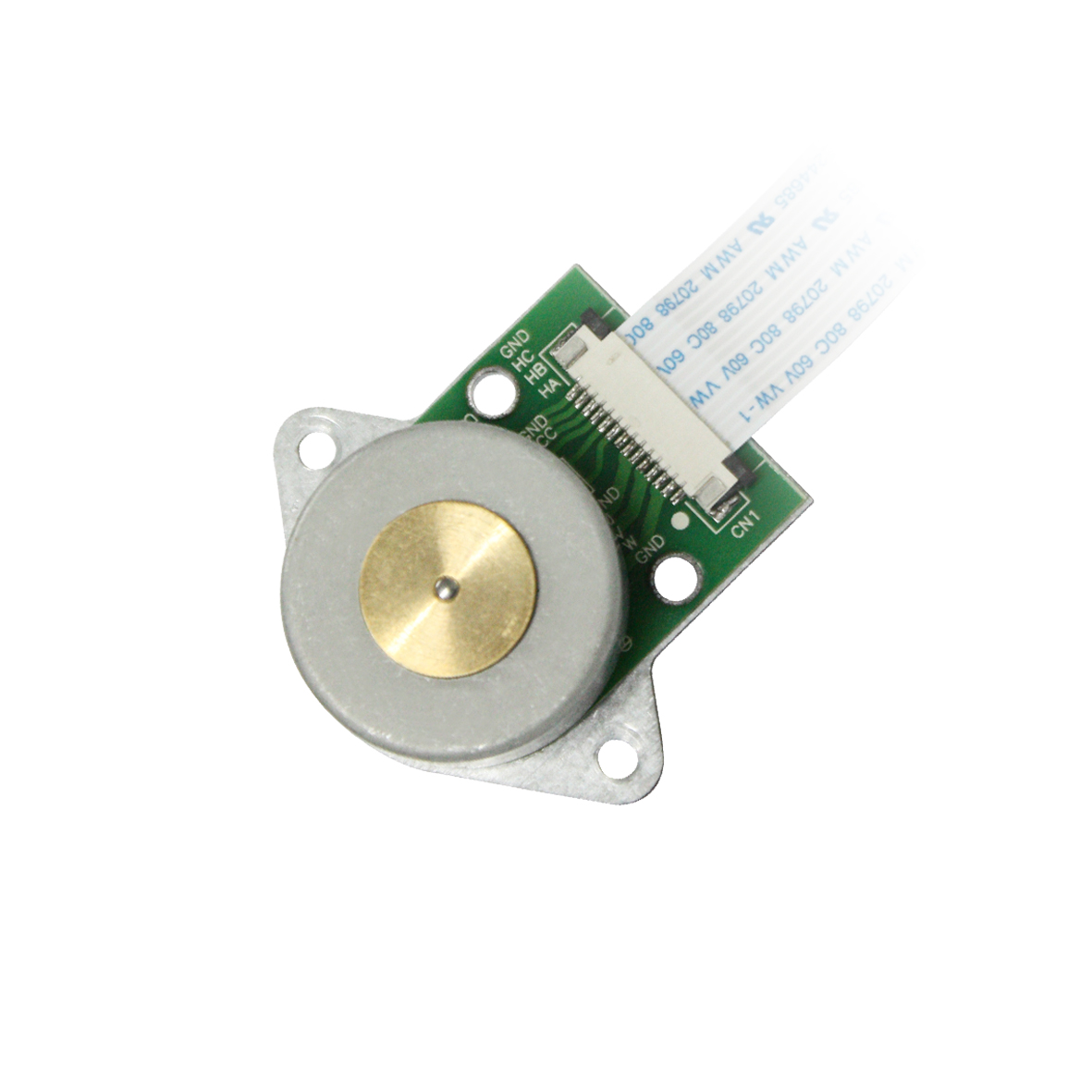

DLM – Size 14mm
DLM – Size 14mm
| Parameter | Unit | 6-2103 |
|---|---|---|
| Voltage | V | 6.6 |
| Current | A | 0.3 |
| Resistance | Ω | 22 |
| Inductance | mH | 4.5 |
| Weight | g | 60 |
| Lead wire No. | 4 | |
| Motor length | mm | 32 |
Lead Screw Code
| Lead Screw Code | Unit | 6-2103 |
|---|---|---|
| AF, Screw Lead | mm | 3.5 |
| AA, Screw Lead | mm | 3.5 |
| AB, Screw Lead | mm | 3.5 |
| B, Screw Lead | mm | 3.5 |
| G, Screw Lead | mm | 3.5 |
| M, Screw Lead | mm | 3.5 |
| T, Screw Lead | mm | 3.5 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
