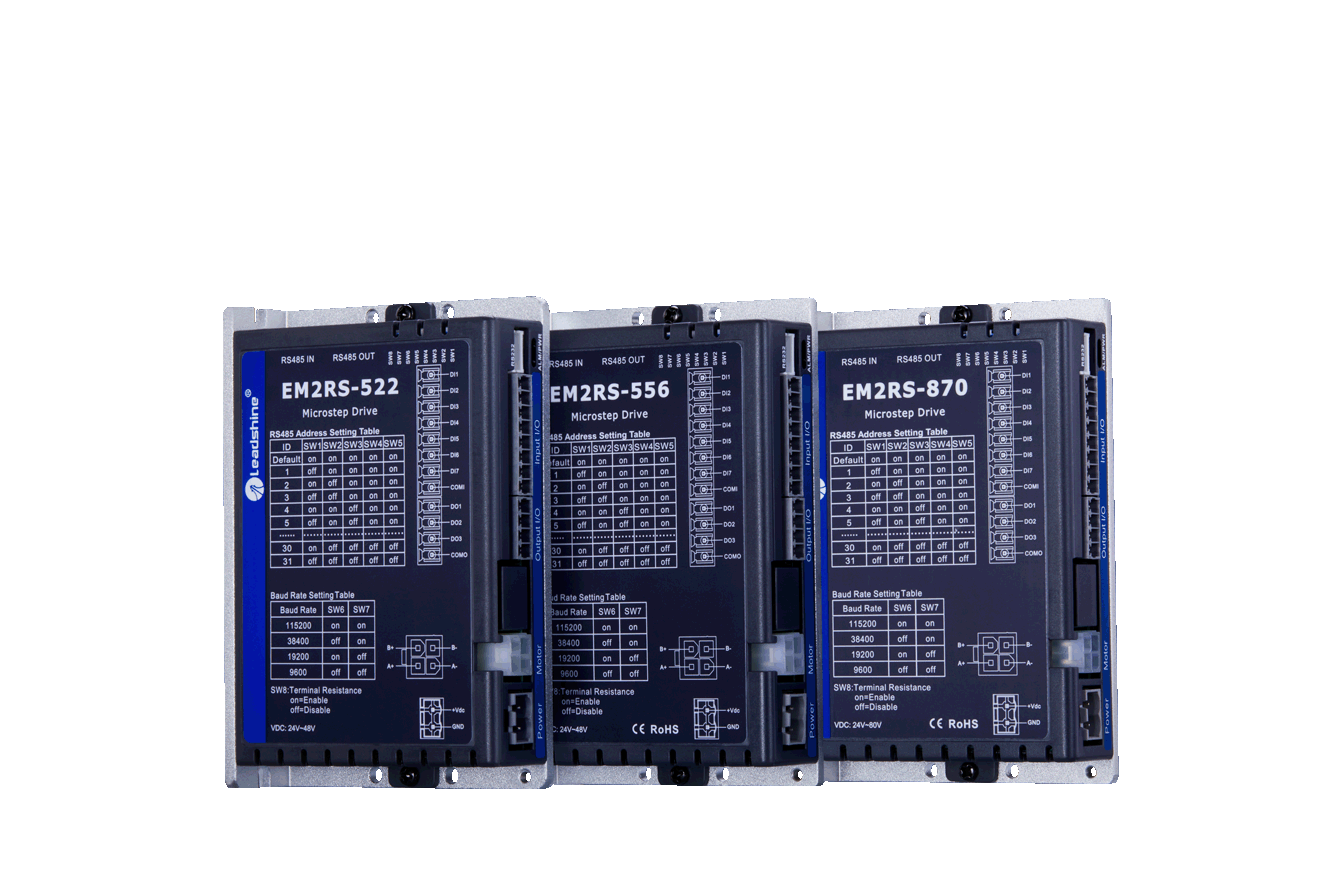

Motor charactistics
| Parameter | Unit | EM2RS-522 | EM2RS-556 | EM2RS-870 | EM2RS-A882 |
|---|---|---|---|---|---|
| Operation Voltage | VDC | 20-50 | 20-50 | 20-80 | 18-80VAC or 30-110VDC |
| Output Current | A, Peak | 2.2 | 5.6 | 7 | 8.2 |
| Logical Voltage | VDC | 12-24VDC | 12-24VDC | 12-24VDC | 12-24VDC |
| Command Source | Modbus RTU | Modbus RTU | Modbus RTU | Modbus RTU | |
| # of Inputs | 7 | 7 | 7 | 7 | |
| # of Outputs | 3 | 3 | 3 | 3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EM2RS-522
manual
EM2RS-556
manual
EM2RS-870
manual
EM2RS-A882
manual
| Parameter | Unit | EM2RS-522 |
|---|---|---|
| Operation Voltage | VDC | 20-50 |
| Output Current | A, Peak | 2.2 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | Modbus RTU | |
| # of Inputs | 7 | |
| # of Outputs | 3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EM2RS-522
manual
| Parameter | Unit | EM2RS-556 |
|---|---|---|
| Operation Voltage | VDC | 20-50 |
| Output Current | A, Peak | 5.6 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | Modbus RTU | |
| # of Inputs | 7 | |
| # of Outputs | 3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EM2RS-556
manual

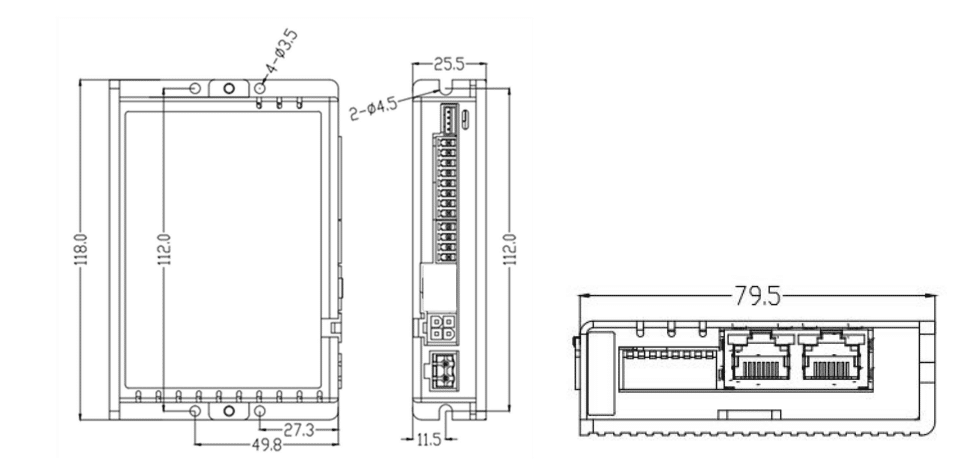

| Parameter | Unit | EM2RS-870 |
|---|---|---|
| Operation Voltage | VDC | 20-80 |
| Output Current | A, Peak | 7 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | Modbus RTU | |
| # of Inputs | 7 | |
| # of Outputs | 3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
EM2RS-870
manual

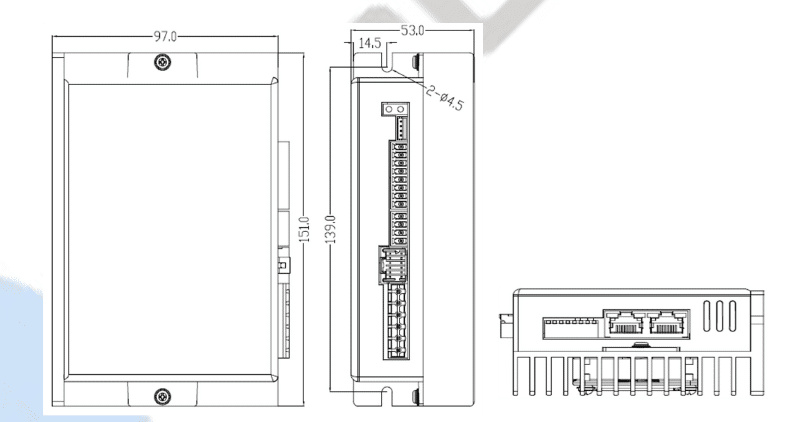

| Parameter | Unit | EM2RS-A882 |
|---|---|---|
| Operation Voltage | VDC | 18-80VAC or 30-110VDC |
| Output Current | A, Peak | 8.2 |
| Logical Voltage | VDC | 12-24VDC |
| Command Source | Modbus RTU | |
| # of Inputs | 7 | |
| # of Outputs | 3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
