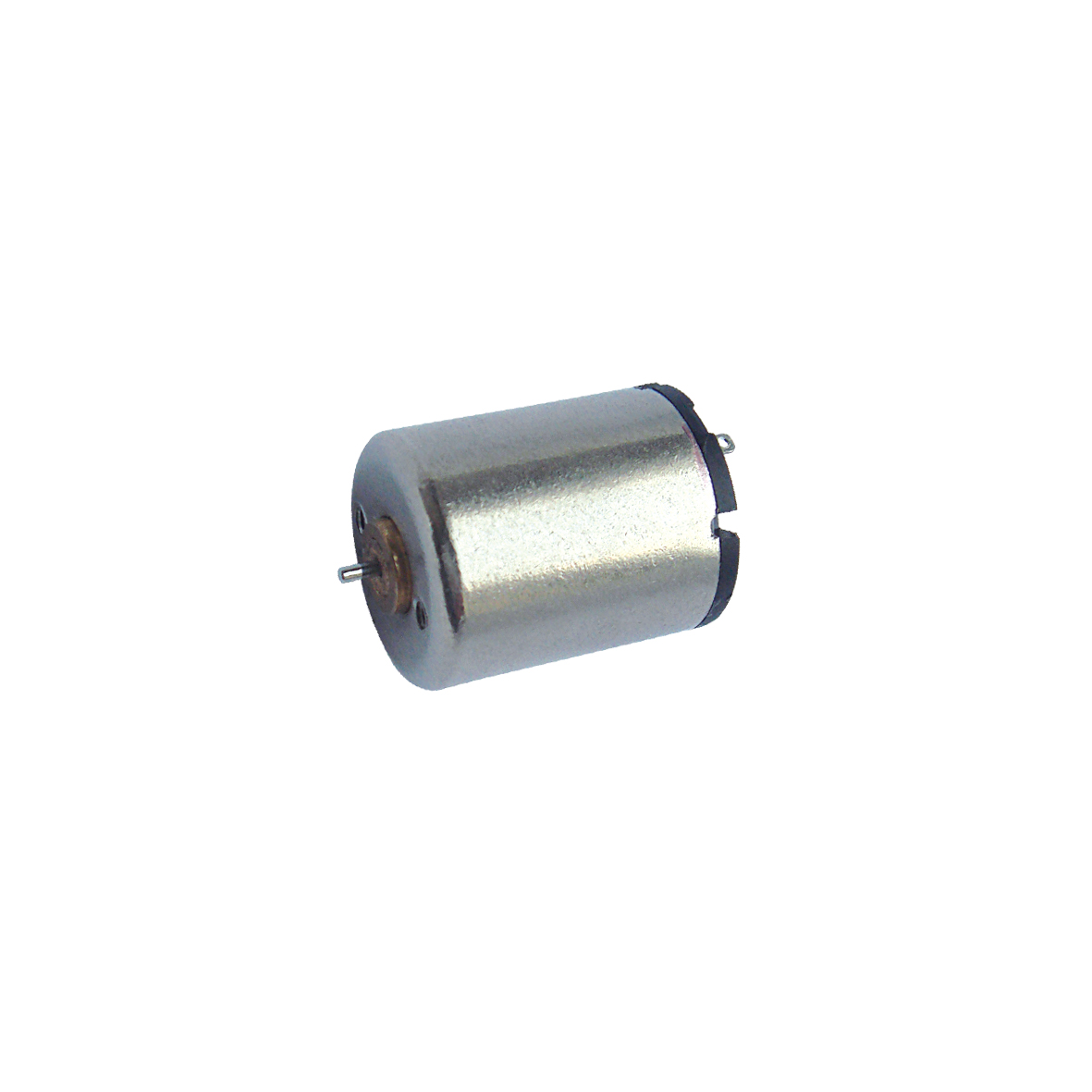

L1620N5M Series – 16mm Micro DC Coreless Motor
The L1620N5M series combines advanced performance in a compact coreless design, featuring precious metal brushes for dependable electrical contact and minimal maintenance. Optimized for high-speed, low-inertia tasks, these motors achieve no-load speeds up to 9,500 rpm and torque ratings up to 7.8 mNm, delivering responsive performance in space-constrained environments.
- Key Specifications:
- Voltage: 5.0 V
- Max. output power: up to 1.6 W
- Max. efficiency: up to 75%
- Rotor inertia: 0.45 gcm²
- Operating temperature: -20 ~ +85 °C
- Weight: 15.8 g
- Applications:
- Mini UAV propulsion and stabilization
- Remote control hobby products
- Small household appliances
- Custom Options:
- Lead wires length and shaft length variations
- Special coil designs
- Integrated gearhead compatibility
With its high efficiency, compact form factor, and configuration flexibility, the L1620N5M series is the optimal choice for demanding motion applications where size, speed, and reliability are critical.
