| Specification | L0609N3M58-340-3.0 | L0609N3M09-490-3.0 | L0609N3M10-435-3.0 |
|---|---|---|---|
| Voltage | 3.0 V | 3.0 V | 3.0 V |
| Terminal resistance | 14.2 Ω | 7.8 Ω | 7.7 Ω |
| No-load speed | 34000 rpm | 49000 rpm | 43500 rpm |
| No-load current | 40 mA | 50 mA | 65 mA |
| Stall torque | 0.12 mNm | 0.17 mNm | 0.18 mNm |
| Stall current | 211 mA | 385 mA | 390 mA |
| Load torque | 0.05 mNm | 0.05 mNm | 0.05 mNm |
| Load speed | 19470 rpm | 34590 rpm | 31280 rpm |
| Load current | 110 mA | 150 mA | 160 mA |
| Max. output power | 0.10 W | 0.22 W | 0.20 W |
| Max. efficiency | 31.9 % | 40.9 % | 35.0 % |
| Back-EMF constant | 0.07 mV/rpm | 0.05 mV/rpm | 0.06 mV/rpm |
| Torque constant | 0.68 mNm/A | 0.51 mNm/A | 0.55 mNm/A |
| Speed/torque gradient | 290598 rpm/mNm | 288235 rpm/mNm | 244382 rpm/mNm |
| Rotor inertia | 0.008 g·cm² | 0.008 g·cm² | 0.008 g·cm² |
| Weight | 1 g | 1 g | 1 g |
| Operating temperature range | -20~+65 | -20~+65 | -20~+65 |
Applications
mini UAV
remote control hobby products
small household appliances
L0609N3M

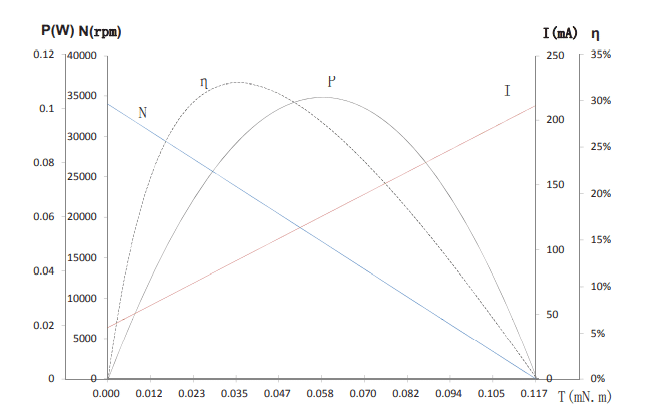

| Specification | L0609N3M58-340-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 14.2 Ω |
| No-load speed | 34000 rpm |
| No-load current | 40 mA |
| Stall torque | 0.12 mNm |
| Stall current | 211 mA |
| Load torque | 0.05 mNm |
| Load speed | 19470 rpm |
| Load current | 110 mA |
| Max. output power | 0.10 W |
| Max. efficiency | 31.9 % |
| Back-EMF constant | 0.07 mV/rpm |
| Torque constant | 0.68 mNm/A |
| Speed/torque gradient | 290598 rpm/mNm |
| Rotor inertia | 0.008 g·cm² |
| Weight | 1 g |
| Operating temperature range | -20~+65 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
L0609N3M
| Specification | L0609N3M09-490-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 7.8 Ω |
| No-load speed | 49000 rpm |
| No-load current | 50 mA |
| Stall torque | 0.17 mNm |
| Stall current | 385 mA |
| Load torque | 0.05 mNm |
| Load speed | 34590 rpm |
| Load current | 150 mA |
| Max. output power | 0.22 W |
| Max. efficiency | 40.9 % |
| Back-EMF constant | 0.05 mV/rpm |
| Torque constant | 0.51 mNm/A |
| Speed/torque gradient | 288235 rpm/mNm |
| Rotor inertia | 0.008 g·cm² |
| Weight | 1 g |
| Operating temperature range | -20~+65 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
L0609N3M
| Specification | L0609N3M10-435-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 7.7 Ω |
| No-load speed | 43500 rpm |
| No-load current | 65 mA |
| Stall torque | 0.18 mNm |
| Stall current | 390 mA |
| Load torque | 0.05 mNm |
| Load speed | 31280 rpm |
| Load current | 160 mA |
| Max. output power | 0.20 W |
| Max. efficiency | 35.0 % |
| Back-EMF constant | 0.06 mV/rpm |
| Torque constant | 0.55 mNm/A |
| Speed/torque gradient | 244382 rpm/mNm |
| Rotor inertia | 0.008 g·cm² |
| Weight | 1 g |
| Operating temperature range | -20~+65 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
